1990 Yamaha RT180 (RT180A) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

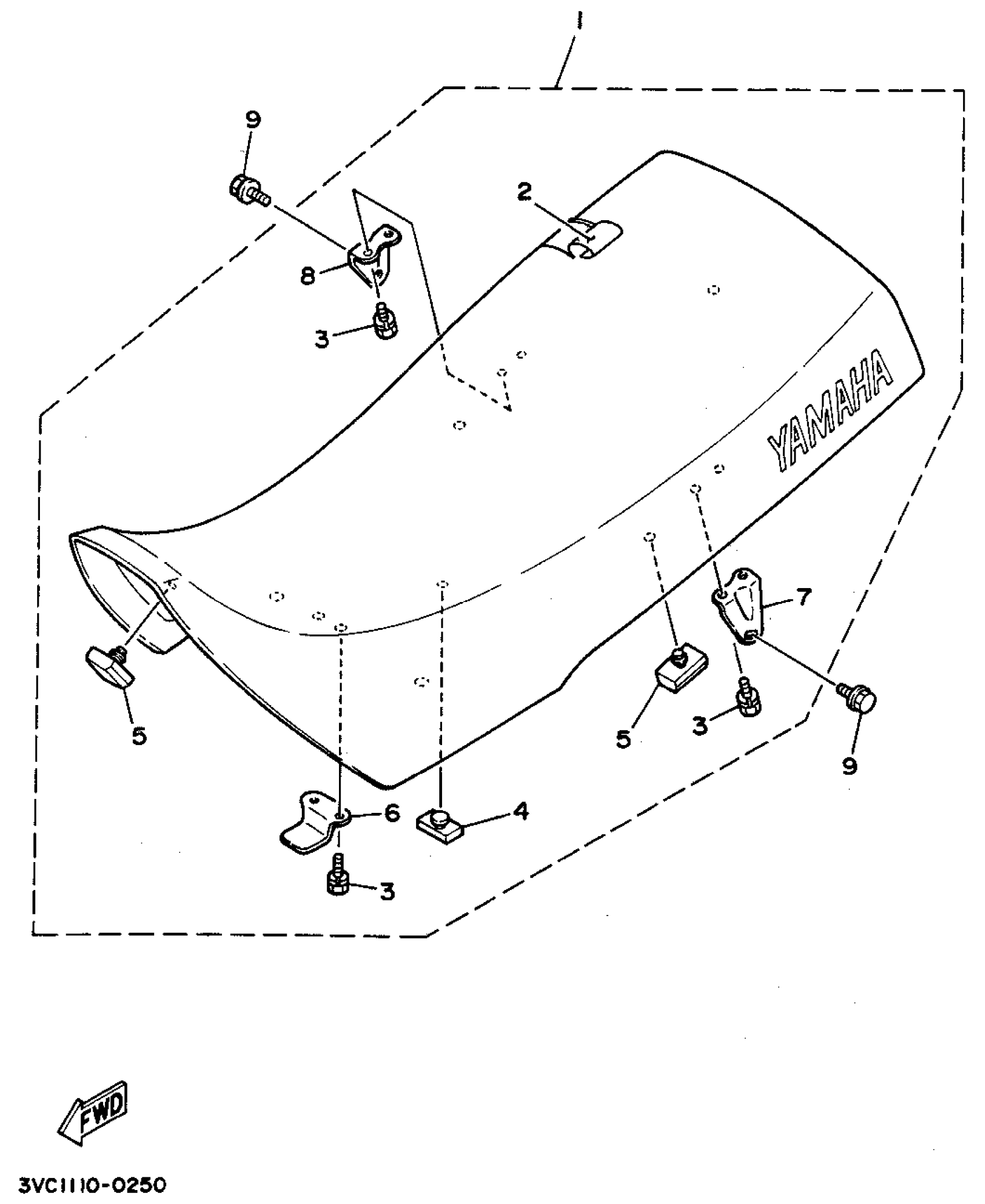

1990 Yamaha RT180 (RT180A) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL SEAT ASY

58W-F4770-10-00

1
Out of stock

2

COVER,DOUBLE SEAT

58W-F4731-11-00

1
Out of stock

3

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

4

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

5

PAD, SEAT

502-29472-00-00

1
Out of stock

6

. BRACKET, SEAT

5L9-F4748-00-00

1
Out of stock

7

BRACKET SEAT

5L9-F4738-10-00

1
Out of stock

8

BRACKET/SEAT

5L9-F4728-10-00

1
Out of stock

9

BOLT, WITH WASHER M8

97506-08512-00

1
Out of stock
