1990 Yamaha RT180 (RT180A) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

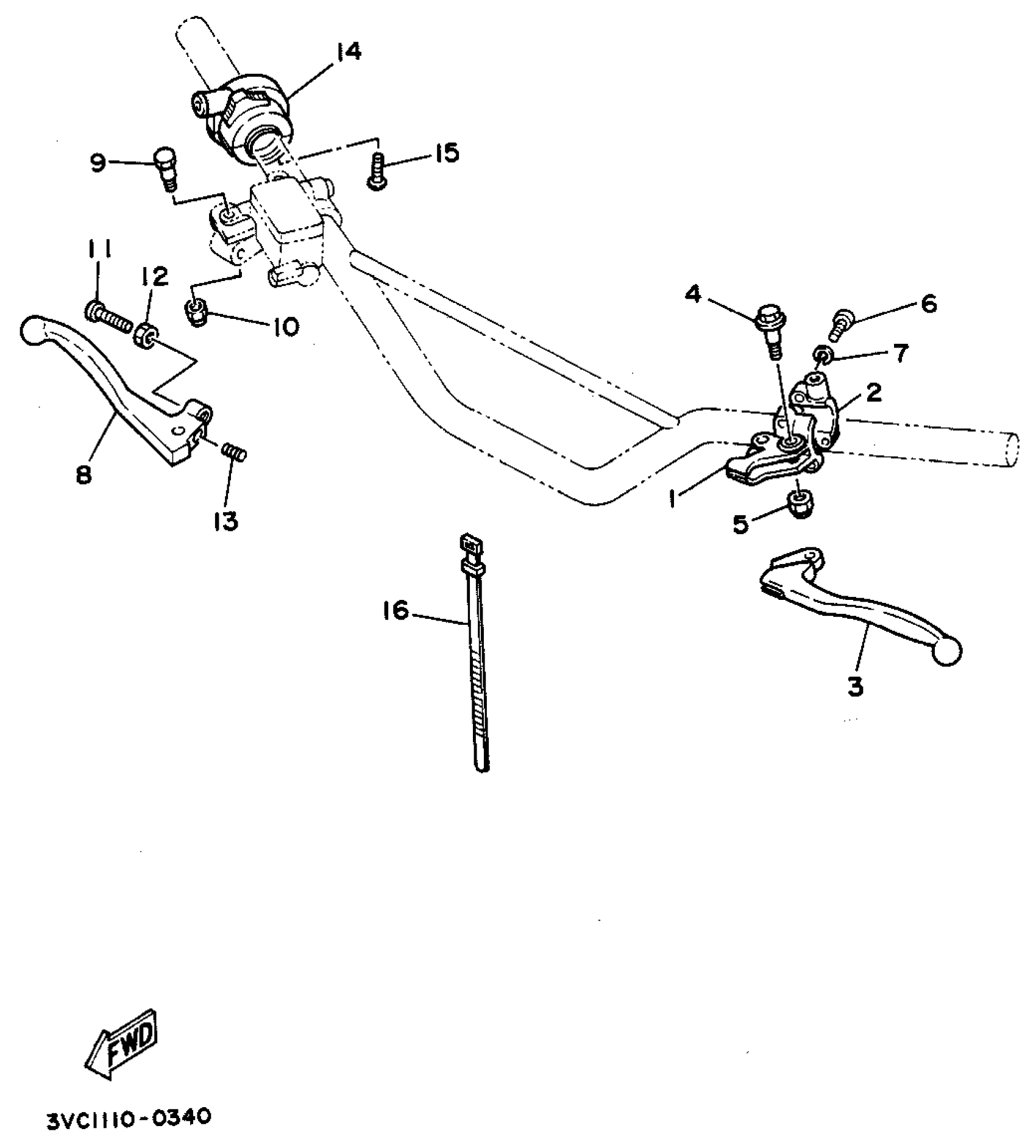

1990 Yamaha RT180 (RT180A) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER LEVER 1

2TY-H2911-00-00

1

$20.14

In stock

2

HOLDER, LEVER 1

2TY-H2915-02-00

1
Out of stock

3

LEVER 1

3FY-83912-02-00

1
Out of stock

4

BOLT, LEVER

5L9-H3945-01-00

1
Out of stock

5

NUT, SELF-LOCKING

90185-06800-00

1
Out of stock

6

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

7

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

8

LEVER 2

2TY-H3922-00-00

1
Out of stock

9

BOLT(48Y)

90109-062A8-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-06800-00

1
Out of stock

11

SCREW, CROSS-RECESSED BINDING

90154-06802-00

1
Out of stock

12

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

13

1

$6.17

In stock

14

SWITCH, HANDLE 1

1R6-83976-01-00

1
Out of stock

15

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

16

BAND, SWITCH CORD

5L9-H3936-00-00

1
Out of stock
