1990 Yamaha RT180 (RT180A) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

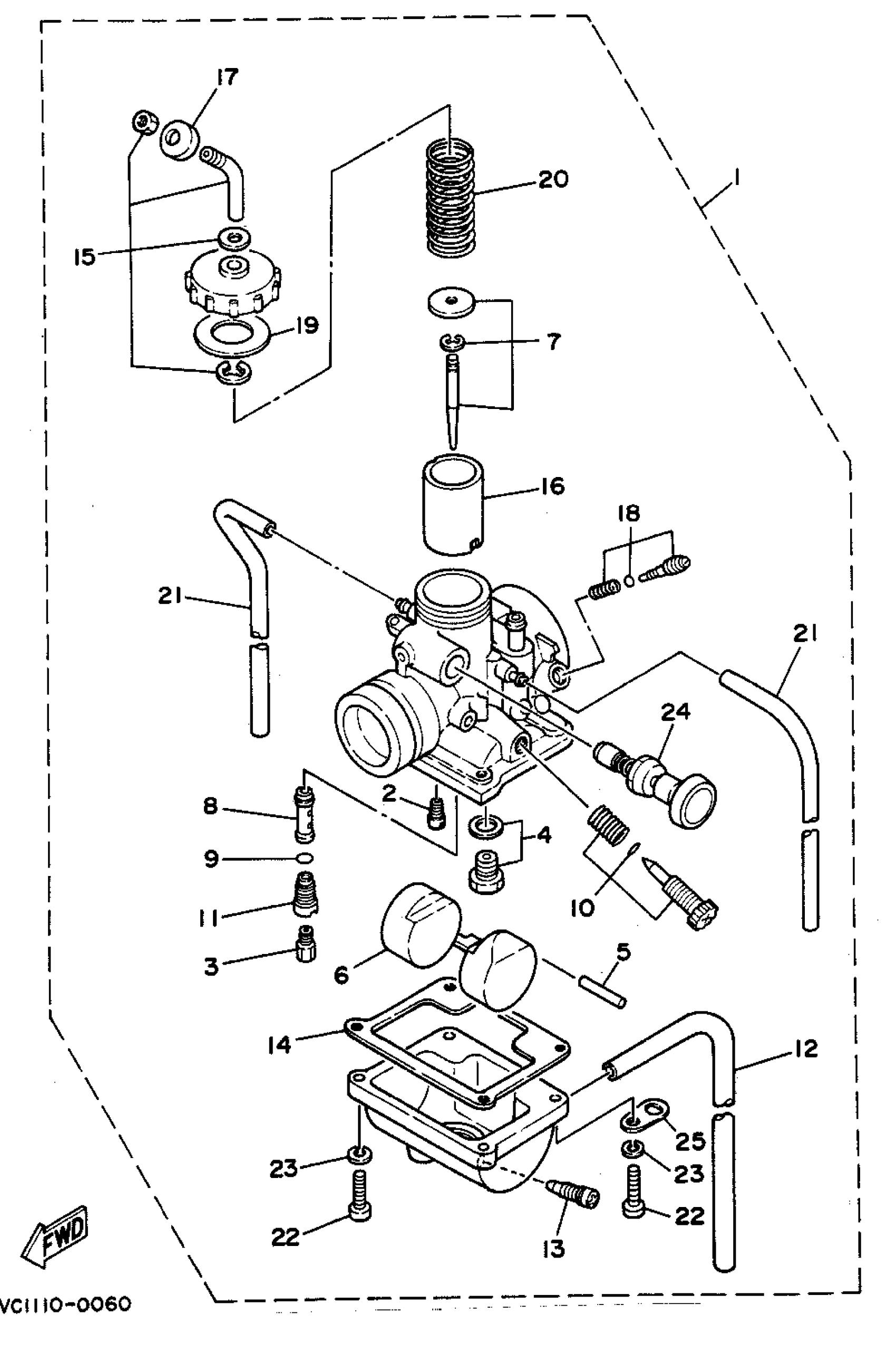

1990 Yamaha RT180 (RT180A) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

3VC-14101-00-00

1
Out of stock

2

JET, PILOT (# 27.5)

260-14142-27-00

1
Out of stock

3

JET, MAIN #130

137-14143-26-A0

1
Out of stock

4

NEEDLE VALVE SET

2MW-14107-25-00

—
Out of stock

5

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

6

FLOAT

314-14185-00-00

1
Out of stock

7

. NEEDLE SET

3VC-1490J-00-00

1
Out of stock

8

. NOZZLE, MAIN

2F5-14141-42-00

1
Out of stock

9

O-RING

214-14147-00-00

1
Out of stock

10

THROTTLE SCREW SET

18G-14103-00-00

1

$24.12

In stock

11

HOLDER

2N4-14145-00-00

—

$25.08

In stock

12

HOSE (L600)

90445-083J5-00

1

$7.65

In stock

13

PLUG, DRAIN

12R-14191-00-00

1

$14.25

In stock

14

GASKET,FLOAT CHAMBER

304-14184-00-00

1
Out of stock

15

CABLE ADJUST SCREW SET

10X-14106-00-00

1

$35.45

In stock

16

. VALVE, THROTTLE 1

314-14112-30-00

1
Out of stock

17

CAP

3X3-14169-00-00

—

$15.20

In stock

18

AIR SCREW SET

10W-14104-00-00

—
Out of stock

19

GASKET

2A6-14126-00-00

—
Out of stock

20

SPRING, THROTTLE VALVE

2V0-14131-00-00

—
Out of stock

21

PIPE

23F-14197-00-00

—

$24.11

In stock

22

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

23

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

24

PLUNGER, STARTER

4U5-14171-00-00

—

$46.46

In stock

25

PLATE

132-14146-00-00

—

$6.65

In stock
