REAR WHEEL

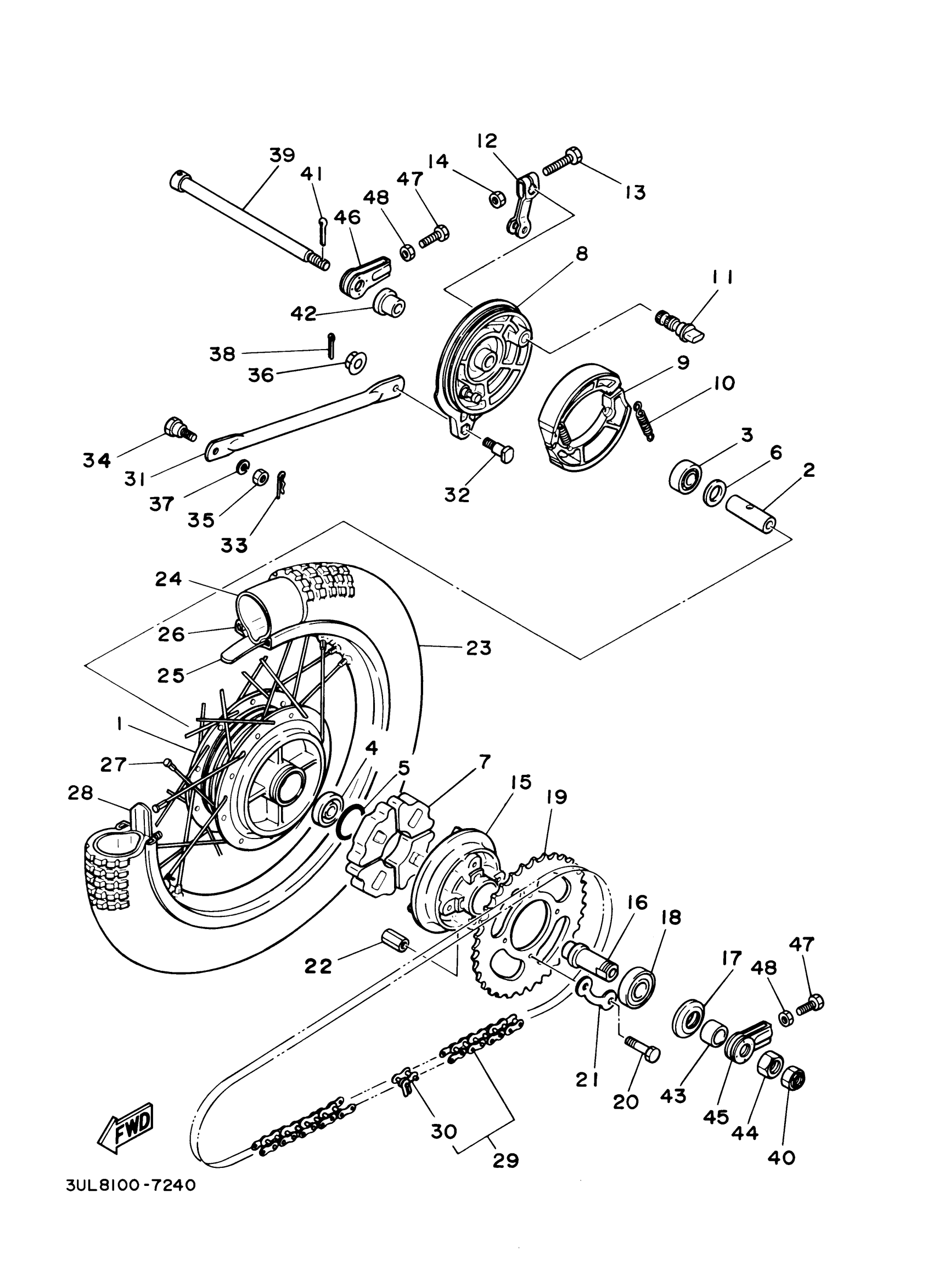

2000 Yamaha RT100 (RT100M) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 2000 Yamaha RT100 (RT100M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
18A-25311-00-33
3
BEARING
93306-30102-00
4
BEARING
93306-30102-00
8
PLATE, BRAKE SHOE
1M3-25321-02-98
12
LEVER, CAMSHAFT
5DV-25355-00-00
15
CLUTCH, HUB
296-25366-01-33
19
SPROCKET, DRIVEN (48T)
2U2-25448-11-00
23
TIRE (3.00-16)
94130-16571-00
24
TUBE (3.00-16)
94230-16075-00
27
SPOKE SET
538-25304-10-00
29
CHAIN, DRIVE
9Y580-52103-00
30
. JOINT, CHAIN
94600-03001-00
31
BAR, TENSION
1T9-25371-00-00
39
AXLE, WHEEL
390-25381-01-00
42
COLLAR 195253830000
90387-12102-00
43
COLLAR 167253860000
90387-18144-00
