2000 Yamaha RT100 (RT100M) Fuel Tank Diagram

← All diagrams

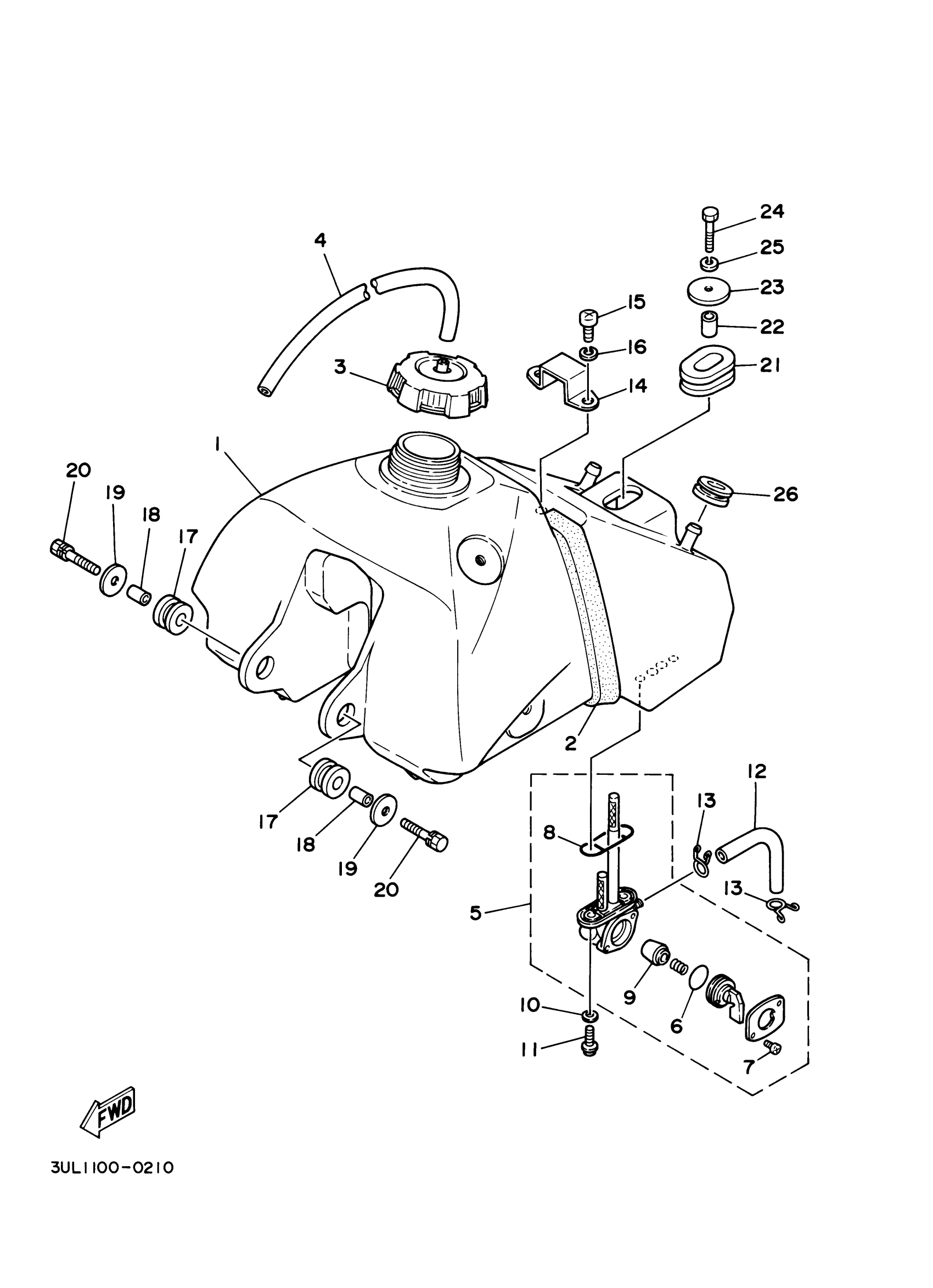

Find the part on the Fuel Tank diagram for your 2000 Yamaha RT100 (RT100M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha RT100 (RT100M) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK COMP.

3UL-24110-00-00

1
Out of stock

2

DAMPER, LOCATING 1

3UL-24181-00-00

1
Out of stock

3

CAP ASSY

2FJ-24610-20-00

1
Out of stock

4

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

5

FUEL COCK ASSY 1

36R-24500-01-00

1

$66.52

In stock

6

SEAL, COCK

3AJ-24534-01-00

1
Out of stock

7

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

8

O-RING

4X8-24512-00-00

1
Out of stock

9

VALVE PACKING

3AC-24523-00-00

1

$11.58

In stock

10

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

11

SCREW 256241430000

90149-06011-00

1

$1.58

In stock

12

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

13

CLIP 101235600

90467-08003-00

1

$6.13

In stock

14

BRACKET, SEAT

3UL-2412F-00-00

1
Out of stock

15

SCREW, PAN

98517-06012-00

1

$3.14

In stock

16

WASHER, SPRING

92907-06100-00

—
Out of stock

17

GROMMET (4V1)

90480-18290-00

—

$7.02

In stock

18

COLLAR (1T2)

90387-07598-00

—

$4.83

In stock

19

WASHER PLATE 137241870000

90201-06072-00

—
Out of stock

20

BOLT, WITH WASHER (24X)

90119-06073-00

—
Out of stock

21

GROMMET(38W)

90480-01400-00

—

$10.06

In stock

22

COLLAR (1T2)

90387-07598-00

—

$4.83

In stock

23

WASHER, PLATE

90201-06090-00

—
Out of stock

24

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

26

GROMMET(3UL)

90480-01531-00

—
Out of stock
