1997 Yamaha RT100 (RT100J) Stand Footrest Diagram

← All diagrams

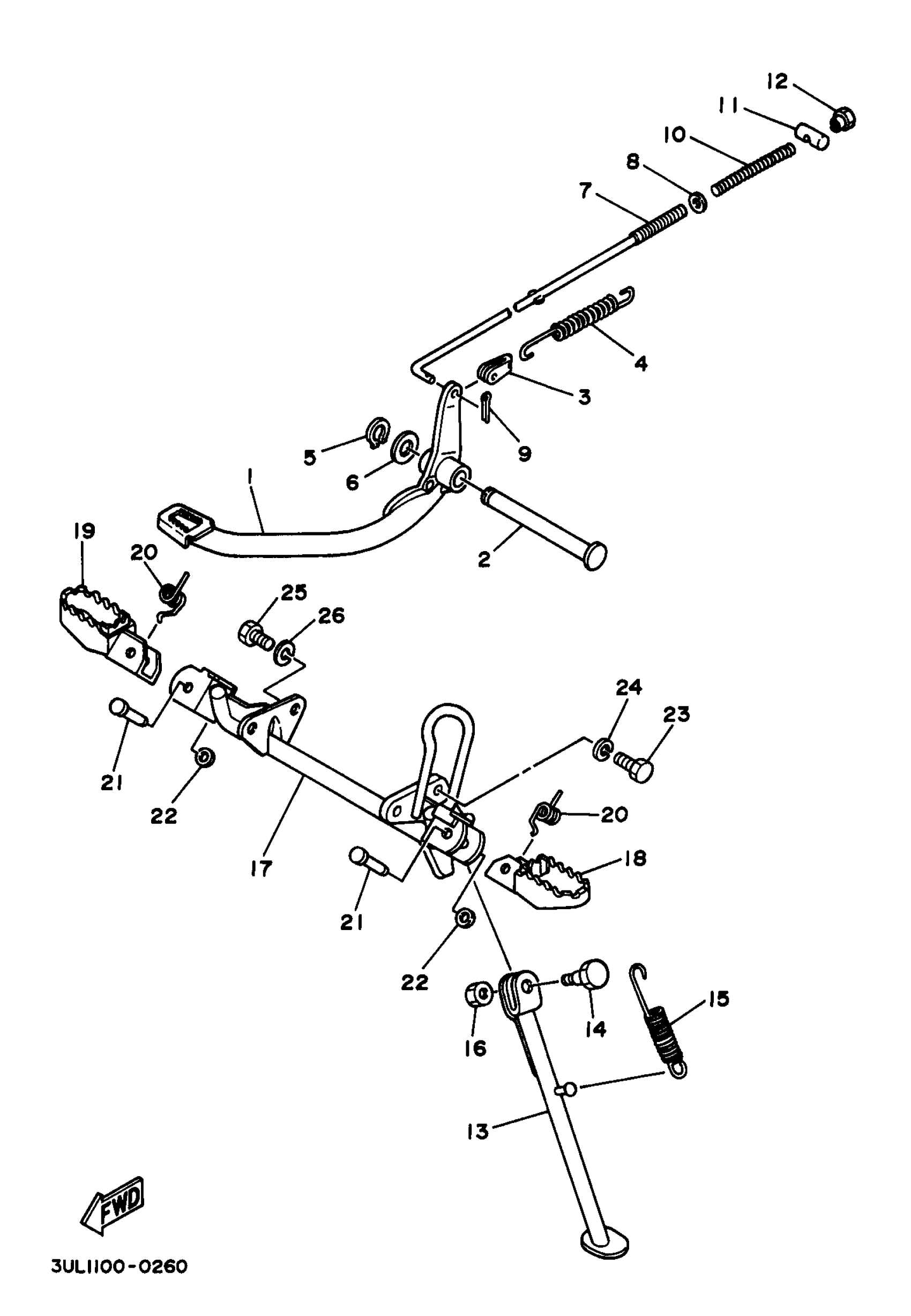

Find the part on the Stand Footrest diagram for your 1997 Yamaha RT100 (RT100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT100 (RT100J) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL,BRAKE

538-27211-01-00

1
Out of stock

2

SHAFT, BRAKE PEDAL

3UL-27212-00-00

1
Out of stock

3

HOOK

1T9-27254-00-00

1
Out of stock

4

SPRING, TENSION

90506-20157-00

1
Out of stock

5

CIRCLIP(13H)

99009-14400-00

1

$2.48

In stock

6

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

7

ROD, BRAKE

1T9-27231-00-00

1
Out of stock

8

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

9

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

10

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

11

PIN 1562723700

90249-12008-00

1

$4.70

In stock

12

NUT (25K)

90179-06411-00

1

$5.10

In stock

13

STAND, SIDE

367-27311-02-R4

1
Out of stock

14

BOLT 137273170000

90109-08031-00

1

$7.52

In stock

15

1

$8.06

In stock

16

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock

17

FOOTREST

1T9-27451-02-R4

1
Out of stock

18

FOOTREST 1

22W-27411-01-90

—
Out of stock

19

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

20

—

$3.26

In stock

21

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

22

—

$6.58

In stock

23

BOLT, HEXAGON

97017-08020-00

—
Out of stock

24

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

25

BOLT, HEXAGON

97017-08016-00

—
Out of stock

26

WASHER(JN5)

92907-08100-00

—

$5.98

In stock
