1997 Yamaha RT100 (RT100J) Handle Switch Lever Diagram

← All diagrams

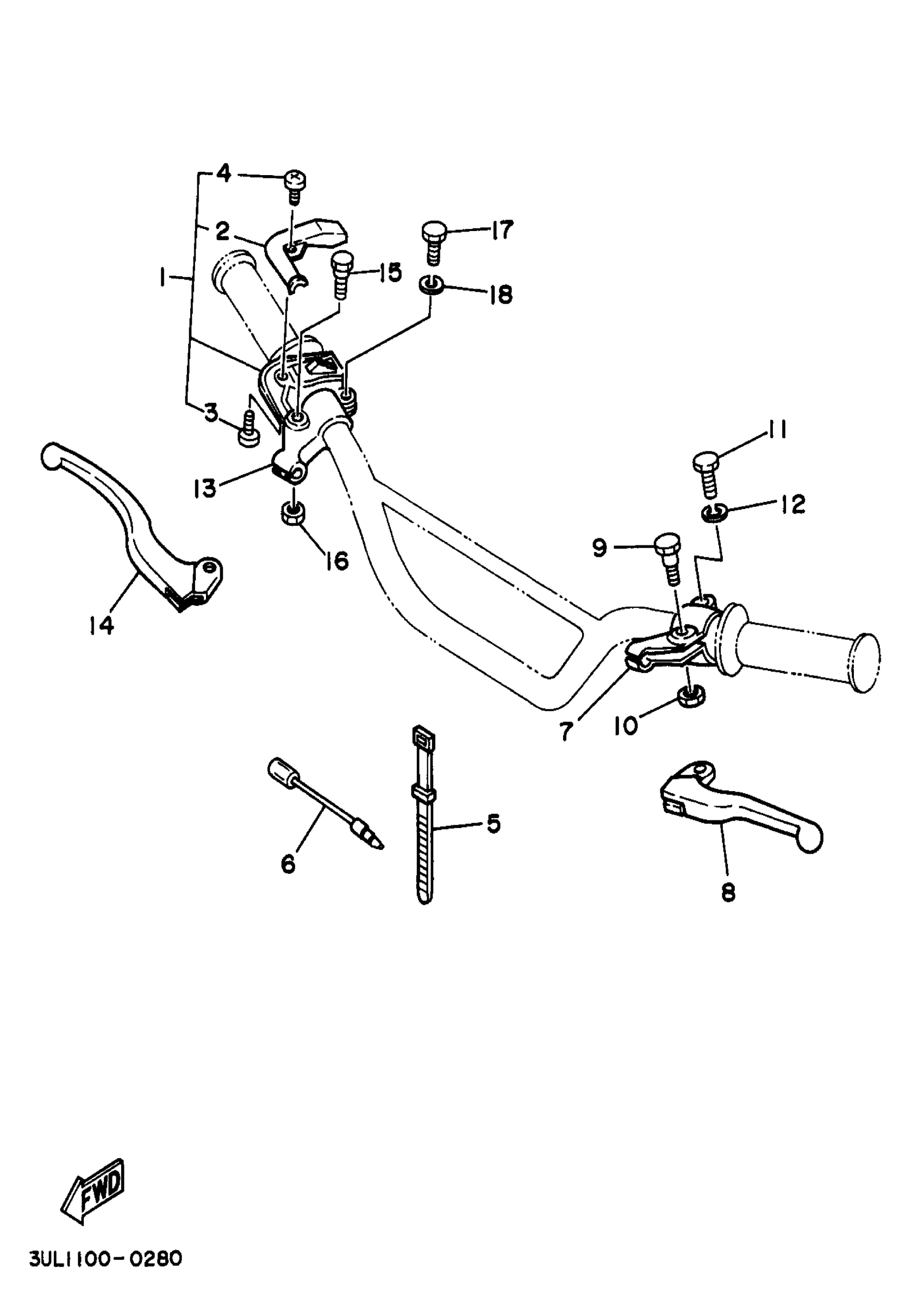

Find the part on the Handle Switch Lever diagram for your 1997 Yamaha RT100 (RT100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT100 (RT100J) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 1

47J-83976-01-00

1
Out of stock

2

. CAP 1

33G-83956-01-00

1
Out of stock

3

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

4

SCREW, BINDING

98907-04008-00

1
Out of stock

5

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

6

WIRE, LEAD

558-82116-00-00

—
Out of stock

7

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

8

LEVER 1

23X-83912-02-00

1

$21.46

In stock

9

BOLT(1FG)

90109-06798-00

1
Out of stock

10

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

11

BOLT, HEXAGON

97007-06022-00

—
Out of stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

14

LEVER R

23X-83922-01-00

1

$21.74

In stock

15

BOLT(1FG)

90109-06798-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

17

BOLT, HEXAGON

97007-06022-00

—
Out of stock

18

WASHER, SPRING

92907-06100-00

1
Out of stock
