1997 Yamaha RT100 (RT100J) Crankshaft Piston Diagram

← All diagrams

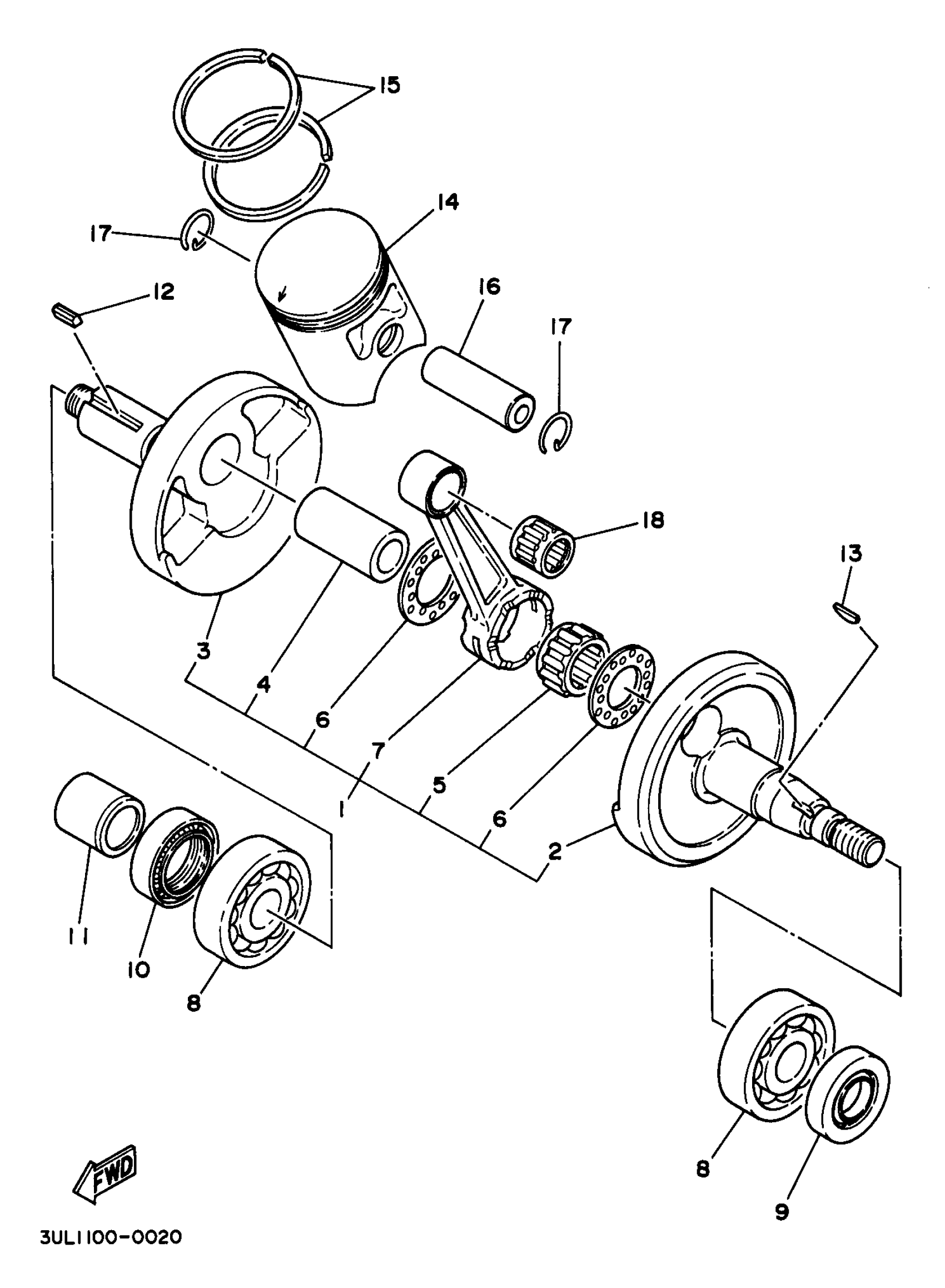

Find the part on the Crankshaft Piston diagram for your 1997 Yamaha RT100 (RT100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT100 (RT100J) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

558-11400-00-00

1
Out of stock

2

CRANK (L.H)

558-11412-00-00

—

$83.04

In stock

3

. CRANK 2

558-11422-00-00

1
Out of stock

4

PIN, CRANK

5E2-11681-00-00

1

$28.66

In stock

5

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—

$39.02

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

ROD, CONNECTING

1M7-11651-00-00

1

$106.31

In stock

8

BEARING (6304YA1-9TC4)

93306-30442-00

1

$62.26

In stock

9

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

10

OIL SEAL (28X40X8-132)

93103-28011-00

1

$12.05

In stock

11

—

$7.49

In stock

12

KEY, STRAIGHT 3531154600

90282-05005-00

1
Out of stock

13

KEY WOODRUFF 146115450000

90280-03017-00

1

$5.78

In stock

14

PISTON (STD)

3UL-11631-00-95

1
Out of stock

14

PISTON (STD)

3UL-11631-00-97

1
Out of stock

14

PISTON (0.25MM O/S)

3UL-11635-00-00

1
Out of stock

14

PISTON (0.50MM O/S)

3UL-11636-00-00

—

$63.94

In stock

14

PISTON (0.75MM O/S)

3UL-11637-00-00

—
Out of stock

14

PISTON (1.00MM O/S)

3UL-11638-00-00

1
Out of stock

15

PISTON RING SET (STD)

3A3-11610-00-00

—

$55.43

In stock

15

PISTON RING SET (0.25MM O/S)

3A3-11610-10-00

1
Out of stock

15

PISTON RING SET (0.50MM O/S)

3A3-11610-20-00

1
Out of stock

15

PISTON RING SET (0.75MM O/S)

3A3-11610-30-00

1
Out of stock

15

PISTON RING SET (1.00MM O/S)

3A3-11610-40-00

1
Out of stock

16

PIN, PISTON

131-11633-00-00

—

$18.28

In stock

17

CIRCLIP 131116340000

93450-15023-00

—

$5.20

In stock

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock

18

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock
