1995 Yamaha RT100 (RT100G) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1995 Yamaha RT100 (RT100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

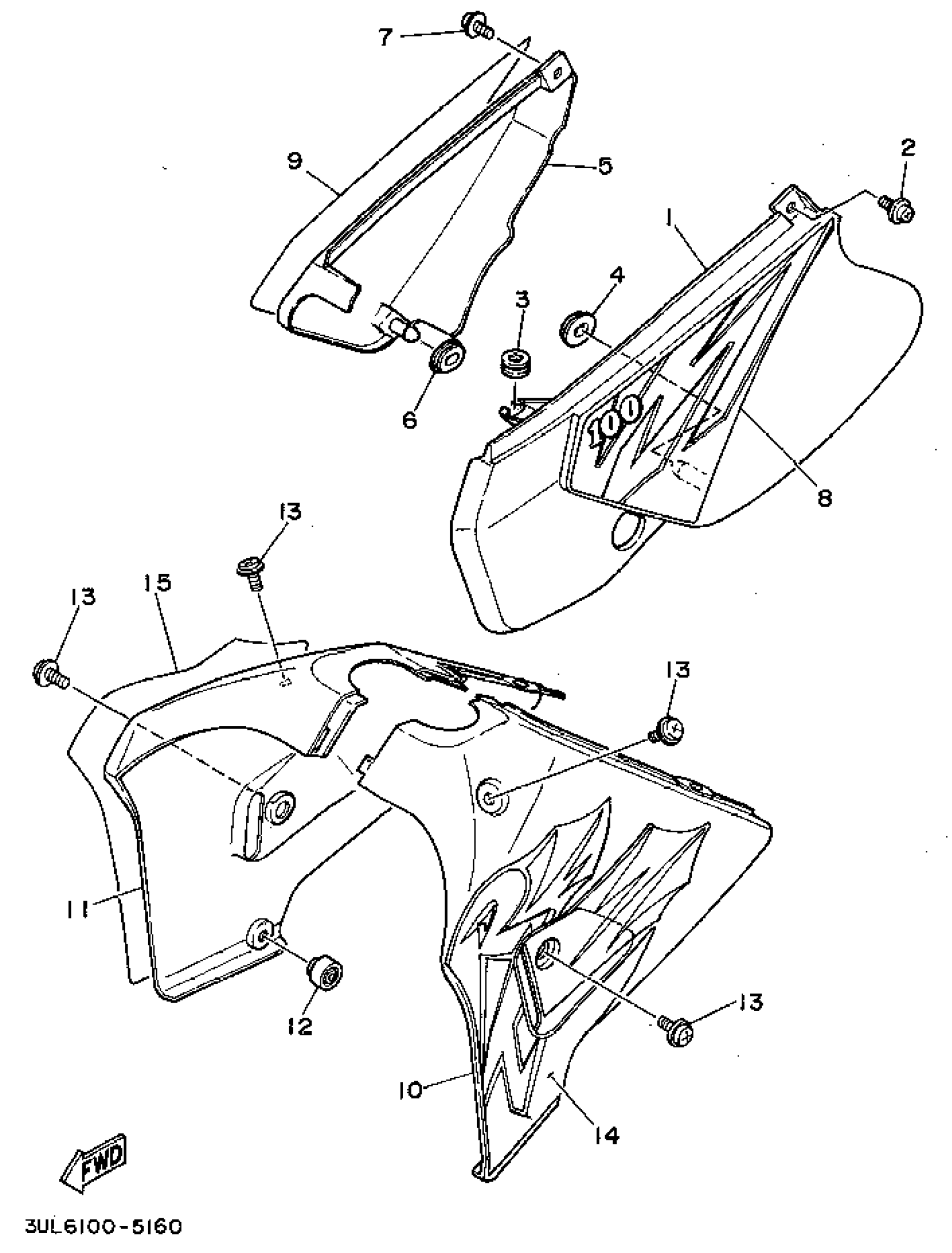

1995 Yamaha RT100 (RT100G) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3UL-21711-10-98

1
Out of stock

2

SCREW, W/WASHER (14T)

90159-06059-00

—

$7.48

In stock

3

GROMMET (10V)

90480-12325-00

1

$6.68

In stock

4

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

5

COVER, SIDE 2

3UL-21721-10-00

1
Out of stock

6

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

7

SCREW, W/WASHER (14T)

90159-06059-00

—

$7.48

In stock

8

GRAPHIC

3UL-2173E-51-00

1
Out of stock

9

GRAPHIC

3UL-2173F-51-00

1
Out of stock

10

SCOOP, AIR 1

3UL-2137W-20-00

1
Out of stock

11

SCOOP, AIR 2

3UL-2137X-20-00

1
Out of stock

12

DAMPER, LOCATING 1

3JD-24181-00-00

1
Out of stock

13

SCREW, WITH WASHER(3BN)

90159-06160-00

—
Out of stock

14

GRAPHIC SET 1

3UL-2173L-20-00

1
Out of stock

15

GRAPHIC SET 2

3UL-2174L-20-00

1
Out of stock
