1993 Yamaha RT100 (RT100E) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

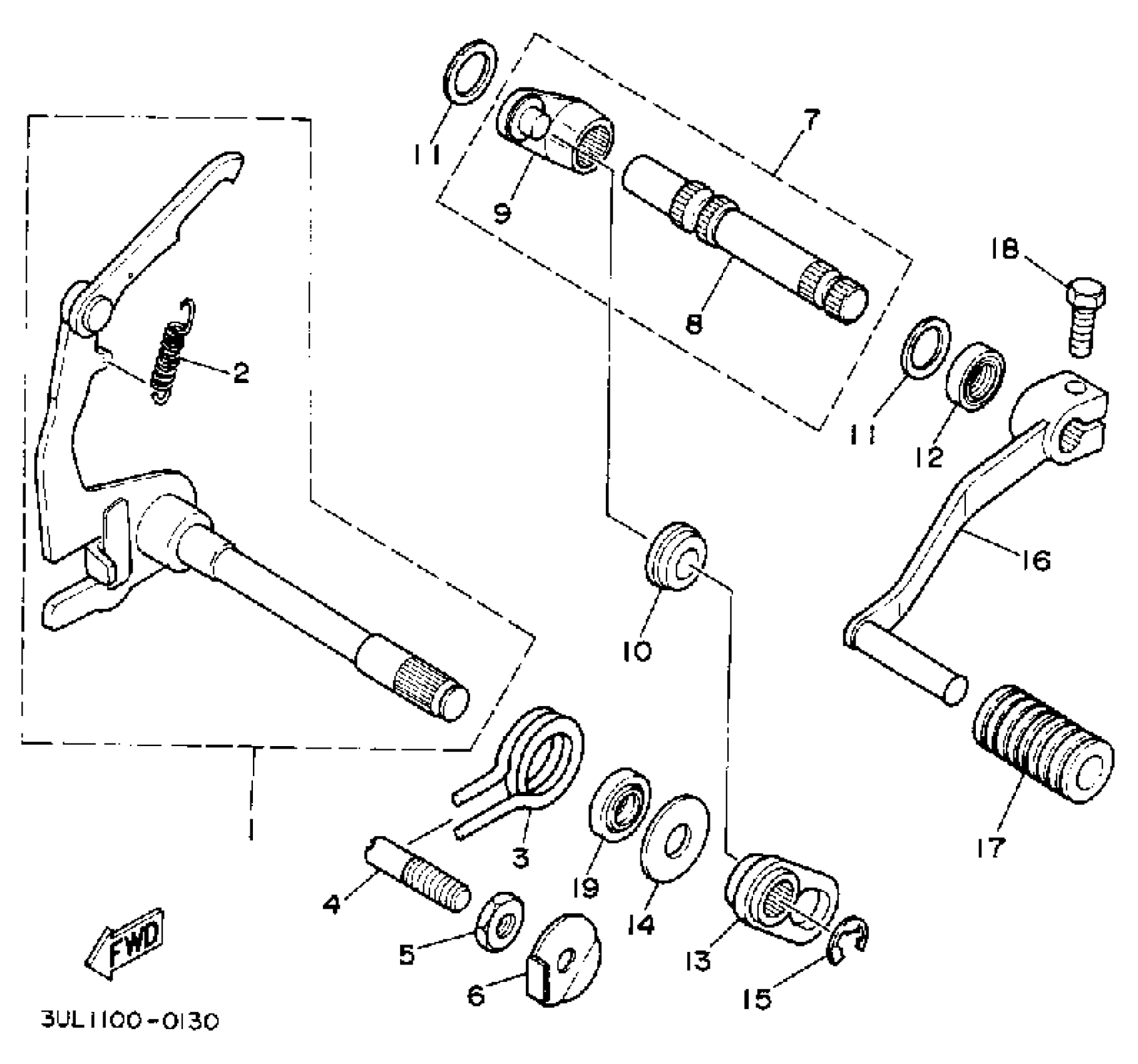

1993 Yamaha RT100 (RT100E) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

558-18101-00-00

1
Out of stock

2

—

$6.68

In stock

3

—

$3.54

In stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT (583)

90170-08193-00

1
Out of stock

6

WASHER LOCK 248181390000

90215-08014-00

1

$5.38

In stock

7

SHIFT SHAFT ASY 2

401-18102-02-00

1
Out of stock

8

SHAFT,SHIFT 2

401-18155-02-00

1
Out of stock

9

LEVER, SHIFT 3

401-18151-00-00

1
Out of stock

10

ROLLER, CHANGE LEVER

401-18178-00-00

1

$17.98

In stock

11

SHIM

401-18334-00-00

1

$4.92

In stock

12

OIL SEAL (12X19X5-401)

93109-12012-00

1

$8.92

In stock

13

LEVER, CHANGE 4

401-18152-01-00

—

$23.78

In stock

14

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

15

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

16

PEDAL, SHIFT

3UL-18111-00-00

1
Out of stock

17

COVER, CHANGE PEDAL

132-18113-01-00

—
Out of stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

19

OIL SEAL

93101-12173-00

—
Out of stock
