1993 Yamaha RT100 (RT100E) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1993 Yamaha RT100 (RT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

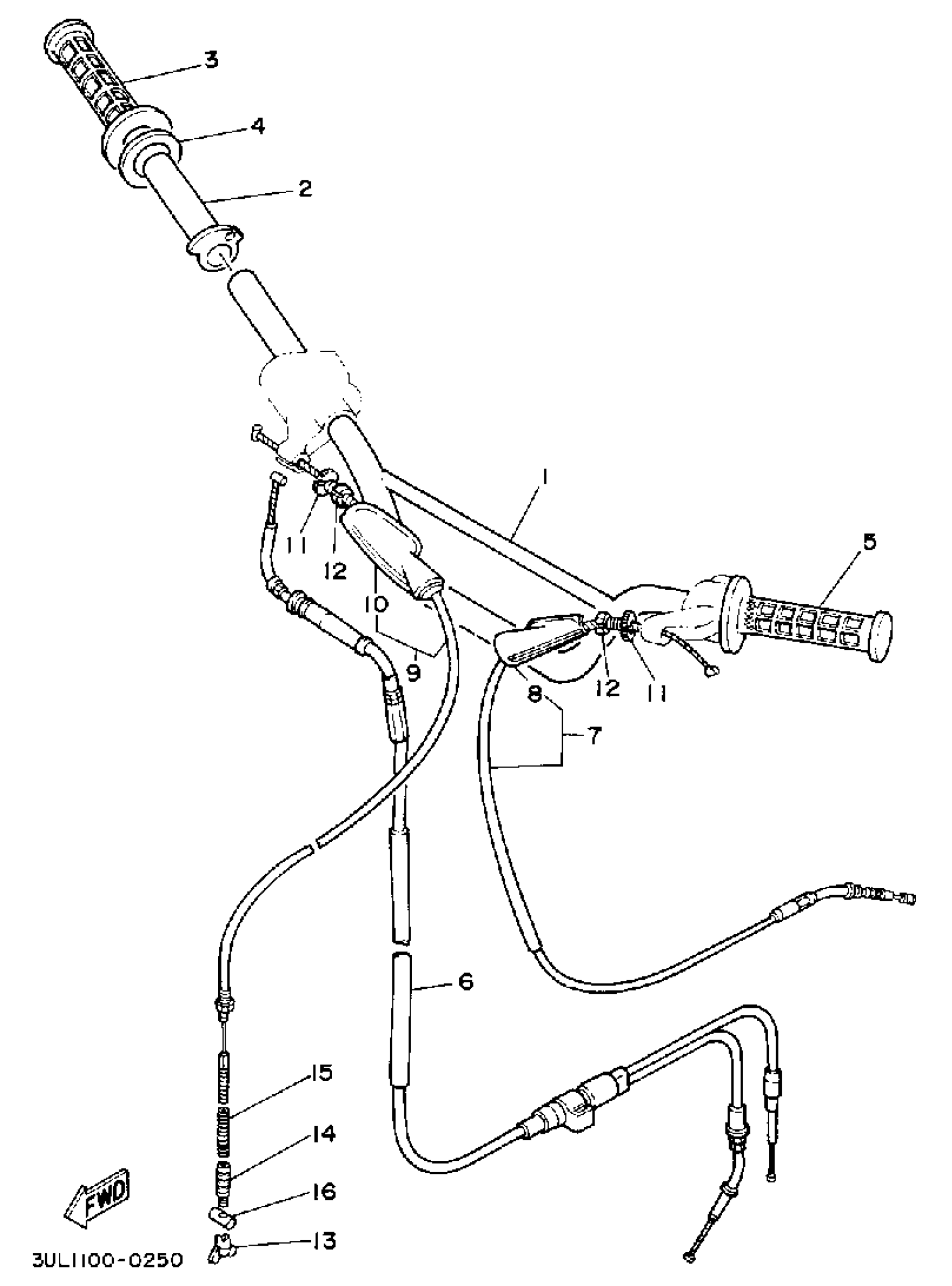

1993 Yamaha RT100 (RT100E) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

17W-26111-01-00

1
Out of stock

2

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

3

GRIP RH

33G-26242-01-00

—
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP

33G-26241-01-00

—
Out of stock

6

THROTTLE CABLE ASSY

3UL-26301-11-00

1
Out of stock

7

CABLE, CLUTCH

3M1-26335-10-00

1

$45.97

In stock

8

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

9

CABLE, BRAKE

3UL-26341-10-00

1
Out of stock

10

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

NUT (25K)

90179-06411-00

1

$5.10

In stock

14

BOOT, CABLE

3M7-26342-00-00

1
Out of stock

15

SPRING, COMPRESSION

90501-09052-00

1
Out of stock

16

PIN 1562723700

90249-12008-00

—

$4.70

In stock
