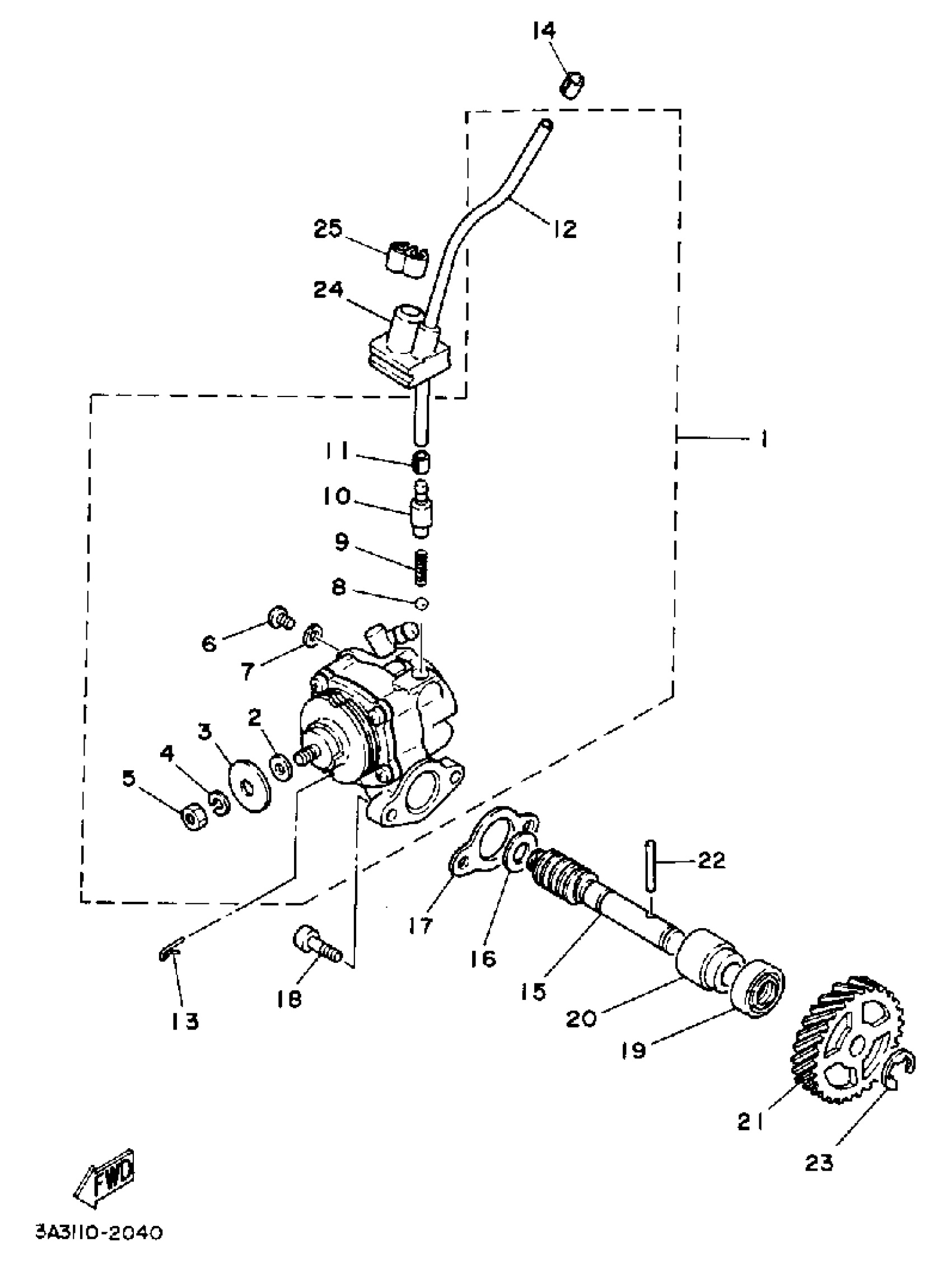

Yamaha RT100D (RT100) 1992 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3UL-13101-00-00

Unavailable

2

SHIM,PLUNGER

137-13137-00-03

$5.27

2

SHIM,PLUNGER

137-13137-00-05

$5.24

2

SHIM,PLUNGER

137-13137-00-10

$6.12

3

PLATE, ADJUSTING

137-13138-01-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

5

NUT, HEXAGON (663)

95380-05600-00

Unavailable

6

SCREW, BIND

98980-04008-00

$3.06

7

GASKET 137131870000

90430-04004-00

$6.53

8

BALL

93505-32002-00

$2.90

9

SPRING, CHECK BALL (451)

90501-02217-00

$5.53

10

NOZZLE

402-13552-00-00

Unavailable

11

CLIP (214-13164-00)

90468-02033-00

$5.27

12

HOSE (L200)

90445-05N13-00

$5.87

13

COVER, ADJUST PULLEY

367-13146-01-00

$5.58

14

CLIP (214-13164-00)

90468-02033-00

$5.27

15

SHAFT, WORM

275-13175-02-00

Unavailable

16

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

$3.75

19

OIL SEAL (10X22X7-137)

93101-10002-00

Unavailable

20

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

21

GEAR, DRIVE

248-13178-00-00

Unavailable

22

PIN,DOWEL (137)

93603-22028-00

Unavailable

23

CIRCLIP(2R6)

99001-08600-00

Unavailable

24

HOLDER OIL PIPE

525-13174-01-00

Unavailable

25

CLIP (867)

90468-15020-00

Unavailable
