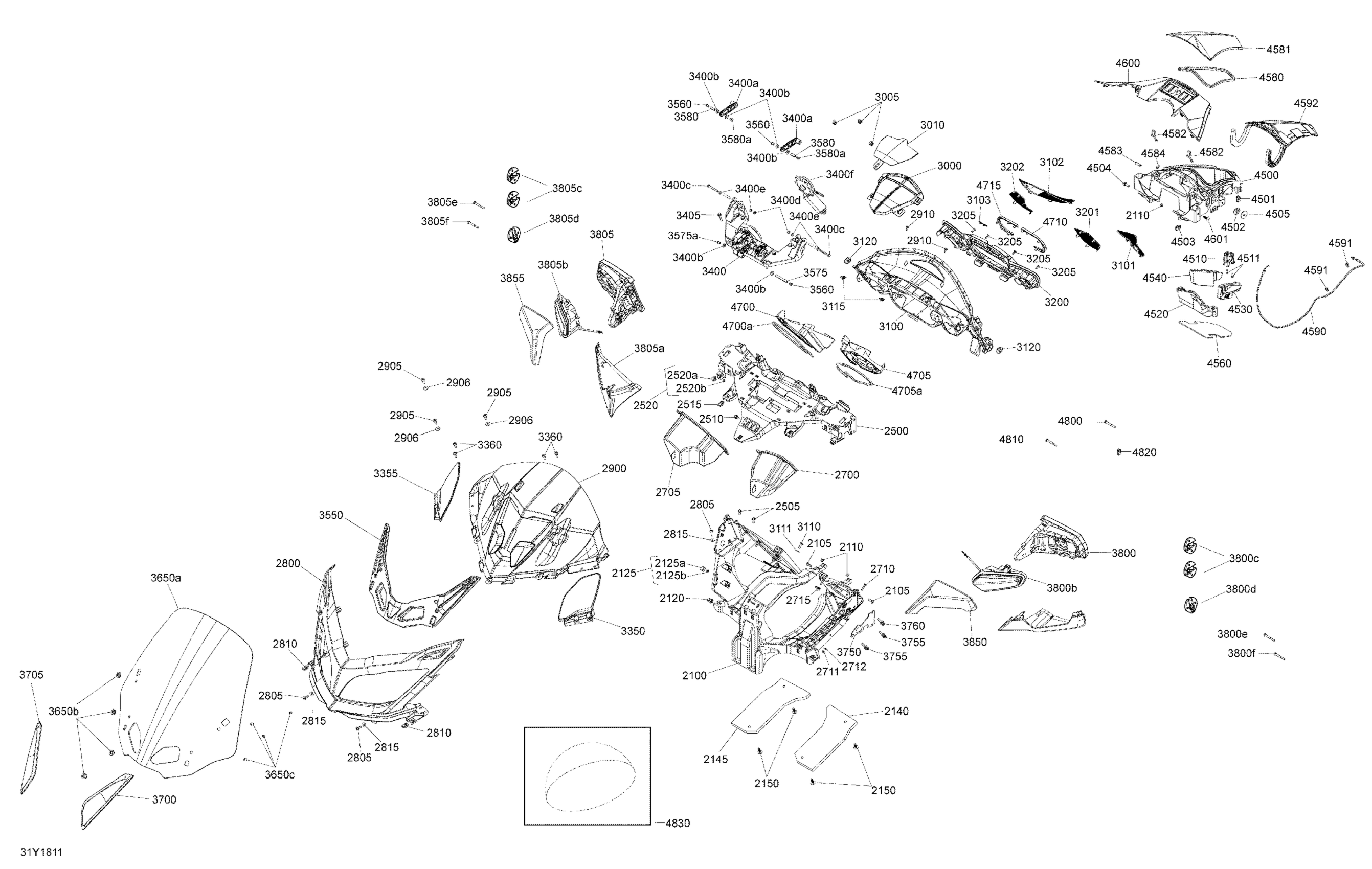

Can-Am RT LTD SE6, 2018 Body And Accessories - Console Diagram

#

Description
Price

2100

Console Support

705002743

$100.00

2105

Torx Screw M6 X 20

250000712

$1.74

2110

Square Nut M6

232862412

$1.18

2120

Panel Nut M6 X 1.0

250100198

$1.73

2125

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

2125a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2125b

Elastic Stop Nut M6, Brass

232561200

$3.51

2140

LH Acoustic Foam

707800349

$18.00

2145

RH Acoustic Foam

707800341

$18.00

2150

Black, Dart

293730006

$0.81

2500

Console Cross-support

705012150

$83.00

2505

Hex. Flange Screw M6 X 16

210261650

$1.22

2510

Hex. Flange Screw M6 X 20

207662044

$1.66

2515

Panel Nut M6 X 1.0

250100198

$1.73

2520

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

2520a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2520b

Elastic Stop Nut M6, Brass

232561200

$3.51

2700

LH Speaker Housing Ass'y

705011996

$21.00

2705

RH Speaker Housing Ass'y

705011997

$19.00

2710

Torx Screw M5 X 25

250000762

$1.74

2711

Hex. Flange Nut M5

250100071

$1.77

2712

Washer M5

250200025

$0.61

2715

Panel Nut M5 X 0.8

250100176

$4.00

2800

Front Console,Vegas White B-313 | Model-White

705009172

$260.00

2800

Oxford Blue Metallic, Front Console | Model Oxford Blue

705012000

$260.00

2800

Jet Black, Front Console | Model Jet Black

705012002

$175.00

2800

Bare, Front Console | Ivory Model

705009167

$120.00

2800

Asphalt Gray, Front Console | Grey Model

708400159

$260.00

2805

Torx Screw M6 X 20

250000722

$1.34

2810

Panel Nut M6 X 1.0

250100198

$1.73

2815

Flat washer M6

250200164

$0.83

2900

Upper Console

705006186

$180.00

2905

Torx Screw M6 X 20

250000722

$1.34

2906

Flat washer M6

250200164

$0.83

2910

Torx Screw M5 X 14

250000742

$1.20

3000

Guide Chart Support

705002746

$28.00

3005

Edge Clip

517302785

$0.70

3010

Guide Chart

705009360

$28.00

3100

Dashboard

705006656

$115.00

3101

LH Lower Speaker Grille

705011416

$14.00

3102

RH Lower Speaker Grille

705011417

$15.00

3103

BRP AUDIO LOGO - Call your local BRP dealership

708400308

Unavailable

3110

Torx Screw M6 X 20

250000722

$1.34

3111

Flat washer M6

250200164

$0.83

3115

Panel Nut M5 X 0.8

250100176

$4.00

3120

Oval Washer

705000321

$4.64

3200

Dashboard Bezel

705011418

$50.00

3201

LH Upper Speaker Grille

705011603

$5.00

3202

RH Upper Speaker Grille

705011605

$5.00

3205

Torx Screw M5 X 14

250000742

$1.20

3350

LH Upper Air Deflector

705002841

$46.00

3355

RH Upper Air Deflector

705002842

$46.00

3360

Torx Screw M6 X 20

250000712

$1.74

3400

Motor Support Ass'y

705011453

$760.00

3400a

Rear Arm Ass'y

219800432

$84.00

3400b

Sleeve

705003267

$9.00

3400c

Hex. Screw M6 X 50

207065060

$1.85

3400d

Elastic Stop Nut M6, Brass

232561200

$3.51

3400e

Stainless Flat Washer M6

234061600

$0.25

3400f

Windshield Motor

278002579

$184.57

3405

Hex. Flange Screw M6 X 35

207663544

$0.74

3550

Carbon Black, Windshield Support

708400223

$215.00

3560

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3575

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

3575a

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3580

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

3580a

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3650a

WINDSHIELD - Call your local BRP dealership

219400415

Unavailable

3650b

Windshield Grommet

705003756

$6.00

3650c

Sleeve

705005756

$13.00

3700

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

3700

TRIM_WINDSHIELD LH B-322 - Call your local BRP dealership | Model with Package SPE

708400164

Unavailable

3700

Jet Black, Windshield Cap | Option 10TH

708400274

$92.00

3705

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

3705

TRIM_WINDSHIELD RH B-322 - Call your local BRP dealership | Model with Package SPE

708400165

Unavailable

3705

Jet Black, Windshield Cap | Option 10TH

708400275

$92.00

3750

Console Support Plate

705003779

$28.00

3755

Spherical Head Stud

705004322

$17.00

3760

Spherical Head Stud

705004323

$17.00

3800

LH Mirror Assembly | Includes 1 to 9

708400146

$307.00

3800

LH Mirror, Dark | All Except Option Chrome

708400304

Unavailable

3800a

LH Lower Mirror Shell

705003148

$145.00

3800b

LH Front Flasher Unit

710001510

$164.00

3800b

LH Front Flasher Unit

710006197

$164.00

3800c

Housing with Spring | Includes 3 to 5

219800156

$22.00

3800d

Housing with Spring

219800158

$11.00

3800e

Screw

219800118

$6.00

3800f

Screw 2.9 X 12.5

219800157

$7.00

3805

RH Mirror Assembly | Includes 10 to 18

708400147

$307.00

3805

RH Mirror, Dark | All Except Option Chrome

708400305

$307.00

3805a

RH Lower Mirror Shell

705003159

$145.00

3805b

RH Front Flasher Unit

710001511

$164.00

3805b

RH Front Flasher Unit

710006198

$164.00

3805c

Housing with Spring | Includes 3 to 5

219800156

$22.00

3805d

Housing with Spring

219800158

$11.00

3805e

Screw

219800118

$6.00

3805f

Screw 2.9 X 12.5

219800157

$7.00

3850

LH Upper Mirror Shell, Chrome | Model-RT LTD

705007399

$120.00

3850

Carbon Black, LH Mirror Shell | Model with Package SPE

705008716

$140.00

3850

Jet Black, Mirror Shell | Option 10TH

705012433

$145.00

3855

RH Upper Mirror Shell, Chrome | Model-RT LTD

705007400

$120.00

3855

Carbon Black, RH Mirror Shell | Model with Package SPE

705008717

$140.00

3855

Jet Black, Mirror Shell | Option 10TH

705012434

$145.00

4500

Glove Box

705002726

$80.00

4501

Panel Nut M6 X 1.0

250100198

$1.73

4502

Oval Washer

705000321

$4.64

4503

Panel Nut M6 X 1.0

250100198

$1.73

4504

Hex. Flange Screw M6 X 20

207662044

$1.66

4505

Rubber Washer

705007085

$2.00

4510

Push Latch

705007380

$63.00

4511

Flange Torx Screw K40 X 16

250000287

$1.74

4520

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

4530

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

4540

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

4560

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

4580

NEOPRENE SEAL, METER - Call your local BRP dealership

219800143

Unavailable

4581

Glove Box Cover, Vegas White B-313 | Model-White

705006973

$170.00

4581

Bare, Glove Box Door | Ivory Model

705006885

$77.00

4581

Asphalt Gray, Glove Box Cover | Grey Model

708400162

$170.00

4581

Oxford Blue Metallic, Glove Box Door | Model Oxford Blue

708400240

$170.00

4581

Drilled Jet Black, Gloves Box Door | Model Jet Black

708400241

$92.00

4582

Glove Box Spring

705003748

$26.00

4583

Retainer Pin

705003295

$18.00

4584

Circlip

705600272

$7.69

4585

Logo 10th RT | Option 10TH

705012299

$51.00

4590

Glove Box Cable

705007381

$25.00

4591

Tie Wrap 142 mm

293750002

$0.88

4592

Door Box

705009361

$170.00

4600

Center Panel

705004461

$39.00

4601

Tuflok Plastic Rivet

293150230

$1.21

4700

RH Speaker Support Ass'y | Includes 4700 to 4700a

708400242

$14.00

4700a

Seal 1000Mm Long

219704373

$8.29

4705

LH Speaker Support Ass'y | Includes 4705 to 4705a

708400243

$13.00

4705a

Seal 1000Mm Long

219704373

$8.29

4710

Carbon Black, LH Trim Gauge

705012356

$45.00

4710

LH TRIM LIQUID GOLD - Call your local BRP dealership | Model Jet Black

705012358

Unavailable

4710

Hyper Silver, LH Trim Gauge

705012755

$50.00

4715

Carbon Black, RH Trim Gauge

705012357

$45.00

4715

RH TRIM LIQUID GOLD - Call your local BRP dealership | Model Jet Black

705012359

Unavailable

4715

Hyper Silver, RH Trim Gauge

705012756

$50.00

4800

Torx Truss Screw M6 X 20

250000350

$4.39

4810

Torx Screw M5 X 25

250000455

$3.00

4820

Panel Nut M5 X 0.8

250100176

$4.00

4830

Windshield Rubber Bumper

705005666

$2.00
