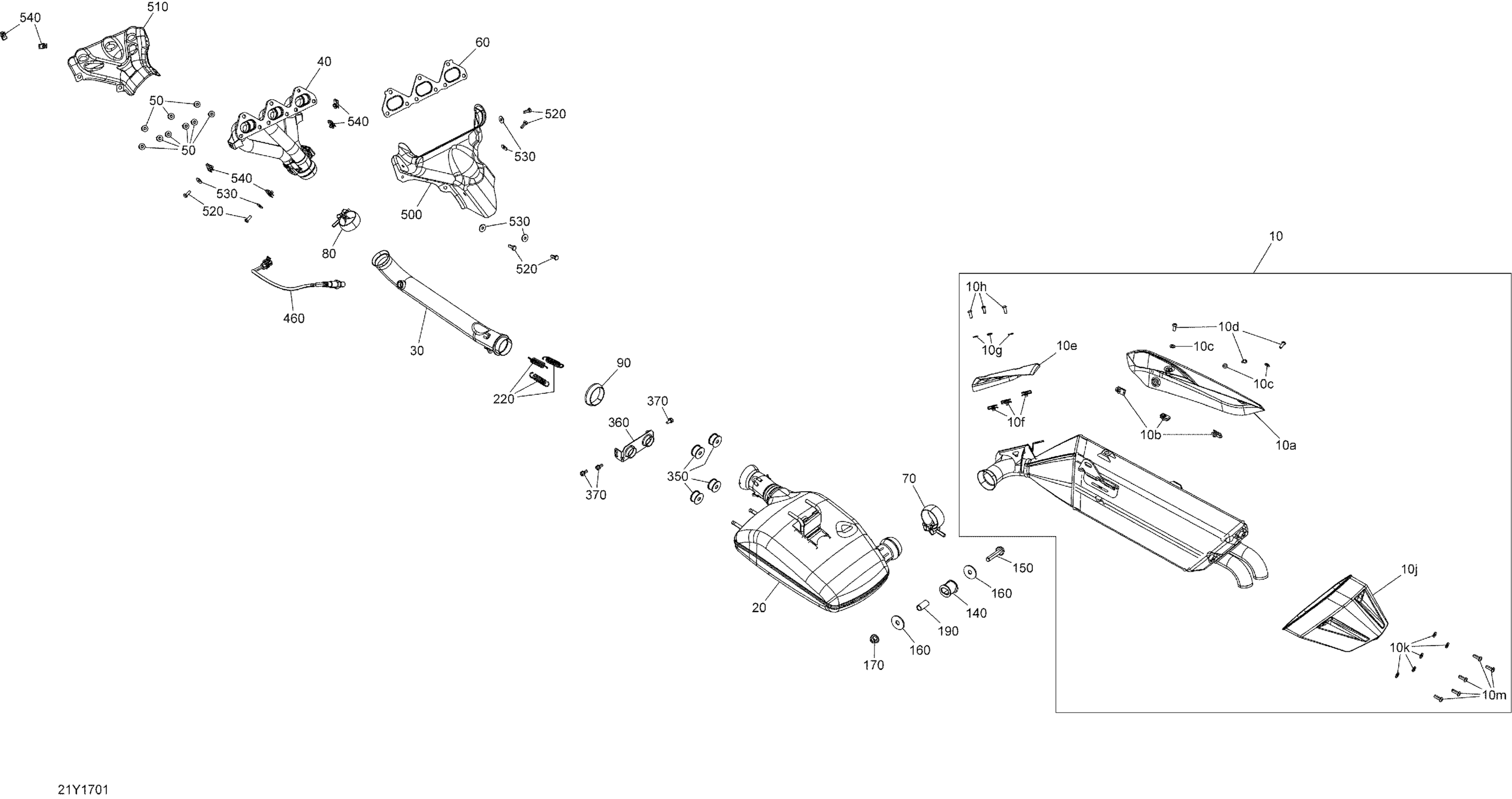

Can-Am RT, 2017 Exhaust System - All Models Diagram

#

Description
Price

10>10m

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT STD

219800438

Unavailable

10>10m

Carbon Black, Secondary Mufller | Includes 10 to 10p

219800492

$954.00

10>10m

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT LTD

219800440

Unavailable

10a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

10a

Crystal Silver Heat Shield

707601382

$76.00

10a

Chrome Heat Shield | Model-RT LTD

707601383

$122.00

10b

Panel Nut M6 X 1.0

250100198

Unavailable

10c

Stainless Flat Washer M6

234061600

Unavailable

10c

Stainless Flat Washer M6

234061600

Unavailable

10c

Black, Flat Washer 6 mm

234061670

$1.00

10d

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10d

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10d

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

10e

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

10e

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

10e

Crystal Silver Heat Shield

707601132

$25.00

10f

Panel Nut M6 X 1.0

250100198

Unavailable

10g

Stainless Flat Washer M6

234061600

Unavailable

10g

Black, Flat Washer 6 mm

234061670

$1.00

10g

Black, Flat Washer 6 mm

234061670

$1.00

10h

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10h

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

10h

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

10j

Crystal Silver Muffler End Cap

707600867

$82.00

10j

Chrome Muffler End Cap | Model-RT LTD

707600950

$175.00

10j

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

10k

Stainless Flat Washer M6

234061600

Unavailable

10k

Stainless Flat Washer M6

234061600

Unavailable

10k

Black, Flat Washer 6 mm

234061670

$1.00

10m

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10m

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10m

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

20

Primary Muffler

707601881

$1,229.00

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

40

Exhaust Manifold | Includes 40 to 40j

707601922

$770.00

50

Hex. Flange Nut M8

233081416

Unavailable

60

Exhaust Seal

707601857

$19.00

70

Exhaust Clamp

707600980

Unavailable

80

Exhaust Clamp

707600980

Unavailable

90

Exhaust Gasket

514054174

Unavailable

140

Anti-Vibration Rubber

293830162

$13.00

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

Unavailable

160

Washer 10 mm

506150000

Unavailable

170

Hex. Flange Nut M10

233101600

Unavailable

190

Bushing | Includes 240d to 240d1

503189282

Unavailable

220

Spring

415107100

Unavailable

350

Anti-Vibration Rubber

707600702

Unavailable

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hex. Flange Screw M6 X 12

210261250

Unavailable

460

Oxygen Sensor

707600872

Unavailable

500

Heat Shield interior

707603641

$54.00

510

Heat Shield Exterior

707603642

$54.00

520

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

530

Flat Washer M6, Stainless

234062600

Unavailable

540

Panel Nut M6 X 1.0

250100198

Unavailable
