2007 Yamaha Venture (RST90W) Ski Diagram

← All diagrams

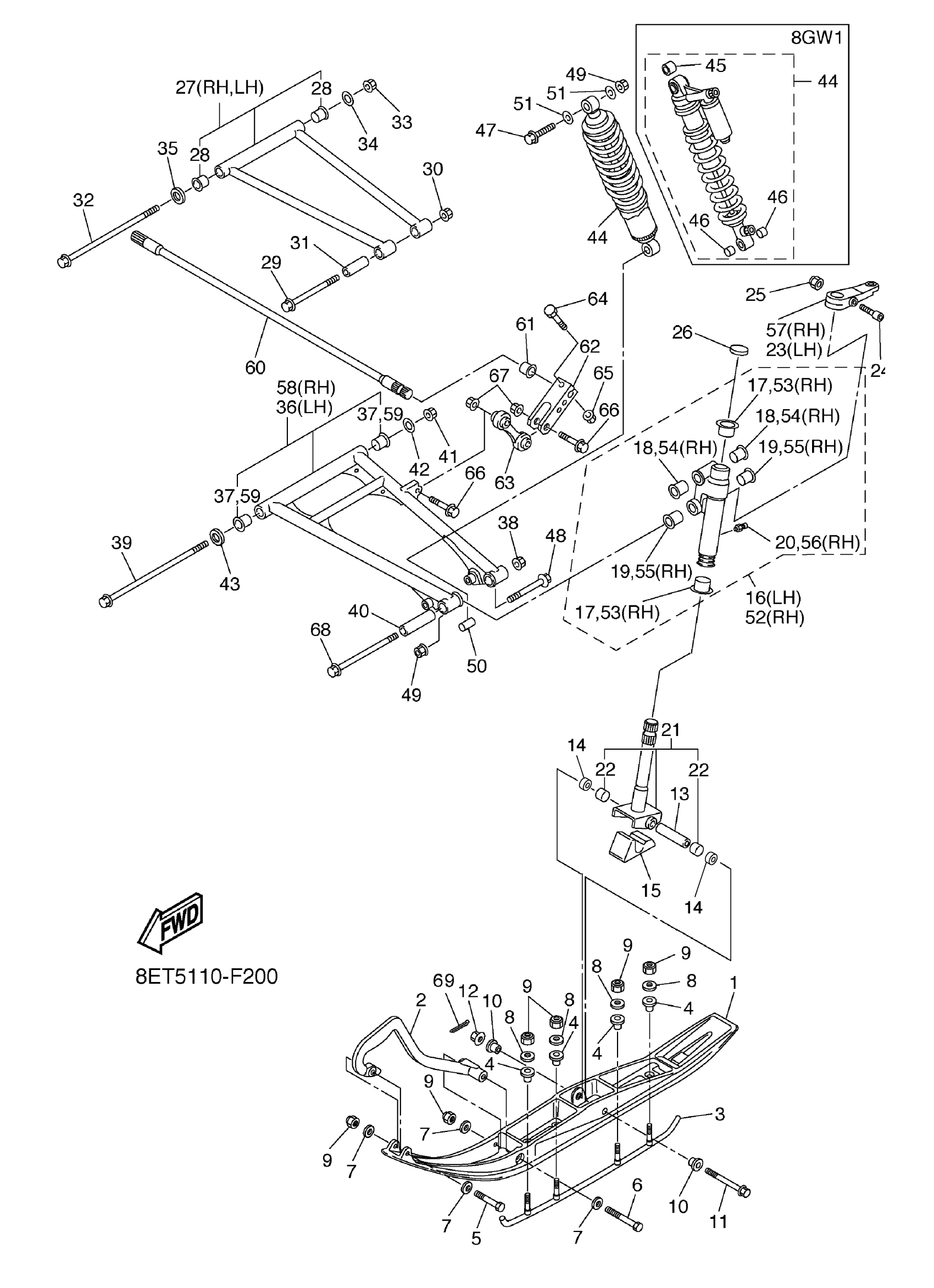

Find the part on the Ski diagram for your 2007 Yamaha Venture (RST90W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Venture (RST90W) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8ES-23711-00-BK

1
Out of stock

1

SKI 1, BLACK

8FE-23711-00-BK

1
Out of stock

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

1
Out of stock

3

SKI RUNNER KIT

SMA-F3731-EK-00

1
Out of stock

3

RUNNER

8EN-23731-00-XX

1
Out of stock

4

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

5

BOLT, HEXAGON

97017-08055-00

1
Out of stock

6

BOLT, HEXAGON

97027-08100-00

1
Out of stock

7

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

8

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

9

NUT, NYLON

95717-08300-00

1
Out of stock

10

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

11

BOLT, FLANGE

90105-10070-00

1
Out of stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

13

COLLAR

90387-1012H-00

1
Out of stock

14

COLLAR

90387-10029-00

1
Out of stock

15

STOPPER 1

8CR-23743-10-00

—
Out of stock

16

STEERING KNUCKLE ASSY (LEFT)

8ES-23501-10-00

—
Out of stock

17

BUSH, SOLID

90381-25115-00

—
Out of stock

18

BUSH, SOLID

90381-15N50-00

—
Out of stock

19

BUSH, SOLID

90381-18N51-00

—
Out of stock

20

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

21

COLUMN, SKI ASSY

8ES-23803-00-00

—
Out of stock

22

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

23

ARM, OUTSIDE 1

8FA-23851-00-00

—
Out of stock

24

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

—
Out of stock

25

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

26

CAP, CASE

3YK-22472-40-00

—
Out of stock

27

FRONT UPPER ARM COMP.

8JA-23540-20-00

—
Out of stock

27

FRONT UPPER ARM COMP.

8JA-23540-40-00

—
Out of stock

28

BUSH, SOLID

90381-15N50-00

—
Out of stock

29

BOLT, FLANGE

90105-10N51-00

—
Out of stock

30

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

31

COLLAR

90387-10099-00

—
Out of stock

32

BOLT, FLANGE

90105-10N54-00

—
Out of stock

33

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

34

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

35

WASHER

90209-15N50-00

—
Out of stock

36

FRONT LOWER ARM COMP. (LEFT)

8JA-23570-20-00

—
Out of stock

36

FRONT LOWER ARM COMP. (LEFT)

8JA-23570-40-00

—
Out of stock

37

BUSH, SOLID

90381-16N51-00

—
Out of stock

38

NUT, U FLANGE

95607-12200-00

—
Out of stock

39

BOLT, FLANGE

90105-10N55-00

—
Out of stock

40

COLLAR

90387-12N54-00

—
Out of stock

41

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

42

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

43

WASHER

90209-15N50-00

—
Out of stock

44

ABSORBER ASSY 1

8ET-2376A-10-00

—
Out of stock

44

ABSORBER ASSY 1

8GW-2376A-00-00

—
Out of stock

45

DAMPER, BUSH B

8FA-2331R-00-00

—
Out of stock

46

BUSH, BIMETAL FORMED

90384-15N51-00

—
Out of stock

47

BOLT, WASHER BASED (4K0)

90105-10169-00

—
Out of stock

48

BOLT, WASHER BASED(59V)

90105-10392-00

—
Out of stock

49

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

50

COLLAR

90387-10N59-00

—
Out of stock

51

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

52

STEERING KNUCKLE ASSY (RIGHT)

8ES-23502-10-00

—
Out of stock

53

BUSH, SOLID

90381-25115-00

—
Out of stock

54

BUSH, SOLID

90381-15N50-00

—
Out of stock

55

BUSH, SOLID

90381-18N51-00

—
Out of stock

56

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

57

ARM, OUTSIDE 2

8FA-23852-00-00

—
Out of stock

58

FRONT LOWER ARM COMP. (RIGHT)

8JA-23580-20-00

—
Out of stock

58

FRONT LOWER ARM COMP. (RIGHT)

8JA-23580-40-00

—
Out of stock

59

BUSH, SOLID

90381-16N51-00

—
Out of stock

60

BAR, STABILIZER FRONT

8FG-2386E-00-00

—
Out of stock

61

BUSH, STABILIZER FRONT

8FG-2386G-00-00

—
Out of stock

62

ARM, STABILIZER

8FG-2386L-00-00

—
Out of stock

63

JOINT, STABILIZER 1

8ES-2385L-00-00

—
Out of stock

64

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

65

NUT, U FLANGE

95604-06200-00

—
Out of stock

66

BOLT, FLANGE(4FM)

95814-08030-00

—
Out of stock

67

NUT, U FLANGE(4KG)

95604-08200-00

—
Out of stock

68

BOLT, FLANGE

90105-12N54-00

—
Out of stock

69

PIN, COTTER

91490-20025-00

—
Out of stock
