2015 Yamaha RS Venture TF (RST90PTFFB) Engine Bracket Diagram

← All diagrams

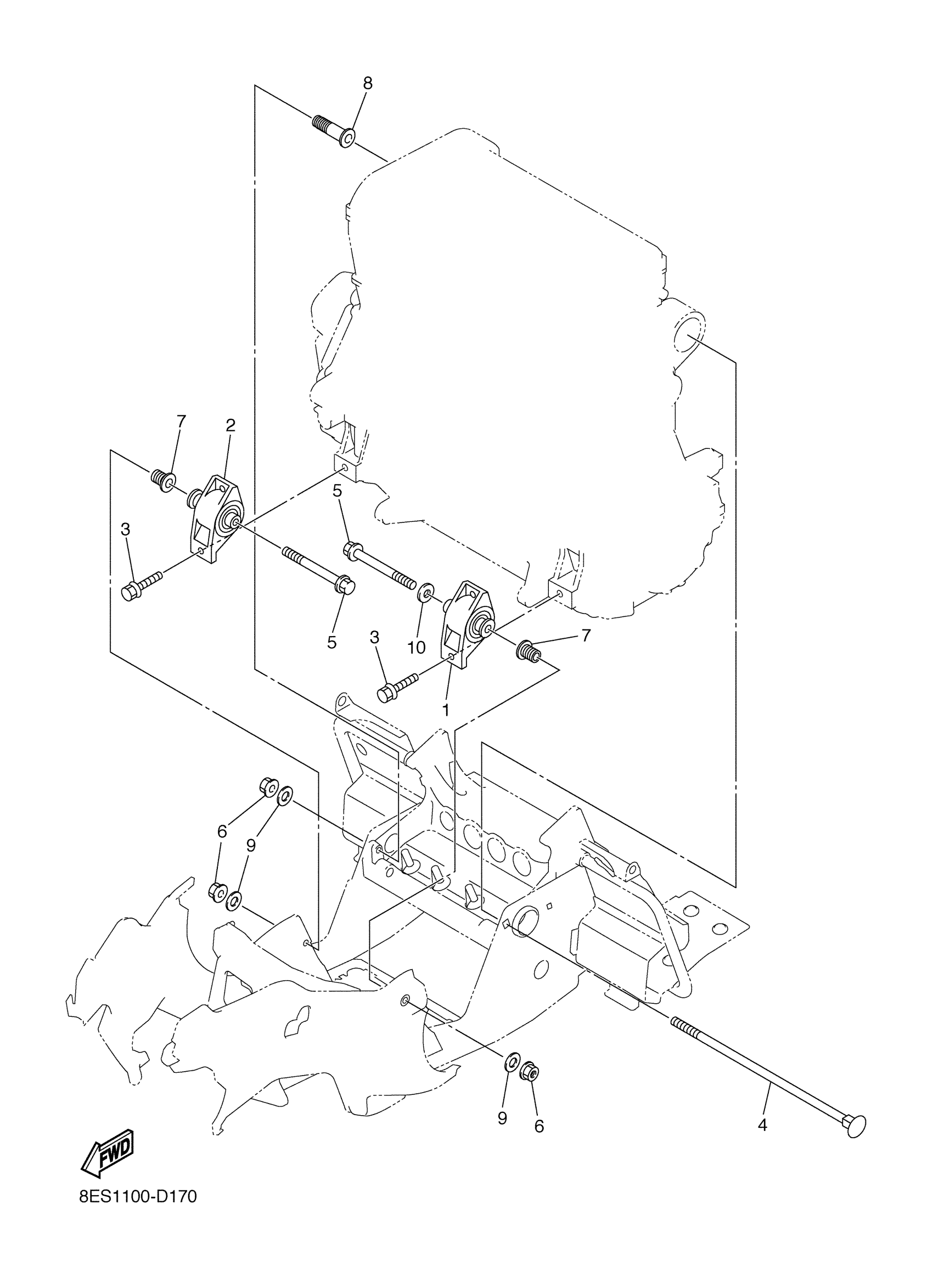

Find the part on the Engine Bracket diagram for your 2015 Yamaha RS Venture TF (RST90PTFFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha RS Venture TF (RST90PTFFB) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE BRACKET COMP.

8ES-21410-00-00

—
Out of stock

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

—
Out of stock

3

BOLT, FLANGE

95812-08030-00

1
Out of stock

4

BOLT, ENGINE MOUNT

8FA-21481-02-00

—
Out of stock

5

BOLT, FLANGE

95817-12100-00

1
Out of stock

6

Nut

90179-12004-00

1
Out of stock

7

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

—
Out of stock

8

BOLT

8ES-2149C-00-00

—
Out of stock

9

WASHER, PLATE(8CJ)

90201-120T5-00

1
Out of stock

10

WASHER, PLATE (5E3)

90201-125A3-00

1
Out of stock
