Description

Price

1

FRONT FRAME COMP.

8ET-21940-20-00

$2,137.99

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

PROTECTOR

8FR-2193A-01-00

$93.12

15

HEAT EXCHANGER ASSY

8HF-12440-00-00

$503.75

16

HOSE 7

8FA-12551-00-00

$7.51

17

CLIP (8M6)

90467-28046-00

$12.43

18

HOSE CLAMP ASSY

90450-35001-00

$5.25

19

NUT, SELF-LOCKING

90185-08169-00

$7.09

20

RIVET, BLIND

90267-47195-00

$3.33

21

PLATE, COVER

8ES-2131D-00-00

$4.26

22

RIVET, BLIND

90267-48016-00

$7.85

23

RIVET, BLIND

90267-48177-00

$1.71

24

REAR FRAME COMP.

8ET-21950-21-00

$2,795.99

25

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

26

BRACKET, MAIN TRACK 1

8ET-21943-01-00

$10.66

27

BRACKET, RR.TRACK SUSPENTION 1

8ET-21944-00-00

$112.05

28

BRACKET, RR.TRACK SUSPENTION 2

8ET-21954-00-00

$113.34

29

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

30

BRACKET 1

8ET-2194X-00-00

$7.25

31

BRACKET 2

8ET-2195X-00-00

$7.25

32

PROTECTOR, MUFFLER

8ES-2194H-00-00

$58.18

33

RIVET, BLIND

90267-47195-00

$3.33

34

PANEL, SUB FRAME 5

8ET-21916-01-00

$235.11

35

PATCH 3

8ET-21963-00-00

$13.66

36

PATCH 4

8ET-21964-00-00

$13.66

37

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

$274.97

38

WASHER, SEAL (7G5)

90210-06006-00

$5.72

39

BOLT, FLANGE

95817-06016-00

$1.49

40

RIVET, BLIND

90267-47197-00

$1.91

41

RIVET, BLIND(3JB)

90267-48095-00

$2.00

42

BOLT, FLANGE

95814-10020-00

$3.78

43

WASHER, PLATE

90201-10064-00

$3.60

44

BRACKET, MAIN TRACK 2

8ET-21953-00-00

$7.28

45

REINFORCEMENT, FOOTREST 1

8ET-21926-00-00

$160.77

46

REINFORCEMENT, FOOTREST 2

8ET-21936-00-00

$160.77

47

BRACKET, SEAT FITTING

8ET-21946-00-00

$16.92

48

BRACKET, SEAT FITTING 1

8ET-21956-00-00

$17.48

49

PATCH 8

8ET-21988-00-00

$9.82

50

PATCH 9

8ET-21989-00-00

$23.86

51

PATCH 10

8ET-21997-00-00

$23.86

52

BRACKET 4

8ET-2196G-00-00

$7.31

53

RIVET, BLIND

90267-48016-00

$7.85

54

RIVET, BLIND

90267-48016-00

$7.85

55

RIVET, BLIND

90267-48023-00

$8.18

56

RIVET, BLIND

90267-48177-00

$1.71

57

FRAME CONNECTION KIT

8FK-W2195-21-00

$168.68

58

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

59

BRACKET, 5

8FU-2196M-00-00

$25.85

60

BRACKET, 6

8FU-2197M-00-00

$25.85

61

COVER 2

8FP-2198G-01-00

$20.57

62

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

63

RIVET, BLIND

90267-47195-00

$3.33

64

RIVET, BLIND

90267-47197-00

$1.91

65

RIVET, BLIND

90267-48018-00

$7.35

66

RIVET, BLIND

90267-48177-00

$1.71

67

RIVET, BLIND(8CR)

90267-47186-00

$2.31

68

FOOTREST COMP. 1

8FU-21960-01-00

$191.80

69

FOOTREST COMP. 2

8FU-21970-01-00

$183.82

70

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

71

FRAME UNDER 1

8ES-2196A-01-00

$81.12

72

FRAME, UNDER 2

8FA-2196E-01-00

$76.54

73

BRACKET, GUARD FITTING

8FA-21972-01-00

$6.28

74

BRACKET 3

8FA-2196F-00-00

$5.58

75

RIVET, BLIND (22W)

90267-48083-00

$2.78

76

RIVET, BLIND(8CR)

90267-47186-00

$2.31

77

RIVET, BLIND

90267-48018-00

$7.35

78

RIVET, BLIND

90267-47200-00

$2.28

79

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

80

RIVET, BLIND(3JB)

90267-48095-00

$2.00

81

RIVET, BLIND

90267-48023-00

$8.18

82

RIVET, BLIND

90267-47195-00

$3.33

83

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

84

BOLT, BUTTON HEAD

92012-06012-00

$2.49

85

SPACER

8FA-21998-00-00

$3.60

86

SHIELD, HEAT

8FG-23892-00-00

$43.78

87

RIVET, BLIND (8L0)

90267-48059-00

$2.46

88

SHIELD, HEAT

8ET-23892-00-00

$48.08

89

RIVET, BLIND

90267-47004-00

$1.78

90

FOOTREST, REAR 1

8DM-27431-03-00

$30.91

91

FOOTREST, REAR 2

8DM-27441-03-00

$34.34

92

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

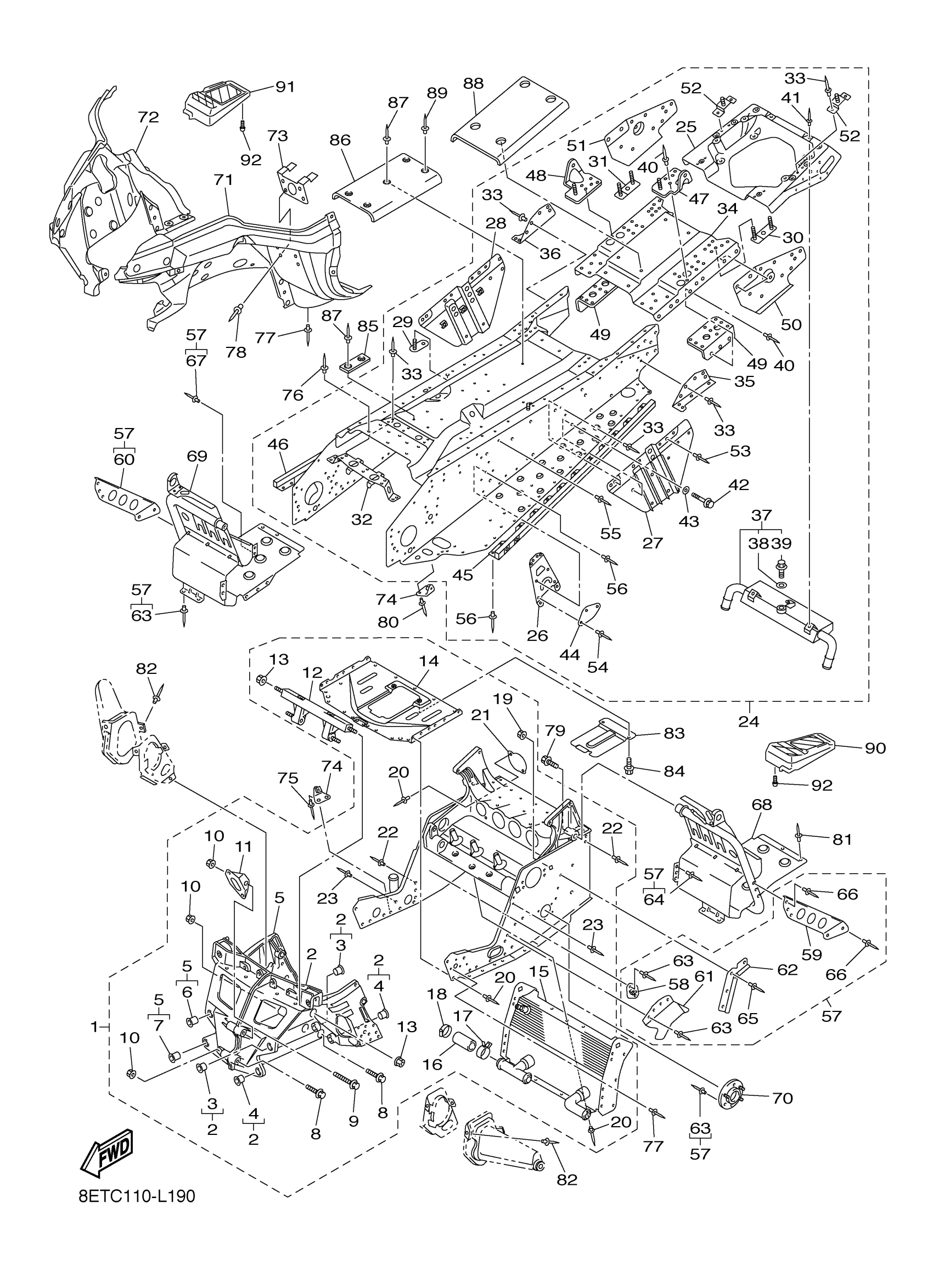

Yamaha RST90ES (RS VENTURE) 8ETE 2014 FRAME Diagram
