2011 Yamaha RS Venture (RST90AS) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2011 Yamaha RS Venture (RST90AS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

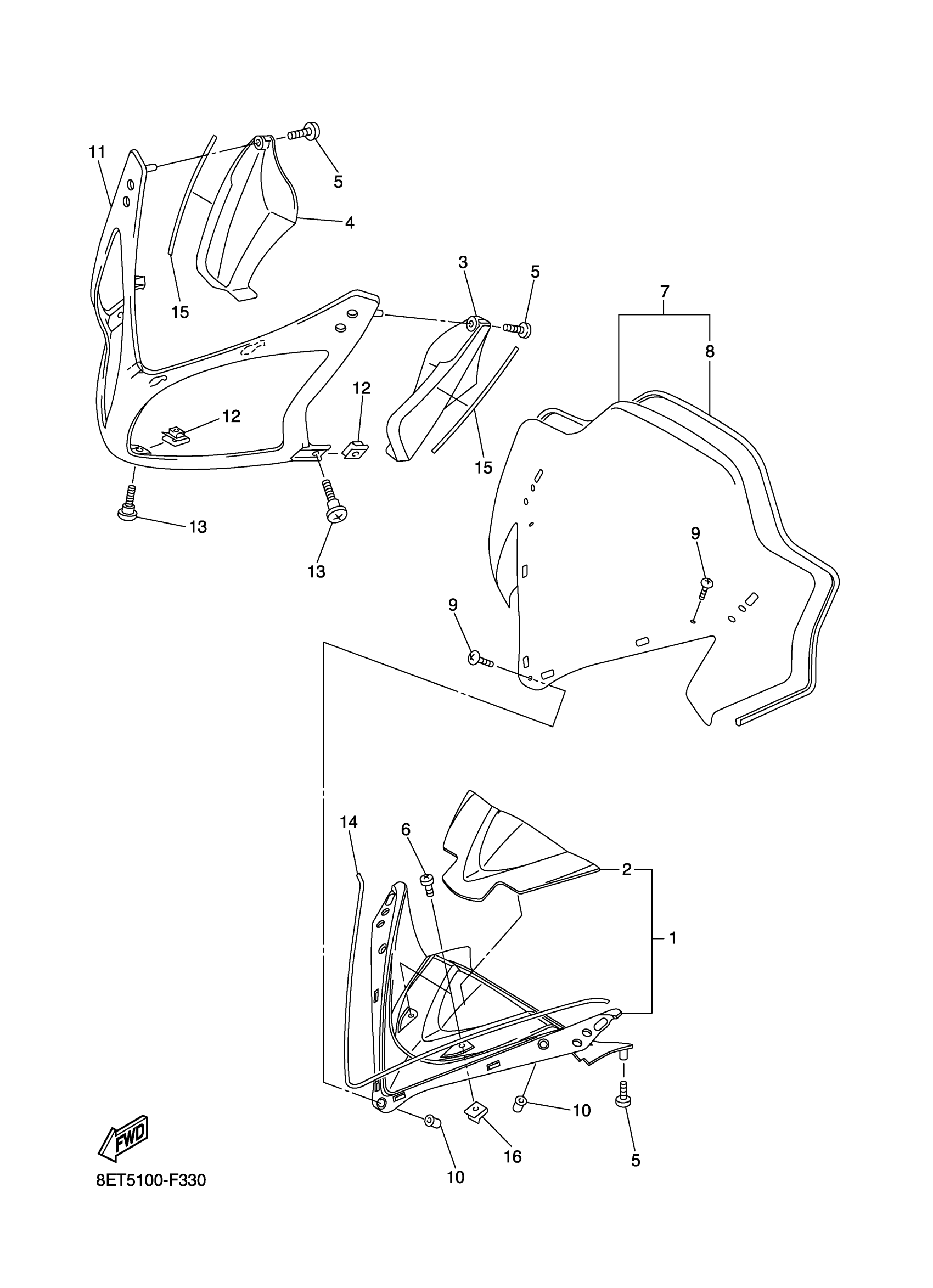

2011 Yamaha RS Venture (RST90AS) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8ES-W7725-00-00

1
Out of stock

2

DAMPER 1

8ES-77198-00-00

—
Out of stock

3

PLATE 1

8FA-77185-00-00

1
Out of stock

4

PLATE 2

8FA-77186-00-00

1
Out of stock

5

SCREW, TAPPING(4MV)

97707-50016-00

1
Out of stock

6

SCREW, BINDING

98907-06014-00

1
Out of stock

7

WINDSHIELD XXT RX1RXWRXM

SMA-8FA96-50-BK

1
Out of stock

8

. TRIM, UPPER

8ET-K7213-20-00

1
Out of stock

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

1
Out of stock

10

NUT(1KT)

90179-05523-00

1
Out of stock

11

FAIRING

8FA-77231-B0-P5

—
Out of stock

12

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

13

SCREW, BINDING

90154-06009-00

1
Out of stock

14

TRIM, LOWER

8FA-77214-00-00

1
Out of stock

15

TRIM 3

8FA-77215-00-00

1
Out of stock

16

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock
