2007 Yamaha Rage (RSG90W) Primary Sheave Diagram

← All diagrams

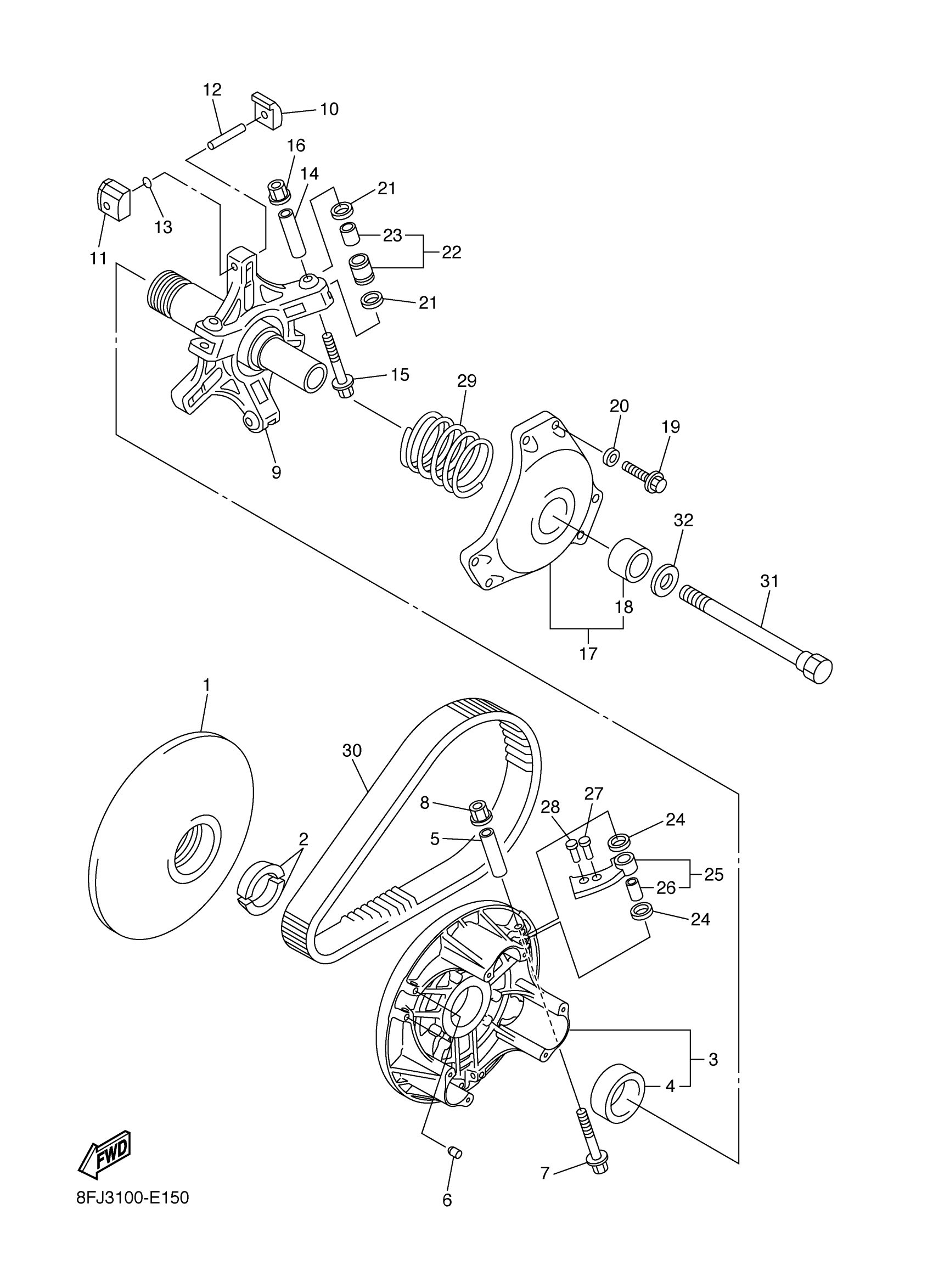

Find the part on the Primary Sheave diagram for your 2007 Yamaha Rage (RSG90W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Rage (RSG90W) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

1

$199.05

In stock

2

STOPPER

8V0-17639-00-00

1

$10.52

In stock

3

1

$468.94

In stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

5

COLLAR

90387-0514T-00

1

$14.86

In stock

6

BOLT, SET

90113-05041-00

1
Out of stock

7

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

8

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

9

SPIDER COMPLETE

8ES-17640-02-00

—

$438.89

In stock

10

SLIDER

8BW-17653-00-00

1

$13.86

In stock

11

SLIDER

8ES-17653-00-00

1

$21.43

In stock

12

PIN, SPRING (7F7)

91609-50032-00

1

$3.66

In stock

13

DAMPER, SLIDER

8ES-17655-00-00

1

$1.83

In stock

14

COLLAR

90387-0514U-00

1

$15.86

In stock

15

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

16

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

17

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

—

$176.14

In stock

18

BUSH, SOLID(8CP)

90380-28237-00

—

$31.34

In stock

19

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

20

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

21

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

22

ROLLER, COMP

8FG-17624-20-00

—

$98.94

In stock

23

BUSH

90386-09001-00

—

$55.20

In stock

24

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

25

WEIGHT COMP

8ES-17605-00-00

—

$83.08

In stock

26

BUSH

90386-08002-00

—

$11.97

In stock

27

—

$5.62

In stock

28

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

29

SPRING, COMPRESSION

90501-552L5-00

—

$37.25

In stock

30

V-BELT

8DN-17641-01-00

1

$85.29

In stock

31

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

32

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
