2006 Yamaha Rage (RSG90L) Taillight Diagram

← All diagrams

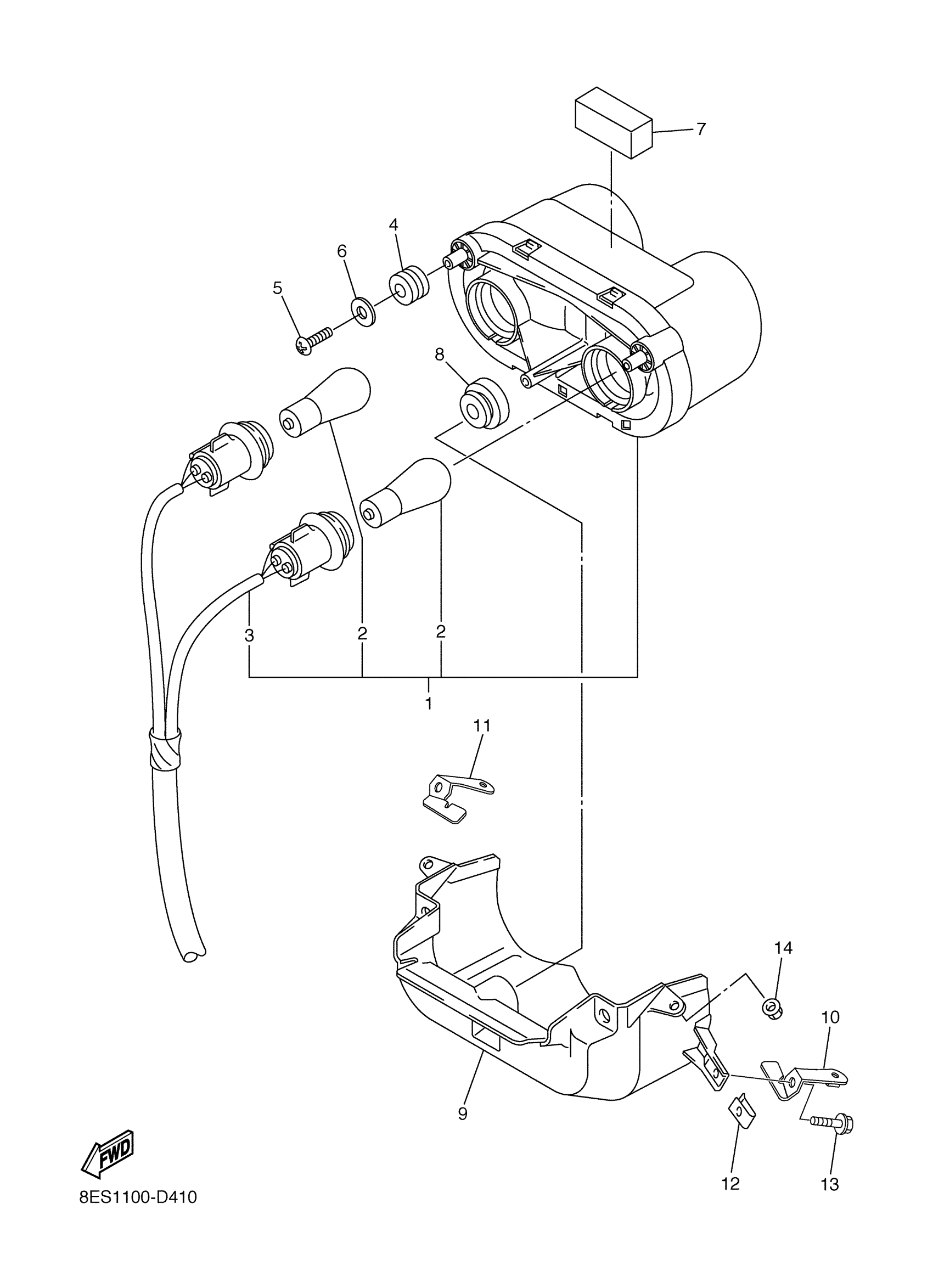

Find the part on the Taillight diagram for your 2006 Yamaha Rage (RSG90L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Rage (RSG90L) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

5JJ-84710-12-00

1
Out of stock

2

BULB

1A2-84714-50-00

1
Out of stock

3

CORD ASSY

5JJ-84755-00-00

1
Out of stock

4

DAMPER

4XV-83513-00-00

1
Out of stock

5

SCREW, TAPPING(4MV)

97707-50016-00

1
Out of stock

6

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

7

DAMPER

5JJ-21747-00-00

1
Out of stock

8

GROMMET (509)

90480-18171-00

1
Out of stock

9

BRACKET, TAILLIGHT

8FA-2117E-00-00

—
Out of stock

10

BRACKET, FRONT

8ES-77531-00-00

—
Out of stock

11

BRACKET, FRONT (R.H)

8ES-77532-00-00

—
Out of stock

12

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

13

BOLT, FLANGE

95817-06014-00

—
Out of stock

14

NUT,SELF-LOCKING

95607-06200-00

1
Out of stock
