2006 Yamaha Rage (RSG90L) Steering Gate Diagram

← All diagrams

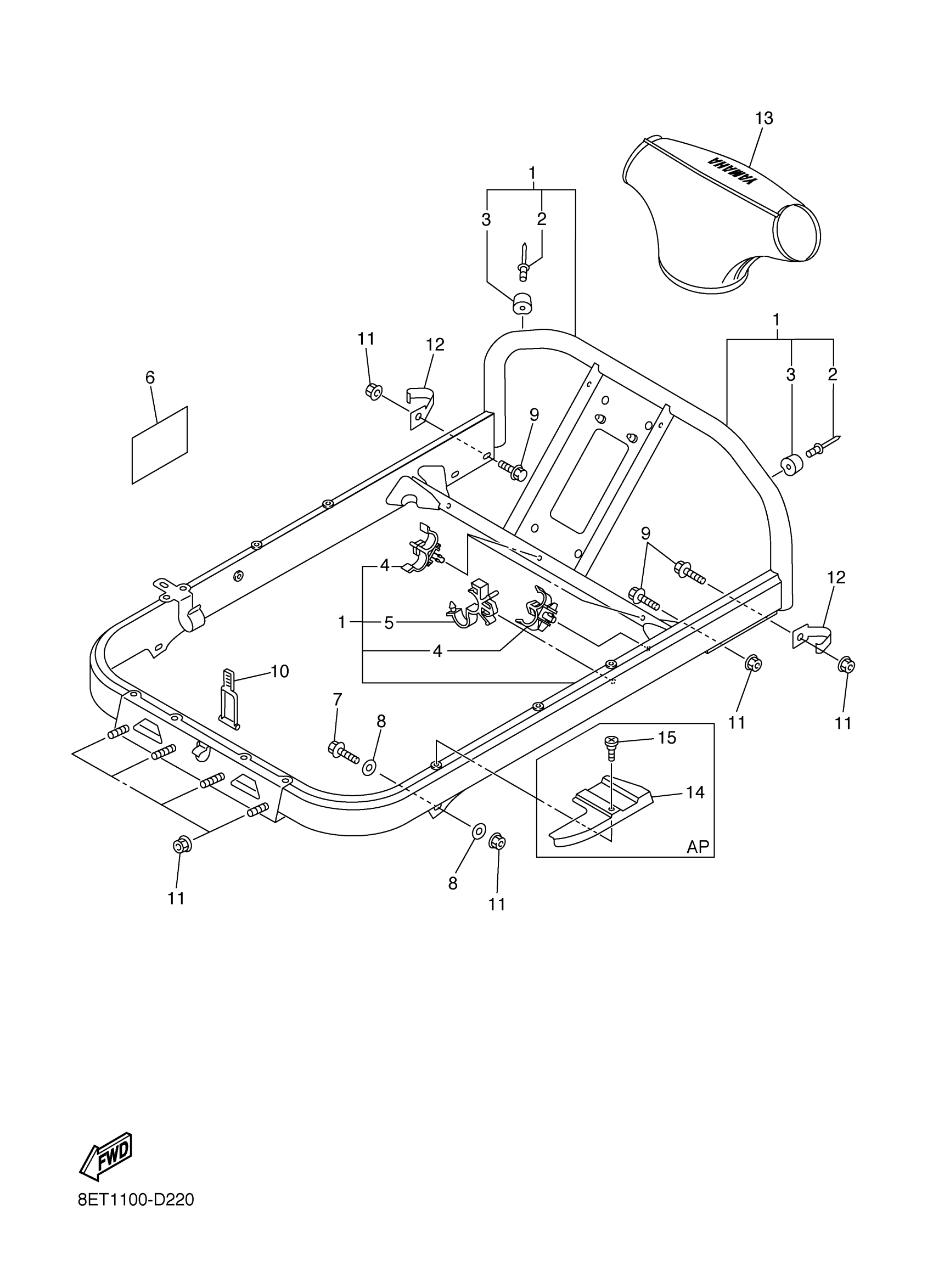

Find the part on the Steering Gate diagram for your 2006 Yamaha Rage (RSG90L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Rage (RSG90L) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8ES-23870-02-00

1

$947.99

In stock

2

RIVET, BLIND

90267-47195-00

1

$3.33

In stock

3

DAMPAR

8FA-23858-00-00

1

$2.69

In stock

4

CLAMP

90464-11007-00

1

$3.54

In stock

5

CLAMP

90464-16006-00

1

$8.31

In stock

6

LABEL, CAUTION

8FA-2389C-E0-00

—

$2.45

In stock

7

BOLT, WASHER BASED(JN9)

90105-081A7-00

1

$6.46

In stock

8

WASHER (853)

90201-08326-00

1

$6.17

In stock

9

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

10

LATCH

8FA-2389E-00-00

1

$10.46

In stock

11

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

12

CLAMP

90462-10022-00

—

$5.58

In stock

13

PAD, STEERING

8ES-23815-00-00

1
Out of stock

14

PLATE

8ES-14146-00-00

—

$114.83

In stock

15

SCREW, ROUND HEAD (24R)

90150-06015-00

1

$3.45

In stock
