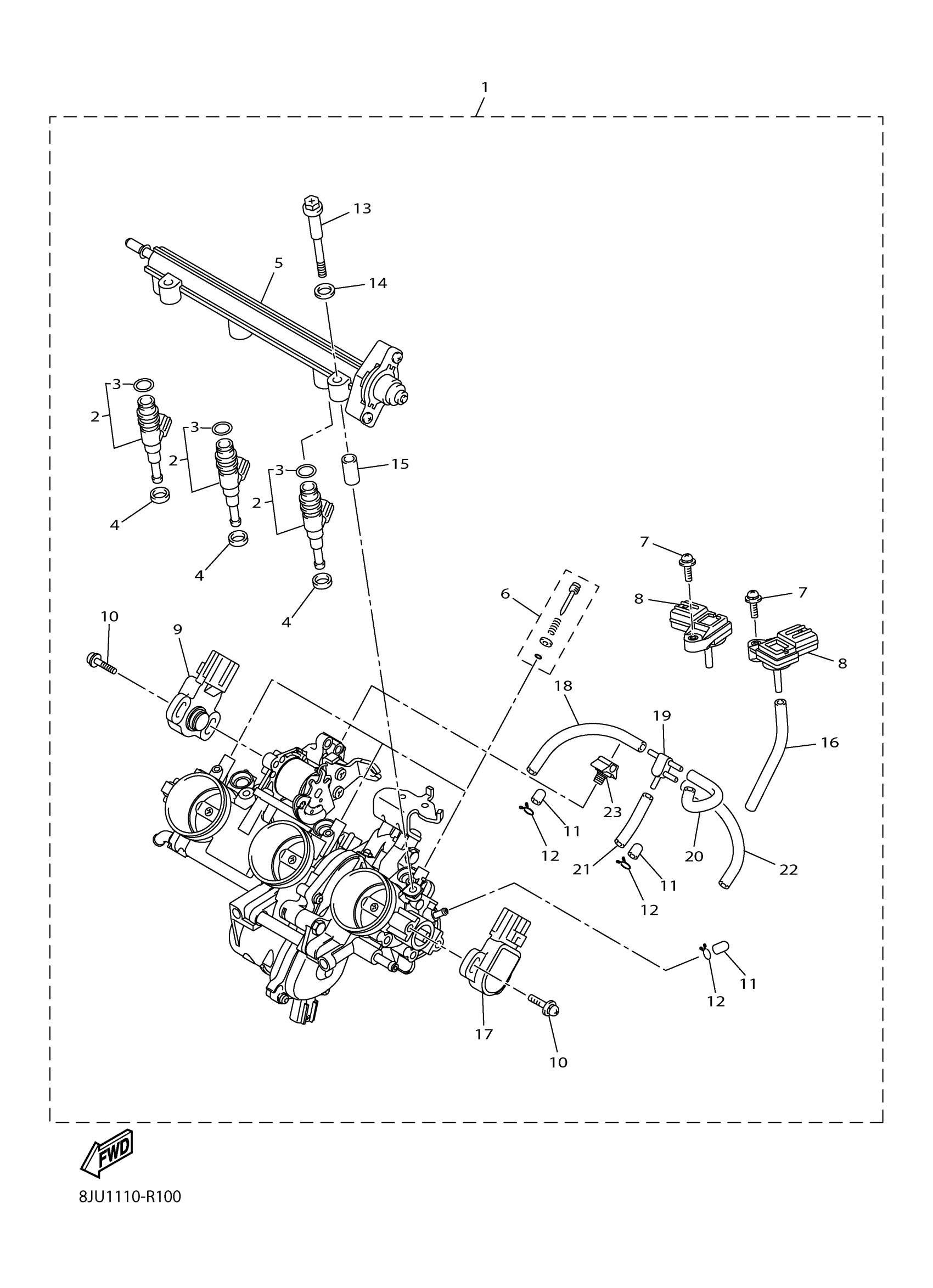

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8JU-13750-01-00

Unavailable

2

INJECTOR ASSY

8GC-13761-00-00

$250.65

3

O-RING

8GC-13769-00-00

$13.32

4

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

5

PIPE INLET ASSEMBLY

8HF-13930-00-00

Unavailable

6

ADJUST SCREW SET

8GL-14503-00-00

Unavailable

7

SCREW

2C0-14216-00-00

$2.98

8

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

9

ACCELERATOR SENSOR ASSY.

8JU-85884-00-00

Unavailable

10

SCREW

8CC-14216-10-00

$6.66

11

CAP

895-14169-00-00

$3.73

12

CLIP, PIPE

8A7-14139-00-00

$6.34

13

BOLT 1

8GL-13573-00-00

$11.48

14

WASHER

8GL-13571-00-00

$3.14

15

COLLAR

8GL-14534-00-00

$7.77

16

PIPE

5JW-14349-10-00

Unavailable

17

THROTTLE SENSOR ASSY

8JU-85885-00-00

Unavailable

18

HOSE, VACUUM SENSING 3

2C0-13532-00-00

Unavailable

19

CONNECTOR

5PW-1410F-00-00

Unavailable

20

PIPE

8FP-14349-00-00

Unavailable

21

PIPE

8FP-14349-30-00

Unavailable

22

HOSE

8JU-1410E-00-00

Unavailable

23

HOLDER

8JU-14261-00-00

Unavailable
