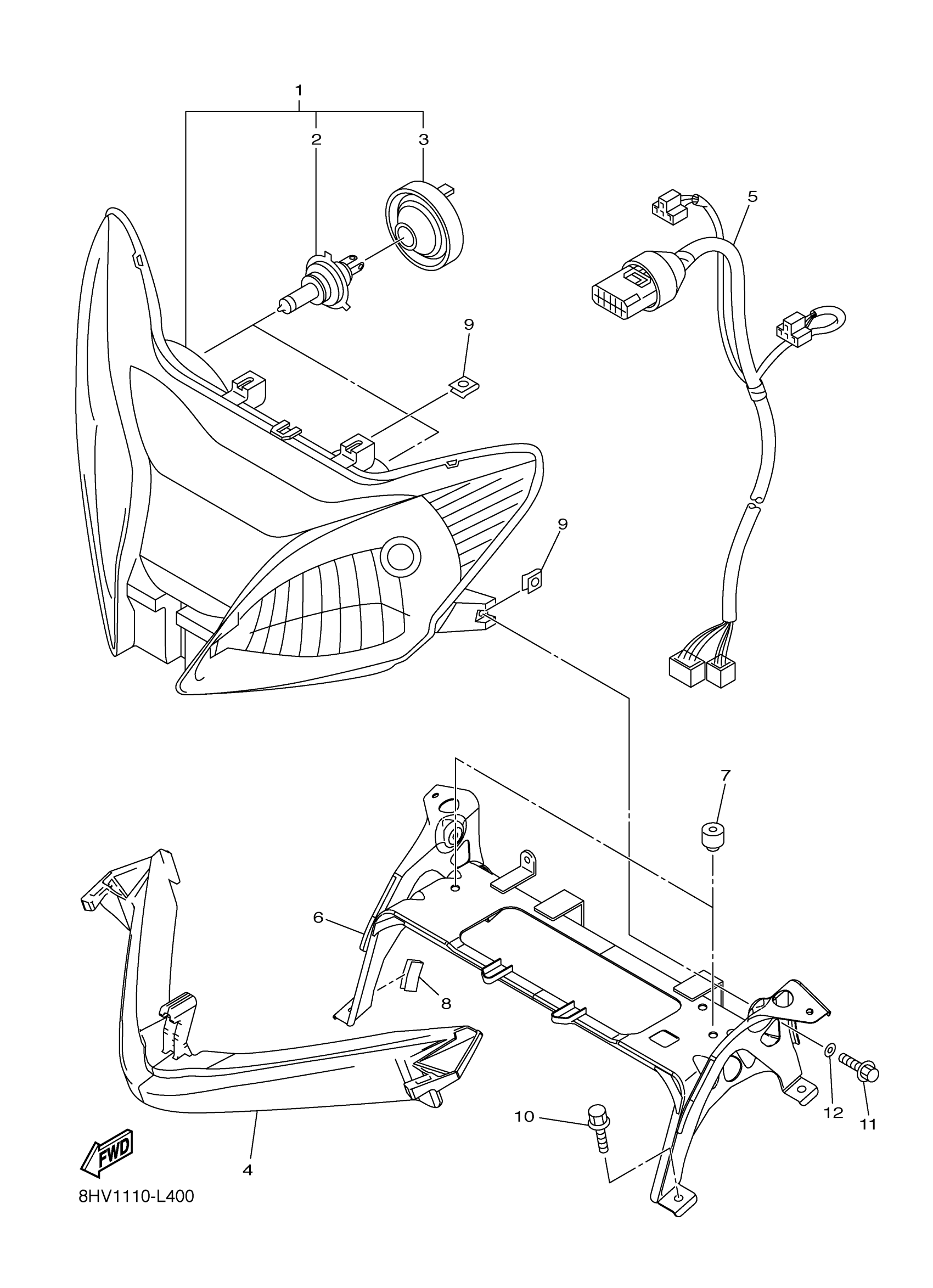

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

8FP-84310-00-00

$511.38

2

BULB, HEADLIGHT

8FP-84314-00-00

$35.27

3

COVER, SOCKET

5GJ-84397-00-00

$24.44

4

DAMPER, HEADLIGHT 1

8FP-84366-00-00

Unavailable

5

CORD, HEADLIGHT

8HV-84359-00-00

Unavailable

6

STAY, HEADLIGHT 1

8HV-84118-00-00

Unavailable

7

STOPPER, MAIN STAND

1UJ-27114-00-00

Unavailable

8

TAPE 4

8FA-7717H-00-00

$0.96

9

NUT, SPRING

90183-06100-00

$7.35

10

BOLT, FLANGE

95817-06016-00

$1.40

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

12

WASHER, SPRING

92995-06100-00

$2.95
