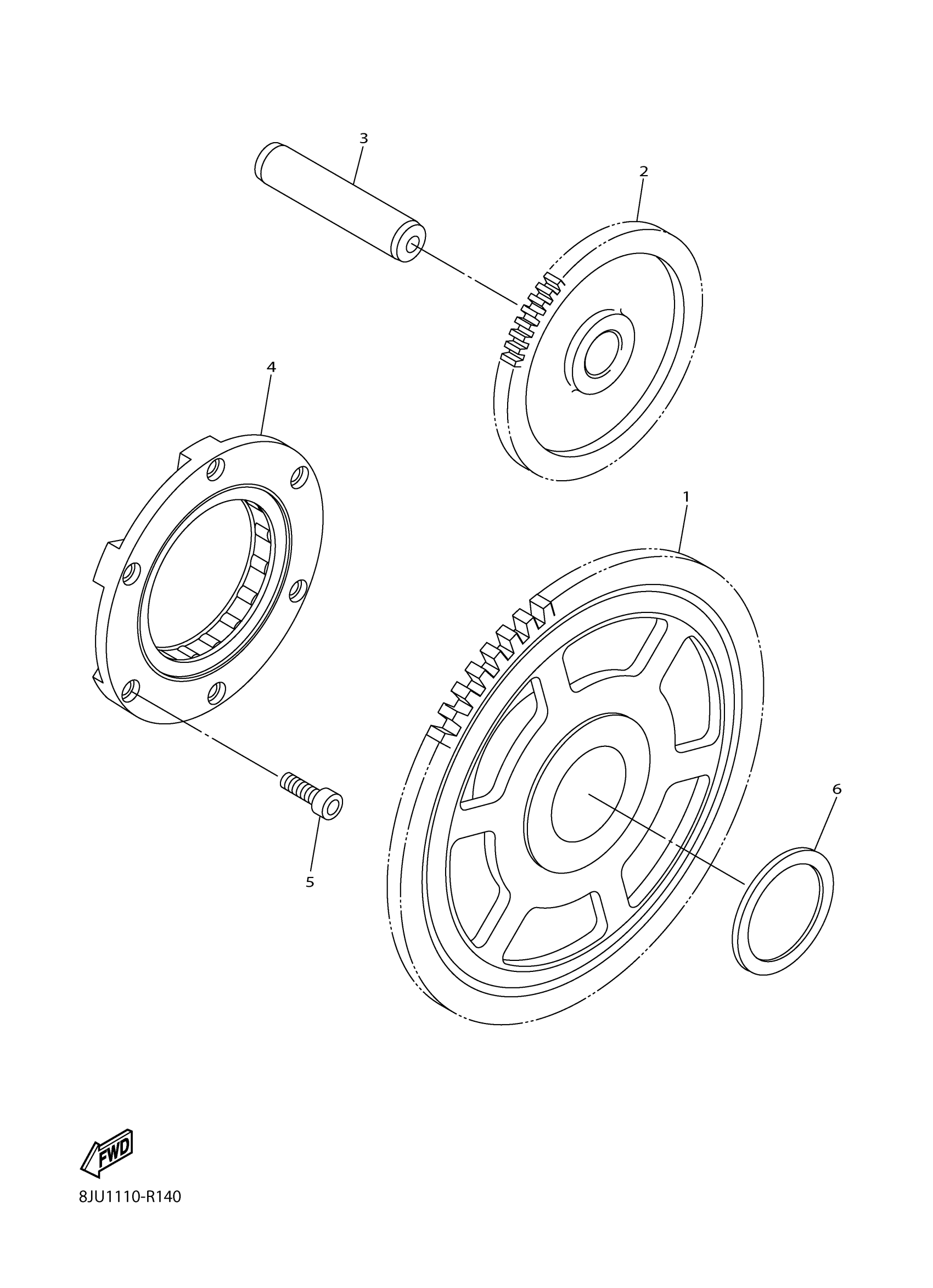

Find the part on the Starter diagram for your 2017 Yamaha RS Vector XTX (RS90XTHL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha RS Vector XTX (RS90XTHL) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

8FA-15515-00-00

1

$148.89

In stock

2

GEAR, IDLER 1

2HC-15512-00-00

1

$98.66

In stock

3

SHAFT 1

8ES-15521-00-00

1

$7.40

In stock

4

STARTER ONE-WAY AS

2HC-15590-00-00

1

$250.26

In stock

5

BOLT (33M)

91312-06014-00

1

$4.74

In stock

6

WASHER, PLATE

90201-30013-00

1

$3.40

In stock
