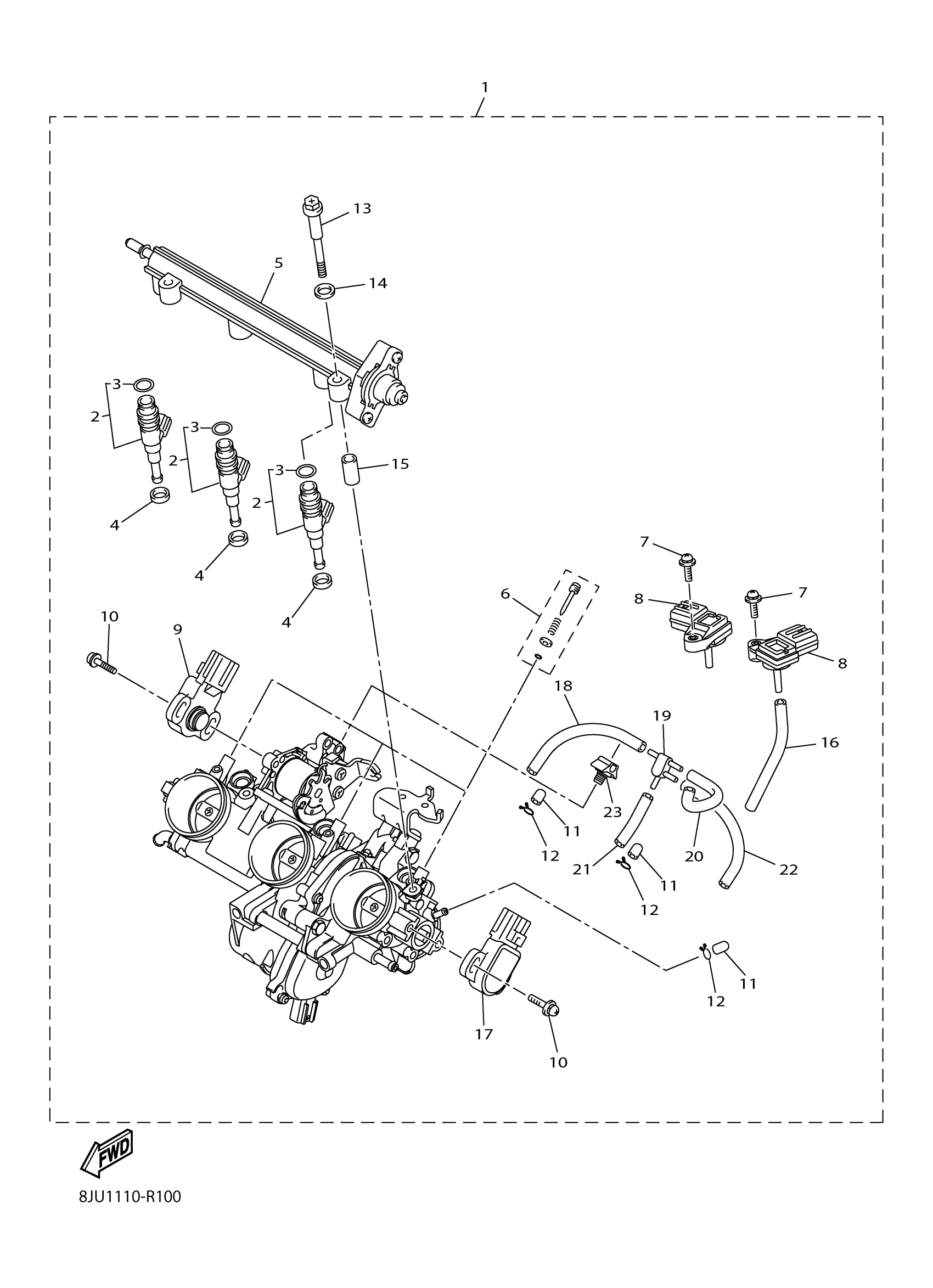

Find the part on the Intake 2 diagram for your 2017 Yamaha RS Vector XTX (RS90XTHL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha RS Vector XTX (RS90XTHL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8JU-13750-01-00

1
Out of stock

2

INJECTOR ASSY

8GC-13761-00-00

1
Out of stock

3

O-RING

8GC-13769-00-00

1
Out of stock

4

GASKET, MANIFOLD

8FP-13556-00-00

1
Out of stock

5

PIPE INLET ASSEMBLY

8HF-13930-00-00

—
Out of stock

6

ADJUST SCREW SET

8GL-14503-00-00

—
Out of stock

7

SCREW

2C0-14216-00-00

1
Out of stock

8

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

9

ACCELERATOR SENSOR ASSY.

8JU-85884-00-00

—
Out of stock

10

SCREW

8CC-14216-10-00

1
Out of stock

11

CAP

895-14169-00-00

1
Out of stock

12

CLIP, PIPE

8A7-14139-00-00

1
Out of stock

13

BOLT 1

8GL-13573-00-00

1
Out of stock

14

WASHER

8GL-13571-00-00

1
Out of stock

15

COLLAR

8GL-14534-00-00

1
Out of stock

16

PIPE

5JW-14349-10-00

—
Out of stock

17

THROTTLE SENSOR ASSY

8JU-85885-00-00

—
Out of stock

18

HOSE, VACUUM SENSING 3

2C0-13532-00-00

—
Out of stock

19

CONNECTOR

5PW-1410F-00-00

—
Out of stock

20

PIPE

8FP-14349-00-00

—
Out of stock

21

PIPE

8FP-14349-30-00

—
Out of stock

22

HOSE

8JU-1410E-00-00

—
Out of stock

23

HOLDER

8JU-14261-00-00

—
Out of stock
