2006 Yamaha Vector Er (RS90RL) Track Drive 2 Diagram

← All diagrams

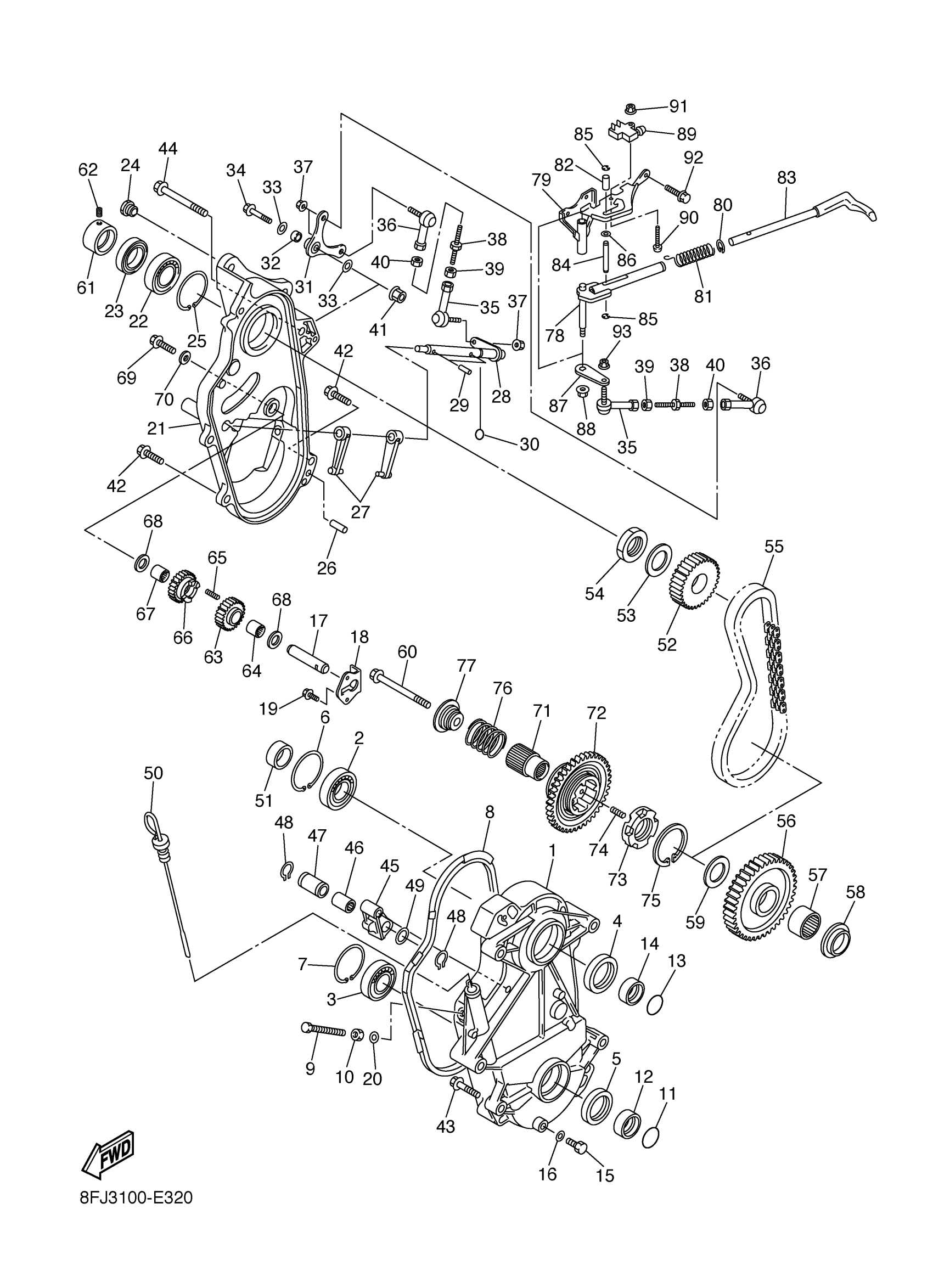

Find the part on the Track Drive 2 diagram for your 2006 Yamaha Vector Er (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Vector Er (RS90RL) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8FP-47541-11-00

—
Out of stock

2

BEARING (5X5)

93306-20627-00

1
Out of stock

3

BEARING

93306-20592-00

1
Out of stock

4

OIL SEAL

93102-40014-00

1
Out of stock

5

OIL SEAL

93102-35010-00

1
Out of stock

6

CIRCLIP(MF1)

99009-62500-00

1
Out of stock

7

CIRCLIP(26H)

99009-52500-00

1
Out of stock

8

RING, HOUSING

8FP-47558-10-00

1
Out of stock

9

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

10

NUT (3WP1)

95317-10700-00

1
Out of stock

11

O-RING (169)

93210-25071-00

1
Out of stock

12

COLLAR(8CJ)

90387-2508C-00

1
Out of stock

13

O-RING (498)

93210-29282-00

1
Out of stock

14

COLLAR

90387-30004-00

—
Out of stock

15

BOLT(8BC)

97007-08014-00

1
Out of stock

16

WASHER, SEAL(8AB)

90210-08017-00

—
Out of stock

17

SHAFT, 1

8CW-1761A-00-00

—
Out of stock

18

PLATE

8CW-47591-00-00

—
Out of stock

19

BOLT, FLANGE

95817-06016-00

—
Out of stock

20

WASHER, PLATE(56J)

90201-106H5-00

—
Out of stock

21

CAP, HOUSING

8FR-47543-02-00

1
Out of stock

22

BEARING

93306-20532-00

—
Out of stock

23

OIL SEAL

93102-35473-00

—
Out of stock

24

NUT(8CJ)

90179-10679-00

—
Out of stock

25

CIRCLIP(26H)

99009-52500-00

1
Out of stock

26

PIN, DOWEL (168)

93606-20044-00

—
Out of stock

27

FORK, SHIFT 1

8GL-18511-01-00

—
Out of stock

28

SHAFT

8ER-18197-10-00

1
Out of stock

29

PIN, SPRING(8DA)

91609-50022-00

—
Out of stock

30

O-RING (328)

93210-12131-00

—
Out of stock

31

LEVER

8ER-18198-00-00

—
Out of stock

32

COLLAR

90387-06197-00

—
Out of stock

33

WASHER, PLATE(36Y)

90201-063J2-00

—
Out of stock

34

BOLT, FLANGE

95817-06040-00

—
Out of stock

35

JOINT, UNIVERSAL 2

J45-23845-00-00

—
Out of stock

36

JOINT 2

88T-18157-00-00

—
Out of stock

37

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

38

ROD, SHIFT

26H-18115-00-00

—
Out of stock

39

NUT, HEXAGON

95314-06600-00

—
Out of stock

40

NUT (2H9)

90170-06228-00

—
Out of stock

41

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

42

BOLT, FLANGE

95817-08035-00

—
Out of stock

43

BOLT, FLANGE(4GB)

95817-10045-00

—
Out of stock

44

BOLT,FLANGE

95817-10090-00

—
Out of stock

45

HOLDER

8ES-47613-00-00

—
Out of stock

46

BEARING

93311-32685-00

—
Out of stock

47

COLLAR

90387-22005-00

—
Out of stock

48

CIRCLIP

99009-26400-00

—
Out of stock

49

WASHER, PLATE

90201-266P2-00

1
Out of stock

50

LEVEL, OIL

8FA-47546-01-00

—
Out of stock

51

COLLAR

90387-30005-00

—
Out of stock

52

SPROCKET, CHAIN DRIVE

8FA-17682-10-00

—
Out of stock

52

SPROCKET, CHAIN DRIVE

8FA-17682-20-00

—
Out of stock

53

WASHER, CONICAL SPRING

90208-28001-00

1
Out of stock

54

NUT

90170-28009-00

—
Out of stock

55

CHAIN

94890-09068-00

—
Out of stock

55

CHAIN

94890-09070-00

—
Out of stock

56

SPROCKET, CHAIN DRIVEN

8FB-47587-00-00

—
Out of stock

56

SPROCKET, CHAIN DRIVEN

8FB-47587-80-00

—
Out of stock

57

BEARING, CYLINDRICAL(8DA)

93317-33179-00

—
Out of stock

58

COLLAR(8DA)

90387-2008G-00

—
Out of stock

59

WASHER, PLATE(8DA)

90201-320S3-00

—
Out of stock

60

BOLT, FLANGE(7LU)

95817-10070-00

—
Out of stock

61

COLLAR

90387-25009-00

—
Out of stock

62

BOLT, SET

90113-06006-00

—
Out of stock

63

SPROCKET, DRIVE

8FB-17692-00-00

—
Out of stock

64

BEARING, CYLINDRICAL(8DA)

93317-21578-00

—
Out of stock

65

SPRING COMPRESSION278185450000

90501-06022-00

—
Out of stock

66

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

—
Out of stock

67

BEARING, CYLINDRICAL(8DA)

93317-21578-00

—
Out of stock

68

WASHER PLATE (3L6)

90201-16245-00

—
Out of stock

69

BOLT, FLANGE

95817-06016-00

—
Out of stock

70

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

71

JOURNAL 1

8CW-47571-00-00

—
Out of stock

72

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

—
Out of stock

73

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

—
Out of stock

74

SPRING, COMPRESSION(8DA)

90501-066J5-00

—
Out of stock

75

CIRCLIP(8DA)

93440-39175-00

—
Out of stock

76

SPRING, COMPRESSION(8FA1)

90501-260A0-00

—
Out of stock

77

COLLAR

8CW-47564-01-00

—
Out of stock

78

ARM, SHIFT

8ER-18112-01-00

—
Out of stock

79

GUIDE, PLATE STOPPER

8ER-18161-00-00

—
Out of stock

80

CIRCLIP(13H)

99009-18400-00

—
Out of stock

81

SPRING, COMPRESSION (8FA1)

90501-130A0-00

—
Out of stock

82

COLLAR (8FA1)

90387-06059-00

—
Out of stock

83

KNOB, LEVER

8ER-18174-00-00

—
Out of stock

84

PIN (8FA1)

90249-06002-00

—
Out of stock

85

CIRCLIP (J10)

93410-06053-00

—
Out of stock

86

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

87

PLATE, SHIFT ARM

8ER-1811A-01-00

—
Out of stock

88

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

89

SWITCH

J51-82817-00-00

—
Out of stock

90

SCREW, BINDING

98907-04020-00

—
Out of stock

91

NUT, U (7LY)

95617-04100-00

—
Out of stock

92

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

93

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock
