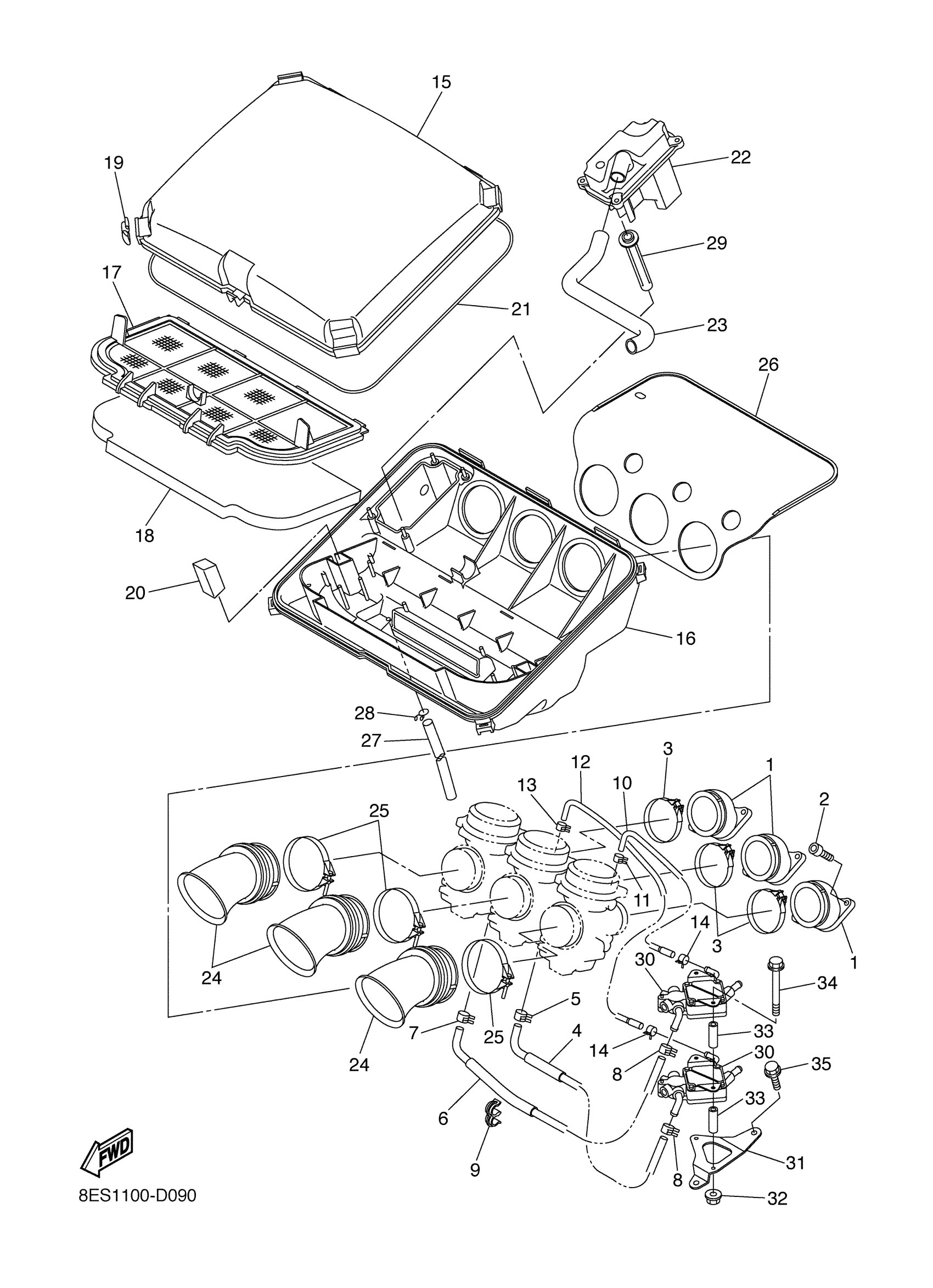

Find the part on the Intake diagram for your 2005 Yamaha RS Vector Er (RS90RK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector Er (RS90RK) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

8ES-13586-10-00

1
Out of stock

2

BOLT,SOCKET

91317-06020-00

—
Out of stock

3

HOSE CLAMP ASSY

90450-57016-00

1
Out of stock

4

HOSE

8ES-14294-00-00

—
Out of stock

5

CLIP

90467-11028-00

1
Out of stock

6

PIPE

8ES-14298-00-00

—
Out of stock

7

CLIP

90467-11028-00

1
Out of stock

8

CLIP

90467-11028-00

1
Out of stock

9

CLAMP(4HM)

90464-13194-00

—
Out of stock

10

HOSE, AIR

8ES-13895-00-00

1
Out of stock

11

CLIP(41W)

90467-08092-00

1
Out of stock

12

HOSE, AIR 2

8ES-13892-00-00

1
Out of stock

13

CLIP(41W)

90467-08092-00

1
Out of stock

14

CLIP (8A1)

90467-09026-00

1
Out of stock

15

SILENCER, INTAKE 1

8ES-14431-00-00

—
Out of stock

16

SILENCER, INTAKE 2

8ES-14441-00-00

—
Out of stock

17

PLATE, ELEMENT

8ES-14472-00-00

—
Out of stock

18

ELEMENT, AIR CLEANER

8ES-14451-00-00

—
Out of stock

19

HOOK

8FA-14436-00-00

—
Out of stock

20

DAMPER 1

8ES-14425-00-00

—
Out of stock

21

SEAL

8ES-14452-00-00

1
Out of stock

22

COVER, CLEANER CASE 1

8ES-1441A-00-00

—
Out of stock

23

PIPE

8ES-14419-00-00

—
Out of stock

24

JOINT, AIR CLEANER 1

8ES-14453-00-00

—
Out of stock

25

HOSE CLAMP ASSY

90450-67002-00

—
Out of stock

26

COVER, CARBURETOR 1

8ES-14283-00-00

—
Out of stock

27

HOSE (L198)

90445-11293-00

—
Out of stock

28

CLIP

90467-100A1-00

—
Out of stock

29

PIPE

8ES-14148-00-00

—
Out of stock

30

FUEL PUMP ASSY

8FA-13910-00-00

—
Out of stock

31

BRACKET, FUEL PUMP

8FA-24491-00-00

—
Out of stock

32

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

33

COLLAR (878)

90387-08262-00

—
Out of stock

34

BOLT, FLANGE(4NM)

95027-06085-00

—
Out of stock

35

BOLT, FLANGE

95817-06016-00

—
Out of stock
