2012 Yamaha Vector LTX (RS90PLTBR) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2012 Yamaha Vector LTX (RS90PLTBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

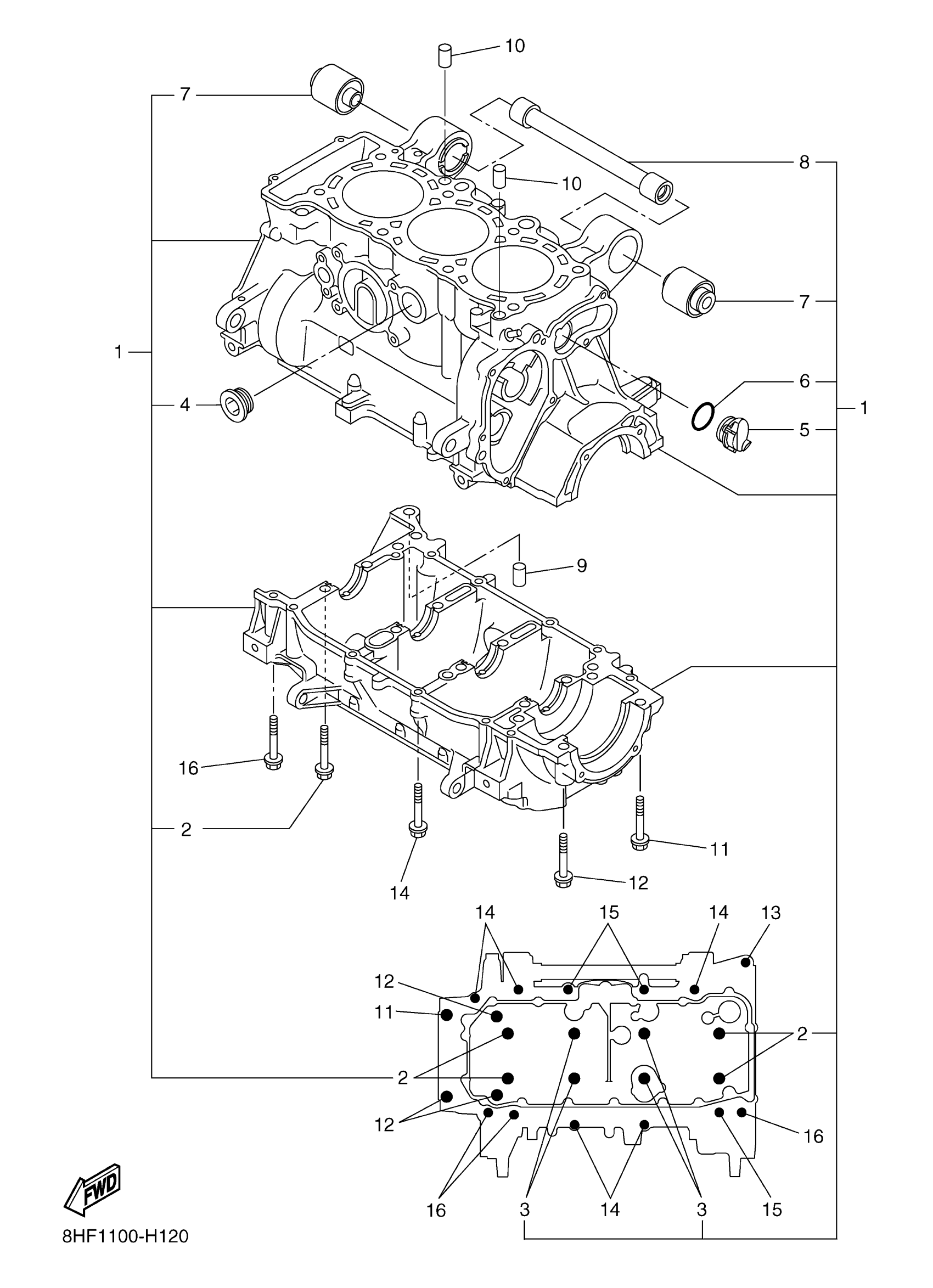

2012 Yamaha Vector LTX (RS90PLTBR) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8GL-15109-09-00

—
Out of stock

2

BOLT, WITH WASHER

90119-09004-00

1

$9.17

In stock

3

BOLT, WITH WASHER

90119-09011-00

1

$34.70

In stock

4

PLUG, STRAIGHT SCREW

90340-27129-00

1
Out of stock

5

PLUG, BLIND 1

8ES-15167-00-00

1

$8.69

In stock

6

O-RING(1HX)

93210-24709-00

1
Out of stock

7

DAMPER

8FA-2139X-00-00

—

$38.35

In stock

8

SPACER

8ES-21459-00-00

—

$20.86

In stock

9

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

10

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

11

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

12

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

13

BOLT

90109-06185-00

1

$6.71

In stock

14

BOLT, FLANGE

95812-06055-00

1

$1.46

In stock

15

BOLT, FLANGE

95812-06080-00

1

$6.32

In stock

16

BOLT, FLANGE

95817-06080-00

—
Out of stock
