2014 Yamaha RS Vector (RS90PER) Emblem Diagram

← All diagrams

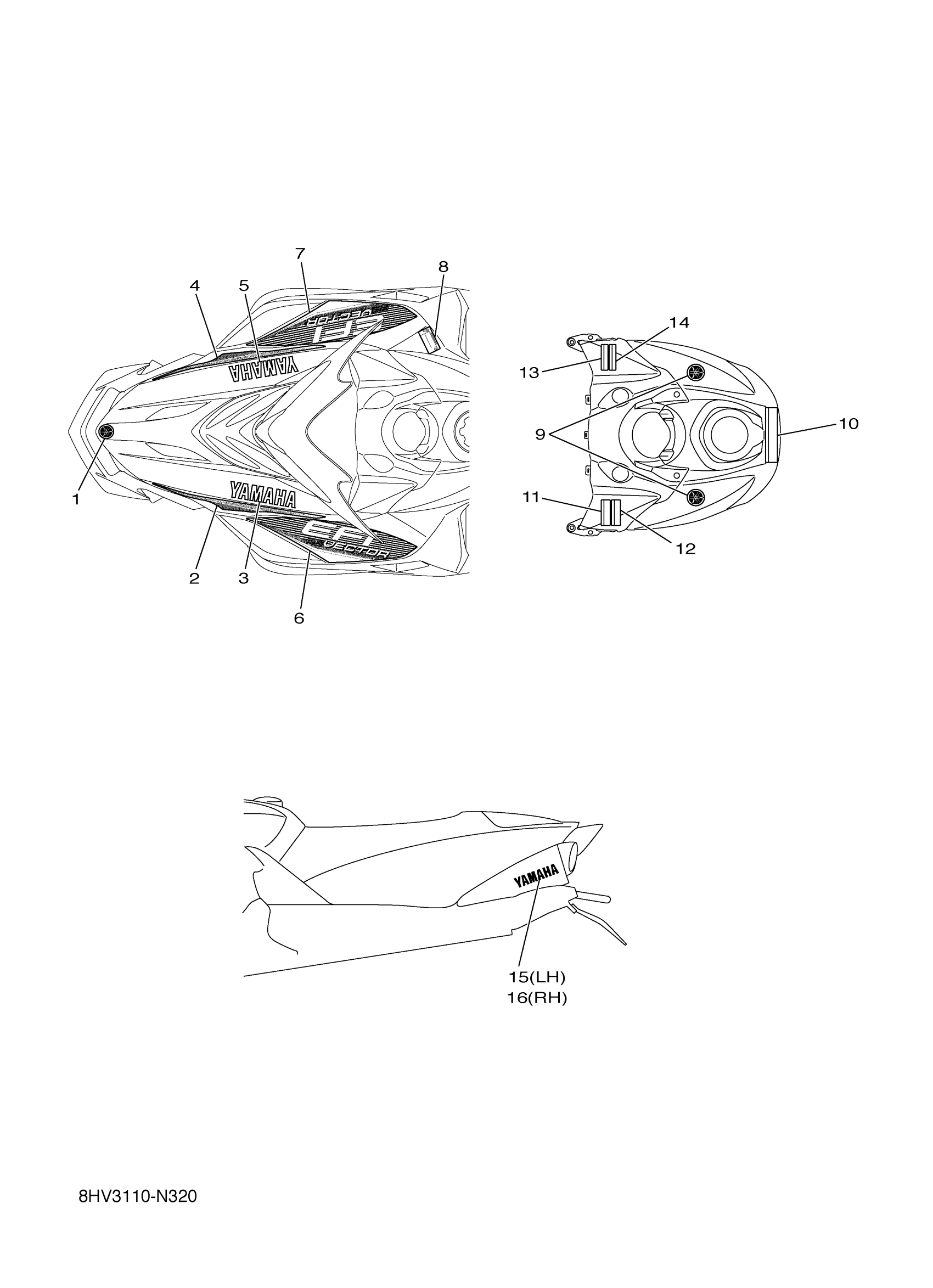

Find the part on the Emblem diagram for your 2014 Yamaha RS Vector (RS90PER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha RS Vector (RS90PER) Emblem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM

8AC-2414B-01-00

1

$33.63

In stock

2

GRAPHIC, SHROUD

8HV-7711L-40-00

—

$105.91

In stock

3

EMBLEM, YAMAHA

99246-00240-00

1
Out of stock

4

GRAPHIC, SHROUD

8HV-7711M-40-00

—

$105.91

In stock

5

EMBLEM, YAMAHA

99246-00240-00

1
Out of stock

6

GRAPHIC 1

8HV-7711A-40-00

1
Out of stock

7

GRAPHIC 2

8HV-7711B-40-00

—

$119.82

In stock

8

LABEL, WARNING 3

8FR-77763-E0-00

1

$3.52

In stock

9

EMBLEM

5PW-2413B-00-00

—
Out of stock

10

LABEL, WARNING 1

8FR-77761-E0-00

—

$15.49

In stock

11

LABEL, NOTICE WINDSHIELD 1

8ET-2815K-00-00

—

$6.23

In stock

12

LABEL, NOTICE WINDSHIELD 1

8ET-2815K-11-00

1
Out of stock

13

LABEL, WARNING 2

8GC-77762-A0-00

1

$3.60

In stock

14

LABEL, WARNING 2

8GC-77762-B0-00

—

$3.60

In stock

15

EMBLEM, YAMAHA

99246-00140-00

1

$24.05

In stock

16

EMBLEM, YAMAHA

99246-00140-00

1

$24.05

In stock
