2013 Yamaha RS Vector (RS90PDL) Electrical 2 Diagram

← All diagrams

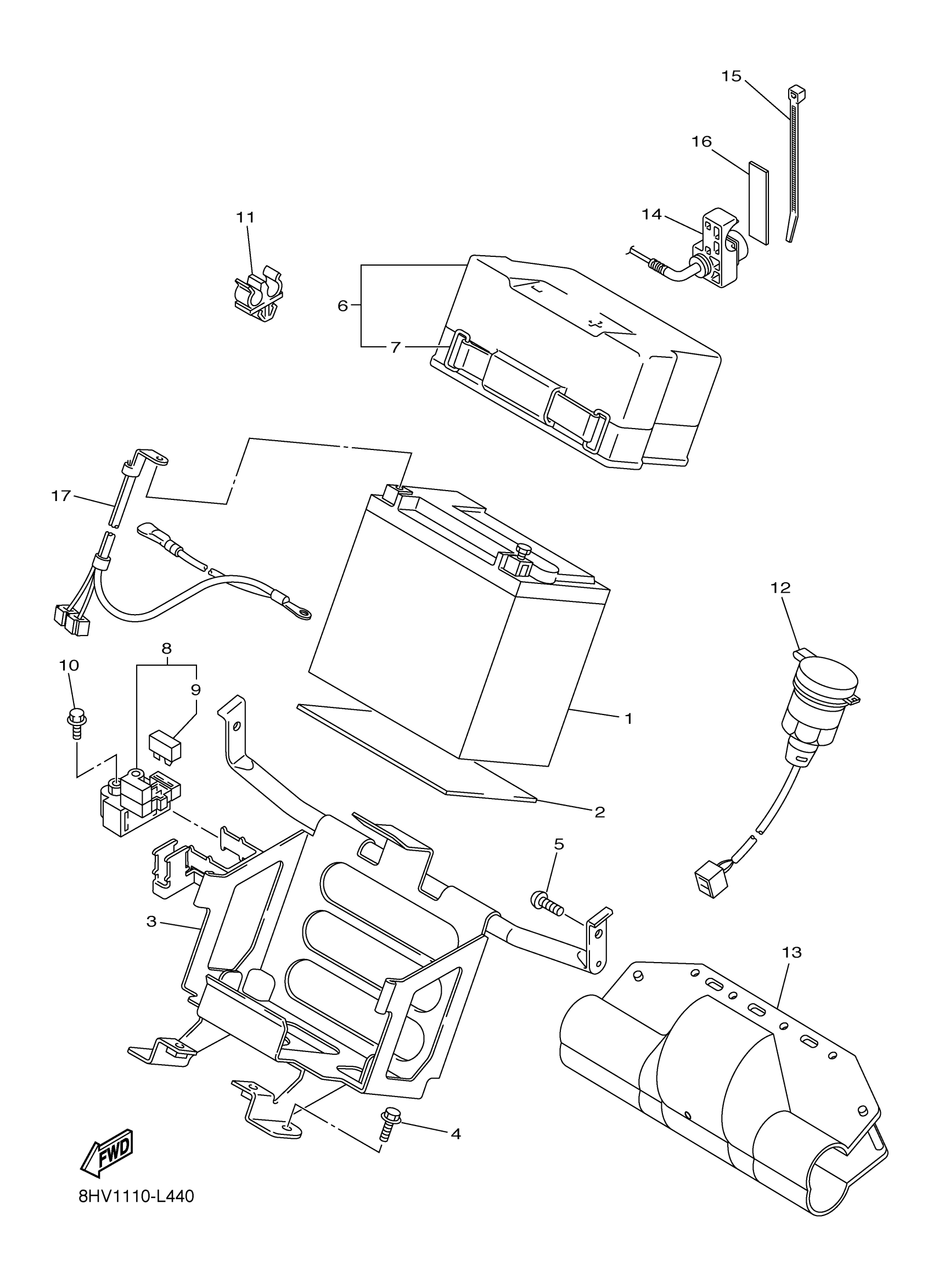

Find the part on the Electrical 2 diagram for your 2013 Yamaha RS Vector (RS90PDL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha RS Vector (RS90PDL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

1
Out of stock

2

SEAT, BATTERY

8FA-82122-00-00

—
Out of stock

3

BRACKET, BATTERY

8HV-2199G-00-00

—
Out of stock

4

BOLT, FLANGE

95814-08016-00

1
Out of stock

5

BOLT, BUTTON HEAD

92012-08020-00

1
Out of stock

6

COVER, BATTERY

8FA-82129-00-00

1
Out of stock

7

BAND, BATTERY

8DM-82131-10-00

1
Out of stock

8

STARTER RELAY ASSY

8HG-81940-00-00

1
Out of stock

9

FUSE (10A)

42X-82151-00-00

1
Out of stock

10

BOLT, FLANGE

95022-06008-00

1
Out of stock

11

CLAMP(87A)

90464-08126-00

1
Out of stock

12

TERMINAL COMP.

8FP-8254B-00-00

—
Out of stock

13

COVER

8FP-8252U-00-00

—
Out of stock

14

TERMINAL COMP.

8HK-8254B-00-00

—
Out of stock

15

CLAMP(3XW)

90464-35132-00

1
Out of stock

16

DAMPER

8HF-84527-00-00

—
Out of stock

17

WIRE, MINUS LEAD

8HV-82116-00-00

—
Out of stock
