2012 Yamaha Vector (RS90PBR) Alternate Rebuild Kit Diagram

← All diagrams

Find the part on the Alternate Rebuild Kit diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

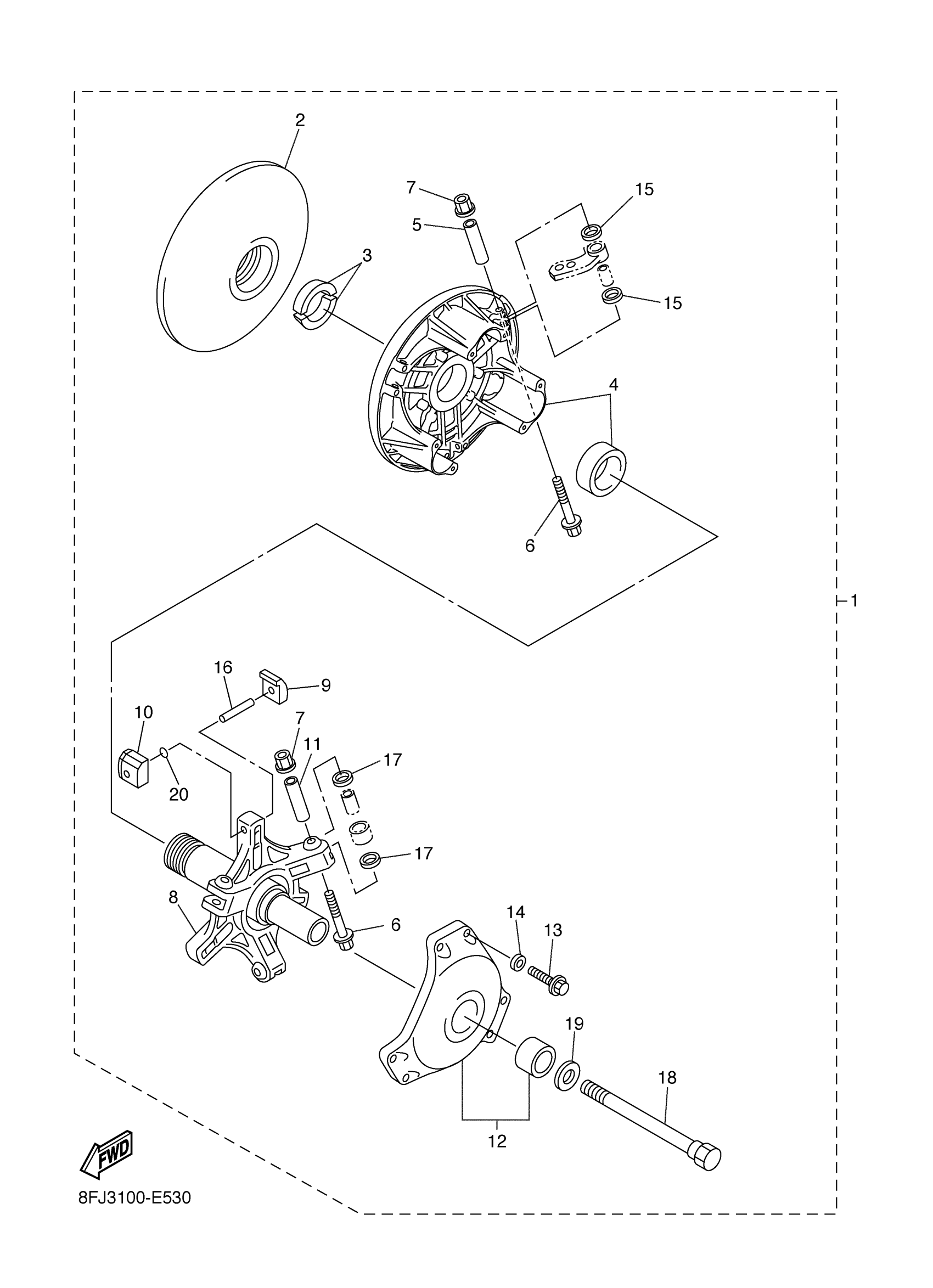

2012 Yamaha Vector (RS90PBR) Alternate Rebuild Kit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH REPAIR KIT

8ES-W176G-12-00

1
Out of stock

2

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

1
Out of stock

3

STOPPER

8V0-17639-00-00

1
Out of stock

4

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

7

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

8

SPIDER COMPLETE

8ES-17640-02-00

—
Out of stock

9

SLIDER

8BW-17653-00-00

1
Out of stock

10

SLIDER

8ES-17653-00-00

1
Out of stock

11

COLLAR

90387-0514U-00

1
Out of stock

12

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06030-00

1
Out of stock

14

WASHER(6TA)

92907-06600-00

1
Out of stock

15

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

16

PIN, SPRING (7F7)

91609-50032-00

—
Out of stock

17

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

18

BOLT (L=156.5MM)

8V0-17647-10-00

—
Out of stock

19

WASHER(JN5)

92907-16100-00

—
Out of stock

20

DAMPER, SLIDER

8ES-17655-00-00

—
Out of stock
