2007 Yamaha Nytro (RS90NW) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2007 Yamaha Nytro (RS90NW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

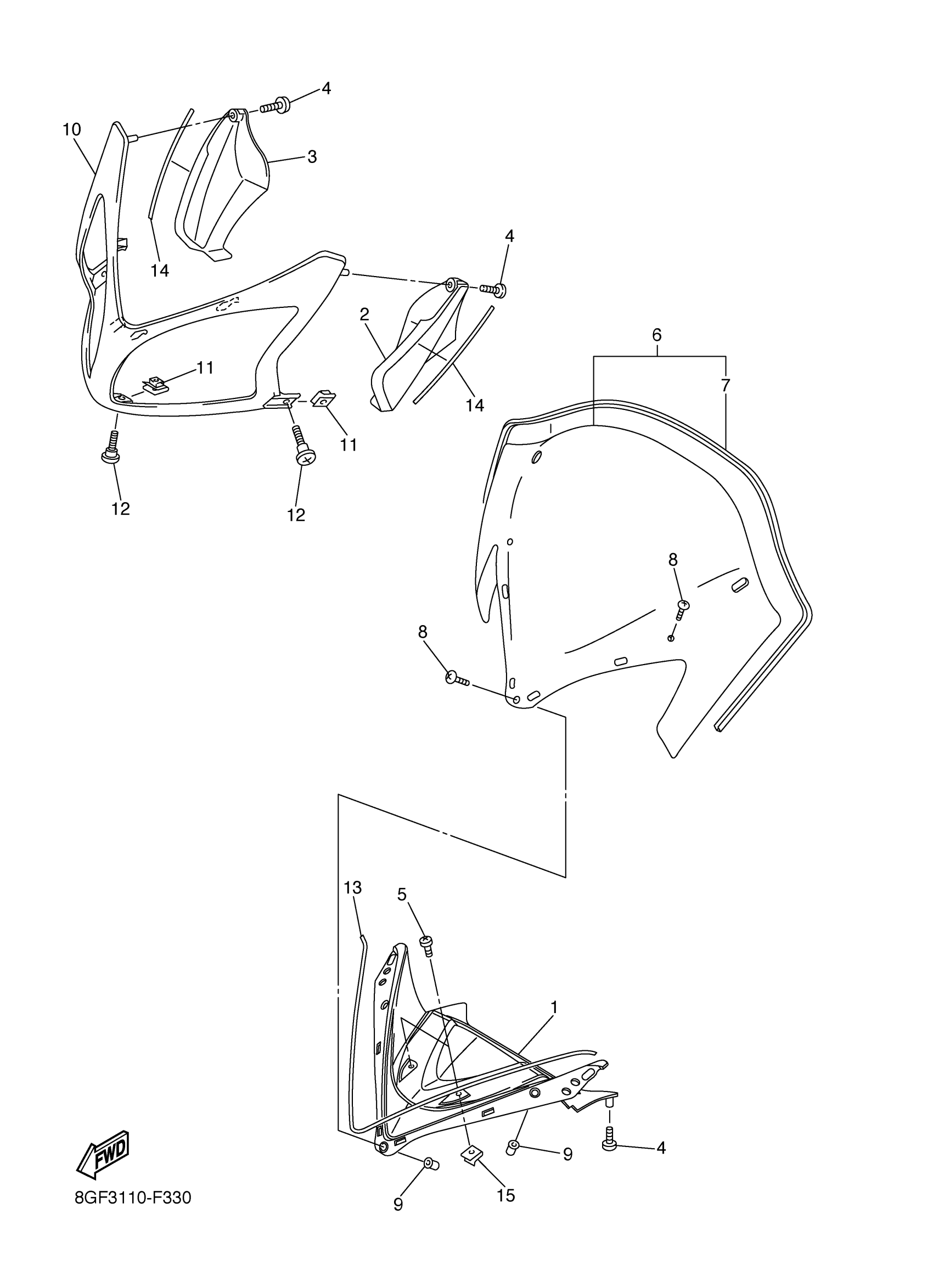

2007 Yamaha Nytro (RS90NW) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8FA-77251-01-00

1

$230.71

In stock

2

PLATE 1

8FA-77185-00-00

1

$46.40

In stock

3

PLATE 2

8FA-77186-00-00

1

$46.37

In stock

4

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

5

SCREW, BINDING

98907-06014-00

1

$5.60

In stock

6

WINDSCREEN COMP.

8GF-K72A0-20-00

1
Out of stock

7

.. TRIM, UPPER

8GF-K7213-00-00

1
Out of stock

8

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

9

NUT(1KT)

90179-05523-00

1

$4.33

In stock

10

FAIRING

8FA-77231-A1-33

1
Out of stock

11

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

12

SCREW, BINDING

90154-06009-00

1

$2.92

In stock

13

TRIM, LOWER

8FA-77214-00-00

1

$2.92

In stock

14

TRIM 3

8FA-77215-00-00

1

$1.54

In stock

15

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
