2007 Yamaha Vector Mountain (RS90MW) Track Drive 2 Diagram

← All diagrams

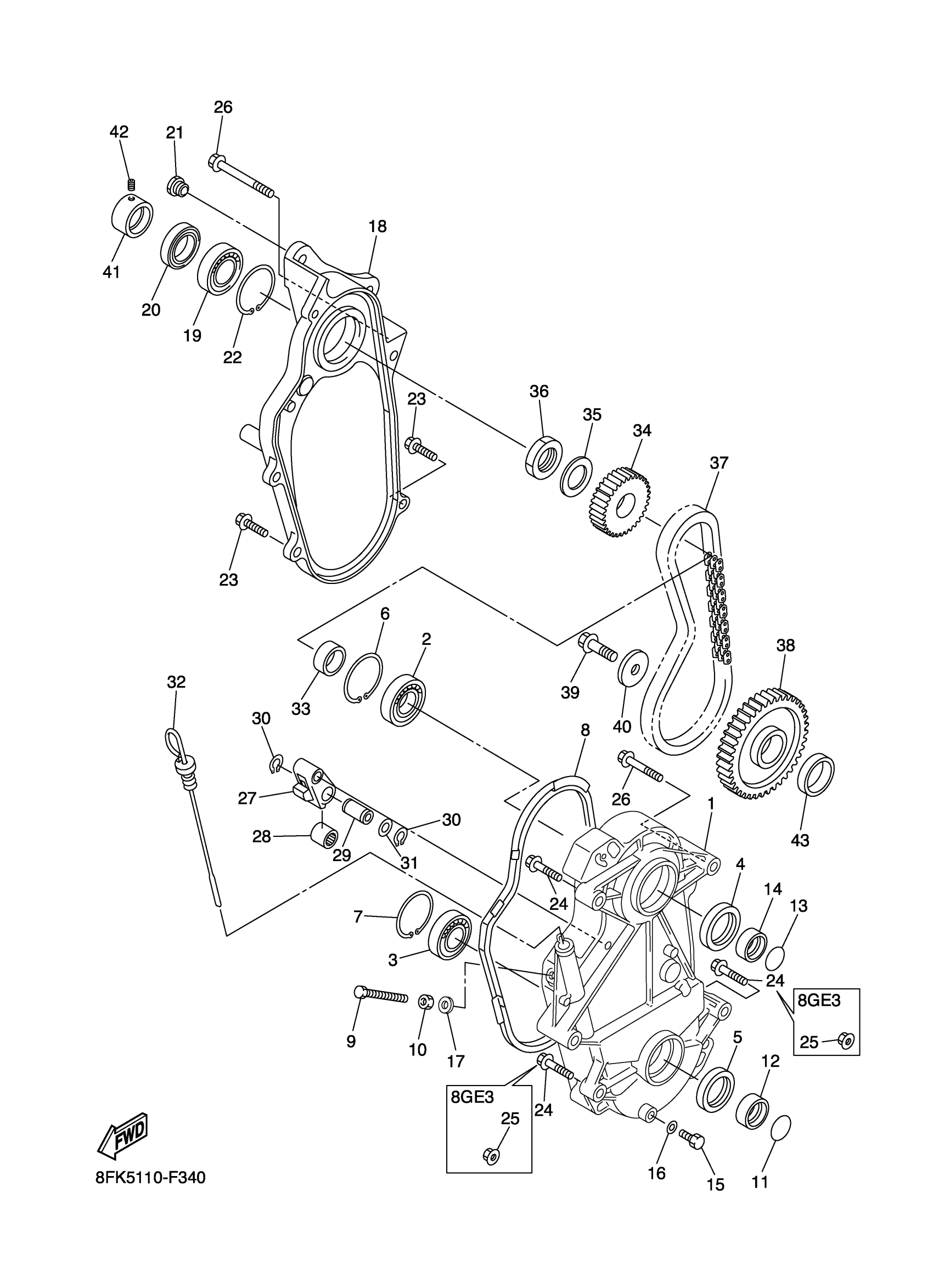

Find the part on the Track Drive 2 diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Vector Mountain (RS90MW) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8FP-47541-11-00

—
Out of stock

2

BEARING (5X5)

93306-20627-00

1
Out of stock

3

BEARING

93306-20592-00

1
Out of stock

4

OIL SEAL

93102-40014-00

1
Out of stock

5

OIL SEAL

93102-35010-00

1
Out of stock

6

CIRCLIP(MF1)

99009-62500-00

1
Out of stock

7

CIRCLIP(26H)

99009-52500-00

1
Out of stock

8

RING, HOUSING

8FP-47558-10-00

1
Out of stock

9

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

10

NUT (3WP1)

95317-10700-00

1
Out of stock

11

O-RING (169)

93210-25071-00

1
Out of stock

12

COLLAR(8CJ)

90387-2508C-00

1
Out of stock

13

O-RING (498)

93210-29282-00

1
Out of stock

14

COLLAR

90387-30004-00

—
Out of stock

15

BOLT(8BC)

97007-08014-00

1
Out of stock

16

WASHER, SEAL(8AB)

90210-08017-00

—
Out of stock

17

WASHER, PLATE(56J)

90201-106H5-00

—
Out of stock

18

CAP, HOUSING

8ES-47543-01-00

1
Out of stock

18

CAP, HOUSING

8ES-47543-01-00

1
Out of stock

19

BEARING

93306-20532-00

—
Out of stock

20

OIL SEAL

93102-35010-00

1
Out of stock

20

OIL SEAL

93102-35473-00

—
Out of stock

21

NUT(8CJ)

90179-10679-00

—
Out of stock

22

CIRCLIP(26H)

99009-52500-00

1
Out of stock

23

BOLT, FLANGE

95817-08035-00

—
Out of stock

24

BOLT, FLANGE(4GB)

95817-10045-00

—
Out of stock

24

BOLT, FLANGE(4GB)

95817-10045-00

—
Out of stock

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

26

BOLT,FLANGE

95817-10090-00

—
Out of stock

26

BOLT,FLANGE

95817-10090-00

—
Out of stock

27

HOLDER

8ES-47613-00-00

—
Out of stock

28

BEARING

93311-32685-00

—
Out of stock

29

COLLAR

90387-22005-00

—
Out of stock

30

CIRCLIP

99009-26400-00

—
Out of stock

31

WASHER, PLATE

90201-266P2-00

1
Out of stock

32

LEVEL, OIL

8FA-47546-01-00

—
Out of stock

33

COLLAR

90387-30005-00

—
Out of stock

34

SPROCKET, CHAIN DRIVE

8FA-17682-00-00

—
Out of stock

34

SPROCKET, CHAIN DRIVE

8FA-17682-80-00

—
Out of stock

35

WASHER, CONICAL SPRING

90208-28001-00

1
Out of stock

36

NUT

90170-28009-00

—
Out of stock

37

CHAIN

94890-09068-00

—
Out of stock

38

SPROCKET, CHAIN DRIVEN (40T)

8DW-47587-01-00

—
Out of stock

39

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

40

WASHER, PLATE (856)

90201-10321-00

—
Out of stock

41

COLLAR

90387-25009-00

—
Out of stock

42

BOLT, SET

90113-06006-00

—
Out of stock

43

COLLAR

90387-2508B-00

1
Out of stock
