2007 Yamaha Vector Mountain (RS90MW) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

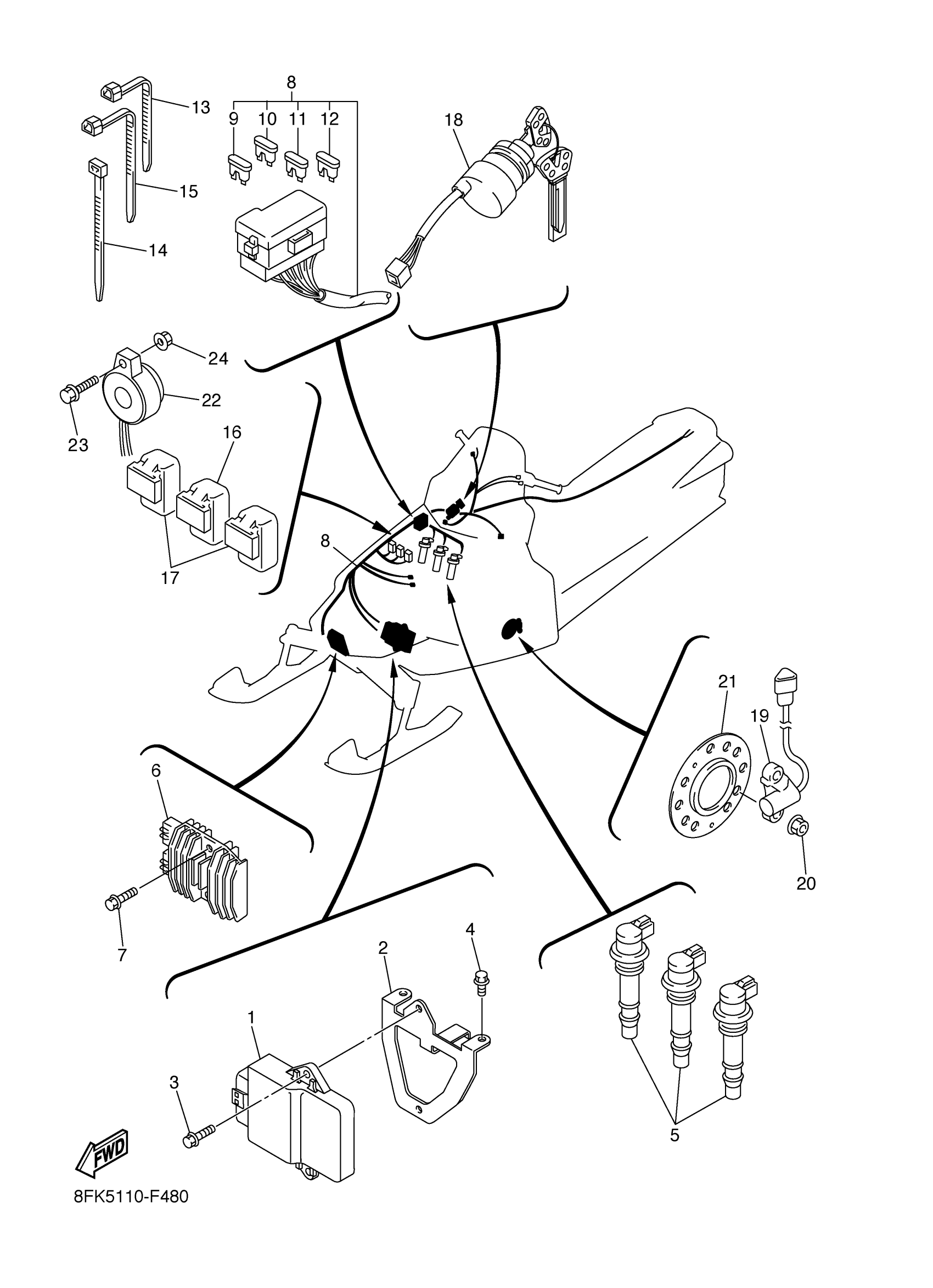

2007 Yamaha Vector Mountain (RS90MW) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITOR UNIT ASSY

8ET-82305-20-00

—

$676.99

In stock

2

BRACKET, UNIT

8ES-85991-00-00

1

$12.26

In stock

3

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

4

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock

5

IGNITION COIL ASSY

8ES-82310-00-00

1

$137.01

In stock

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

1
Out of stock

7

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

8

WIRE HARNESS ASSY

8GE-82590-10-00

1
Out of stock

8

WIRE HARNESS ASSY

8GF-82590-10-00

—

$381.22

In stock

9

FUSE

5JJ-82151-20-00

1

$6.42

In stock

10

. FUSE (10A)

67F-82151-40-00

1

$6.67

In stock

11

FUSE (15A)

67F-82151-50-00

1

$3.71

In stock

12

. FUSE (3A)

67F-82151-30-00

1

$4.89

In stock

13

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

14

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

15

CLAMP

90464-13077-00

—

$6.68

In stock

16

RELAY ASSY

5DM-81950-01-00

—

$24.72

In stock

17

RELAY ASSY (8DM-11)

8DM-81950-11-00

—

$23.86

In stock

18

MAIN SWITCH ASSY

8FJ-82510-00-00

—

$96.63

In stock

19

SENSOR, SPEED

8FP-83755-01-00

—

$171.18

In stock

20

NUT, NYLON

95717-08300-00

—

$2.57

In stock

21

HOUSING, FRONT AXLE

8EK-47551-00-00

—

$8.97

In stock

22

BUZZER

8CW-83383-00-00

—

$141.28

In stock

23

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

24

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
