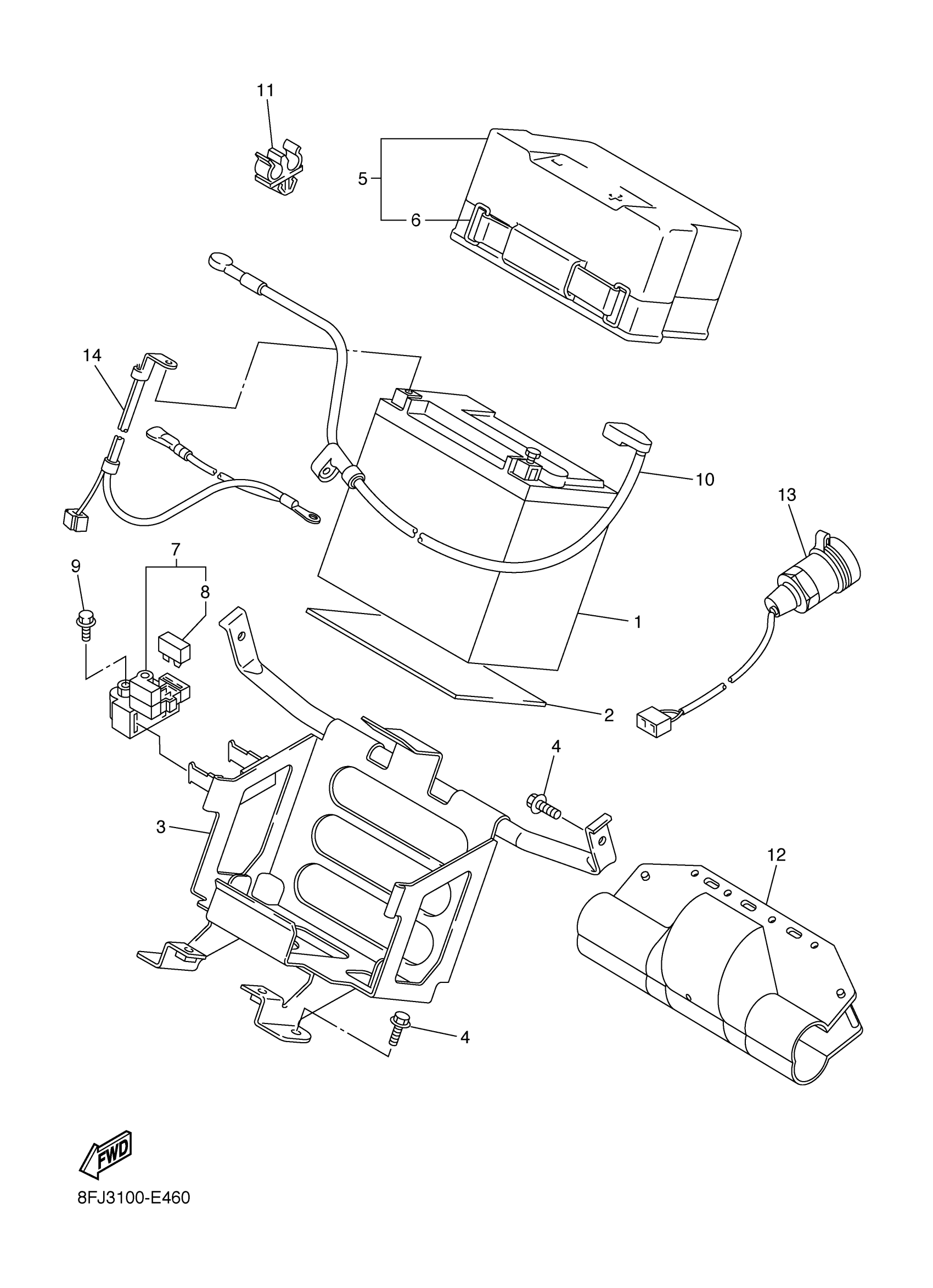

Find the part on the Electrical 2 diagram for your 2006 Yamaha Vector Mountain Se (RS90MSL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Vector Mountain Se (RS90MSL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

1
Out of stock

2

SEAT, BATTERY

8FA-82122-00-00

—
Out of stock

3

BRACKET, BATTERY

8ES-2199G-00-00

—
Out of stock

4

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

5

COVER, BATTERY

8FA-82129-00-00

1
Out of stock

6

BAND, BATTERY

8DM-82131-10-00

1
Out of stock

7

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

1
Out of stock

8

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

9

BOLT, SMALL FLANGE

95027-06008-00

1
Out of stock

10

WIRE, PLUS LEAD

8FA-82115-01-00

1
Out of stock

11

CLAMP(87A)

90464-08126-00

1
Out of stock

12

COVER

8FP-8252U-00-00

—
Out of stock

13

TERMINAL COMP.

8FP-8254B-00-00

—
Out of stock

14

WIRE, MINUS LEAD

8ES-82116-01-00

1
Out of stock
