2005 Yamaha RS Vector Mountain (RS90MK) Valve Diagram

← All diagrams

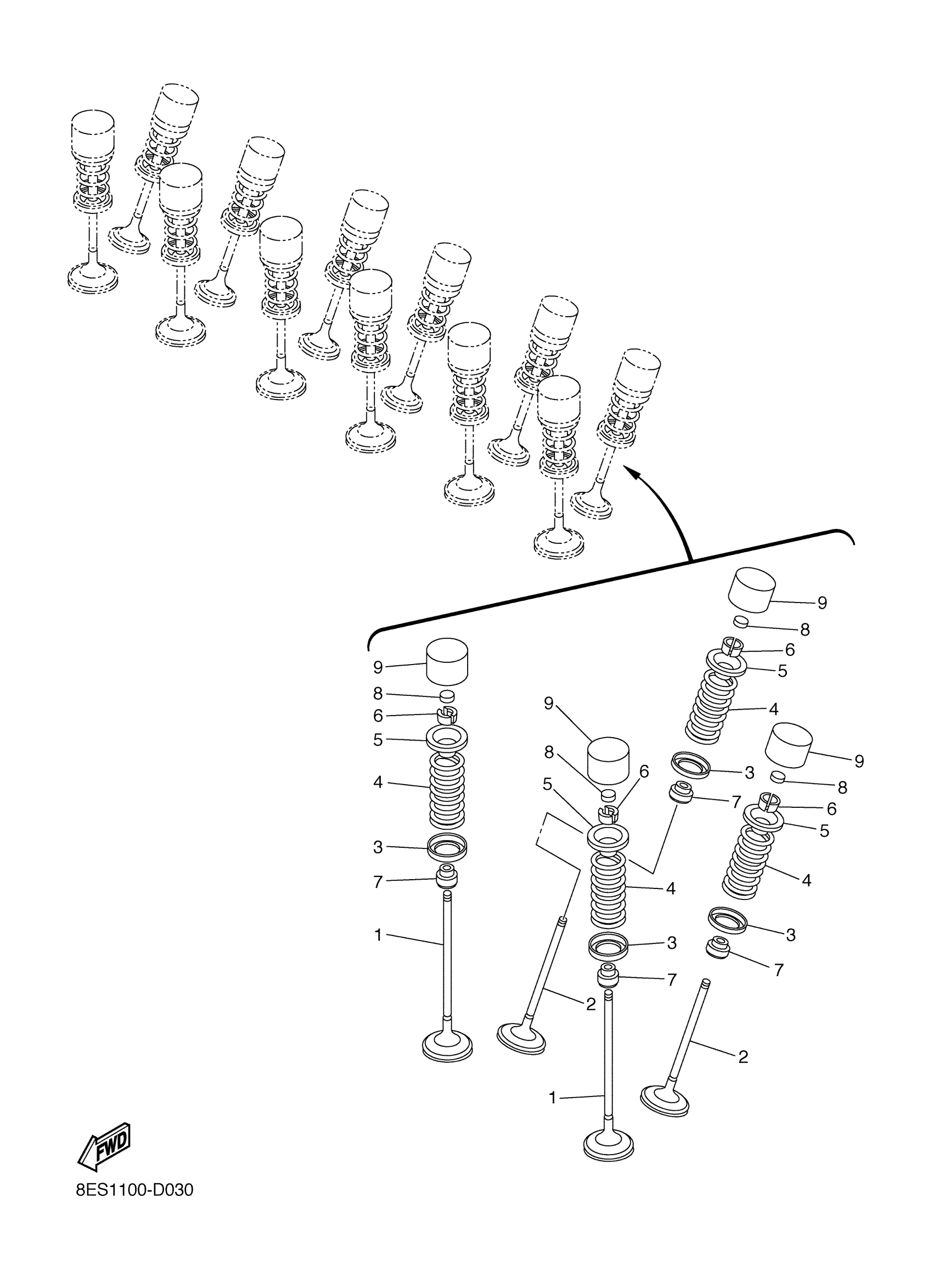

Find the part on the Valve diagram for your 2005 Yamaha RS Vector Mountain (RS90MK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector Mountain (RS90MK) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

5JW-12111-00-00

1
Out of stock

2

VALVE, EXHAUST

5JW-12121-02-00

—
Out of stock

3

SEAT, VALVE SPRING

5JW-12116-00-00

1
Out of stock

4

SPRING, VALVE INNER

5JW-12113-00-00

1
Out of stock

5

RETAINER, VALVE SPRING

5JW-12117-00-00

1
Out of stock

6

COTTER, VALVE

1AA-12118-00-00

1
Out of stock

7

SEAL, VALVE STEM

33M-12119-00-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12168-00-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12168-20-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12168-40-00

1
Out of stock

8

PAD, ADJUSTING (1.35)

3LD-12168-60-00

1
Out of stock

8

PAD, ADJUSTING (1.40)

3LD-12168-80-00

1
Out of stock

8

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

1
Out of stock

8

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

1
Out of stock

8

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

1
Out of stock

8

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

1
Out of stock

8

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12168-R1-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12168-U1-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12168-W1-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12168-Y1-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12169-11-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12169-31-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12169-50-00

—
Out of stock

8

PAD, ADJUSTING

3LD-12169-70-00

—
Out of stock

8

PAD, ADJUSTING (2.10)

3LD-12169-90-00

1
Out of stock

8

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12169-G0-00

—
Out of stock

8

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

1
Out of stock

8

PAD, ADJUSTING

3LD-12169-L0-00

—
Out of stock

8

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

1
Out of stock

8

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

1
Out of stock

9

LIFTER, VALVE

5EB-12153-09-00

—
Out of stock

9

LIFTER, VALVE

5EB-12153-19-00

—
Out of stock
