2005 Yamaha RS Vector Mountain (RS90MK) Electrical 2 Diagram

← All diagrams

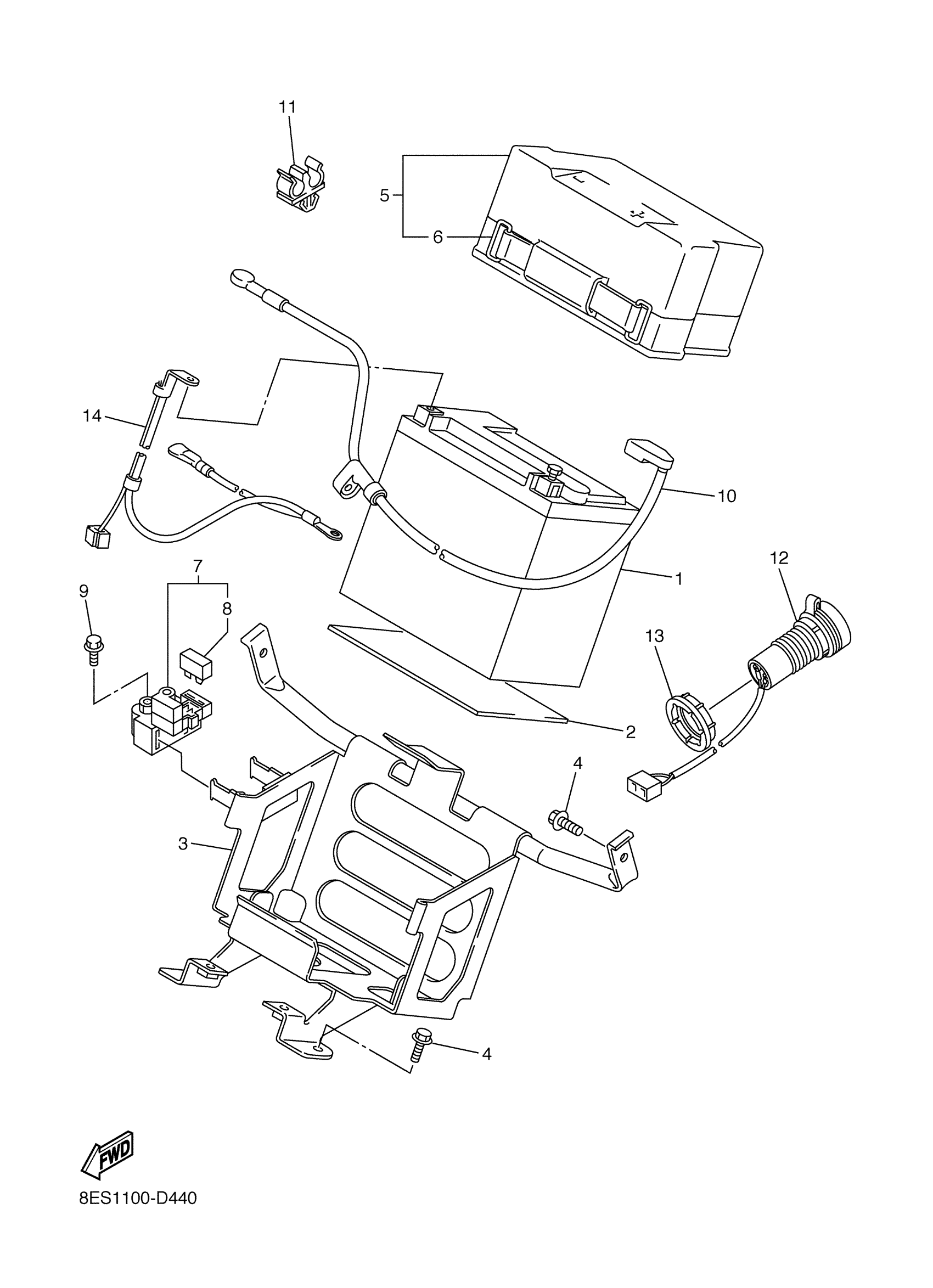

Find the part on the Electrical 2 diagram for your 2005 Yamaha RS Vector Mountain (RS90MK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector Mountain (RS90MK) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$165.99

In stock

2

SEAT, BATTERY

8FA-82122-00-00

—

$6.11

In stock

3

BRACKET, BATTERY

8ES-2199G-00-00

—

$111.51

In stock

4

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

5

COVER, BATTERY

8FA-82129-00-00

1

$36.38

In stock

6

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

7

1

$128.29

In stock

8

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

9

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

10

WIRE, PLUS LEAD

8FA-82115-01-00

1
Out of stock

11

CLAMP(87A)

90464-08126-00

1
Out of stock

12

TERMINAL COMP.

8FP-8254B-00-00

—

$148.14

In stock

13

NUT

5GH-82114-00-00

—

$21.35

In stock

14

WIRE, MINUS LEAD

8ES-82116-01-00

1
Out of stock
