2008 Yamaha RS Vector LTX (RS90LTXB) Frame Diagram

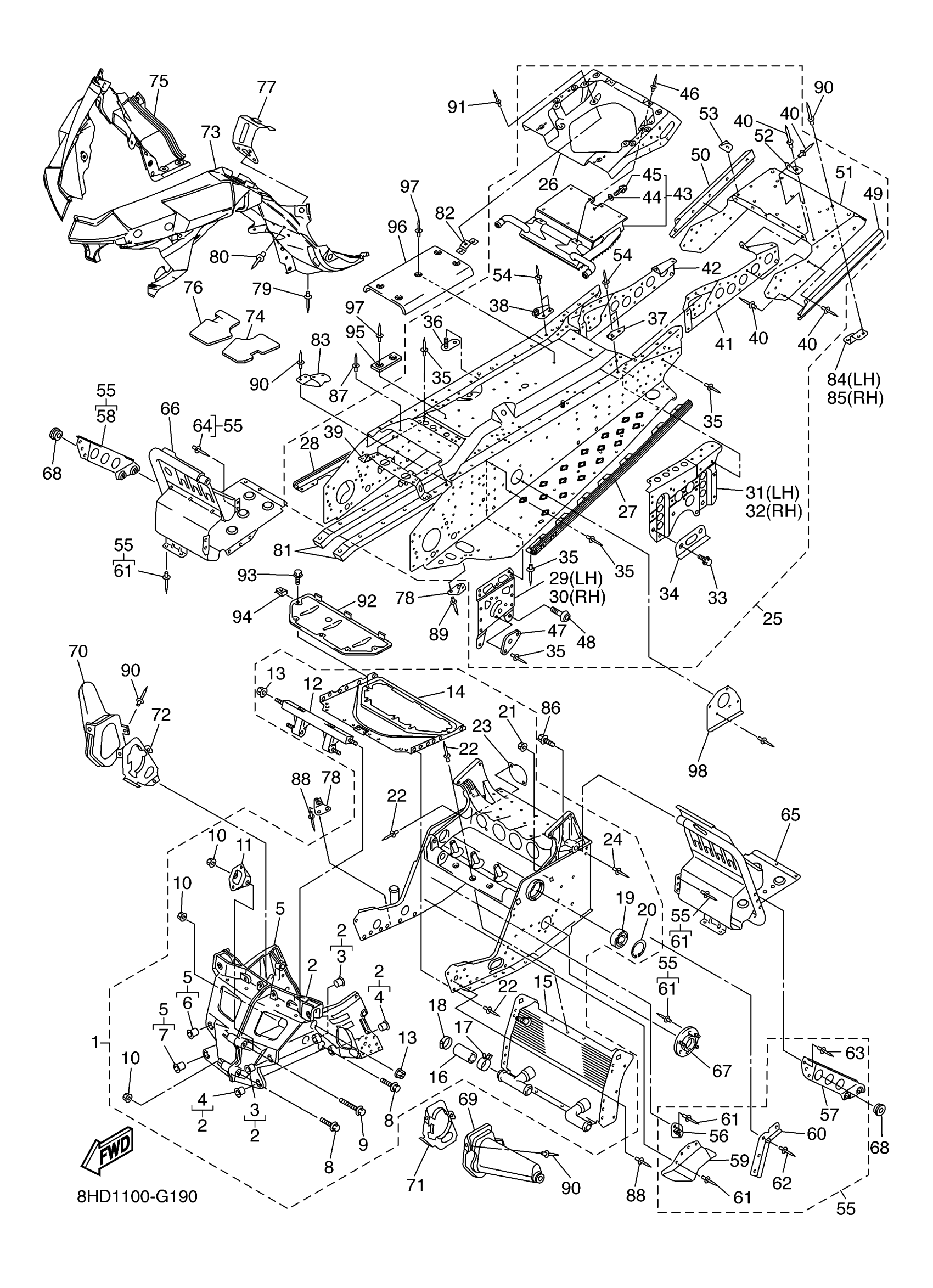

Find the part on the Frame diagram for your 2008 Yamaha RS Vector LTX (RS90LTXB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
8GM-21940-00-00
5
BULKHEAD 2
8FA-W2198-20-00
14
. PROTECTOR
8FA-2193A-00-00
15
HEAT EXCHANGER ASSY
8FA-12440-00-00
18
HOSE CLAMP ASSY
90450-35001-00
25
REAR FRAME COMP.
8FL-21950-10-00
25
REAR FRAME COMP.
8GX-21950-00-00
29
. BRACKET, MAIN TRACK 1
8FU-21943-00-00
30
BRACKET, MAIN TRACK 2
8FU-21953-00-00
34
.. PATCH 8
8FP-21988-00-00
48
BOLT, BUTTON
92014-10020-00
55
FRAME CONNECTION KIT
8FP-W2195-11-00
80
RIVET, BLIND
90267-47200-00
83
BRACKET 7
8FU-2197N-00-00
92
PROTECTOR, FRAME
8FA-2197E-01-00
98
PATCH 2
8FP-21962-00-00
