2005 Yamaha RS Vector (RS90K) Water Pump Diagram

← All diagrams

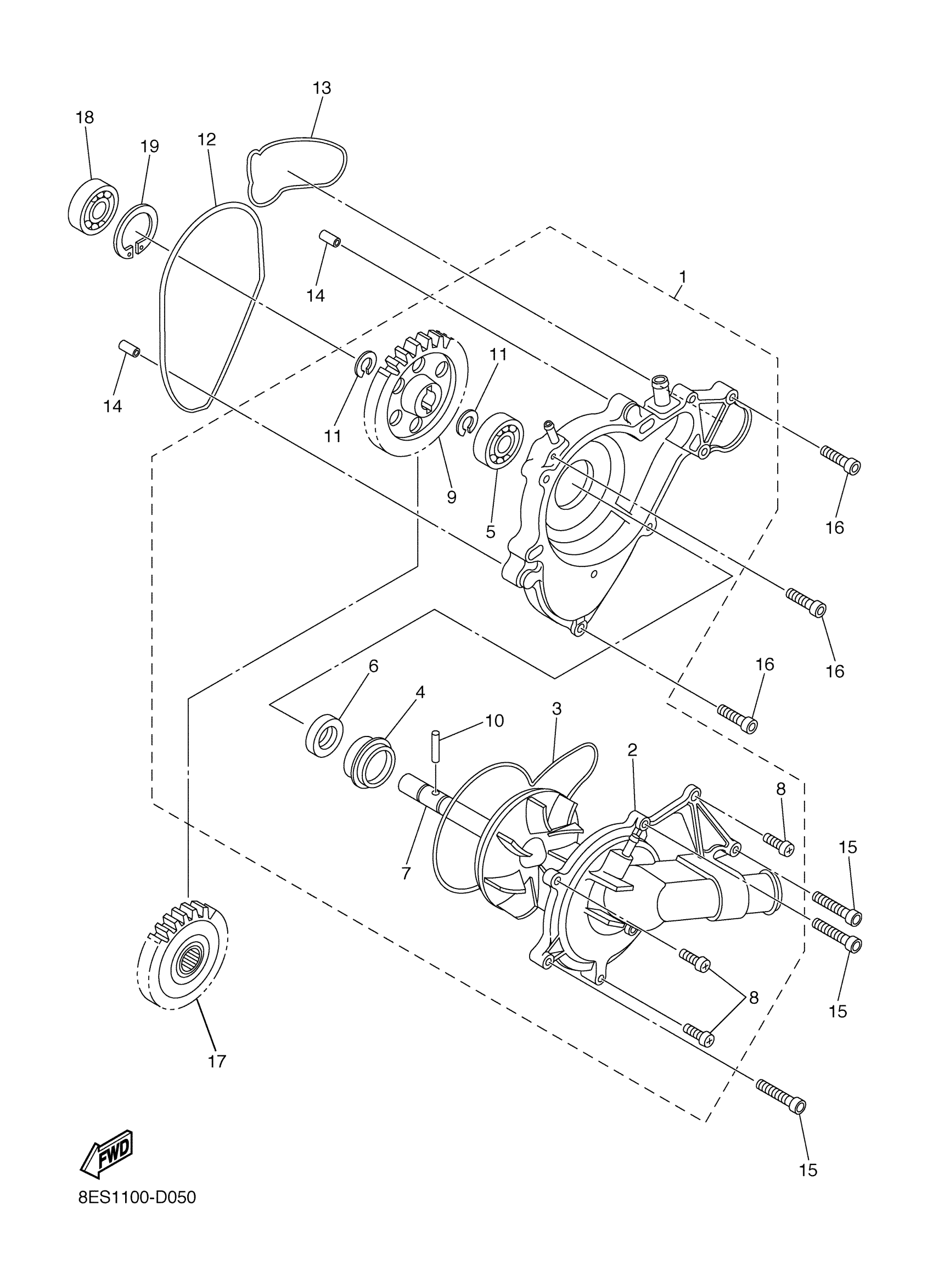

Find the part on the Water Pump diagram for your 2005 Yamaha RS Vector (RS90K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector (RS90K) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER PUMP ASSY

8ES-12420-02-00

1
Out of stock

2

COVER, HOUSING

8ES-12422-00-00

—
Out of stock

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

1
Out of stock

4

SEAL, MECHANICAL

8ES-12438-00-00

1
Out of stock

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1
Out of stock

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

1
Out of stock

7

IMPELLER SHAFT ASSY

99999-03853-00

—
Out of stock

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

1
Out of stock

9

GEAR, IMPELLER SHAFT

8ES-12459-00-00

—
Out of stock

10

PIN, DOWEL (409)

93604-16092-00

1
Out of stock

11

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

12

GASKET

8ES-12435-00-00

1
Out of stock

13

GASKET

8ES-12434-00-00

1
Out of stock

14

PIN, DOWEL

99530-08012-00

1
Out of stock

15

BOLT,SOCKET

91317-06040-00

1
Out of stock

16

BOLT,SOCKET

91317-06025-00

—
Out of stock

17

GEAR, DRIVE

8ES-12436-00-00

—
Out of stock

18

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1
Out of stock

19

CIRCLIP(2FL)

93420-26077-00

—
Out of stock
