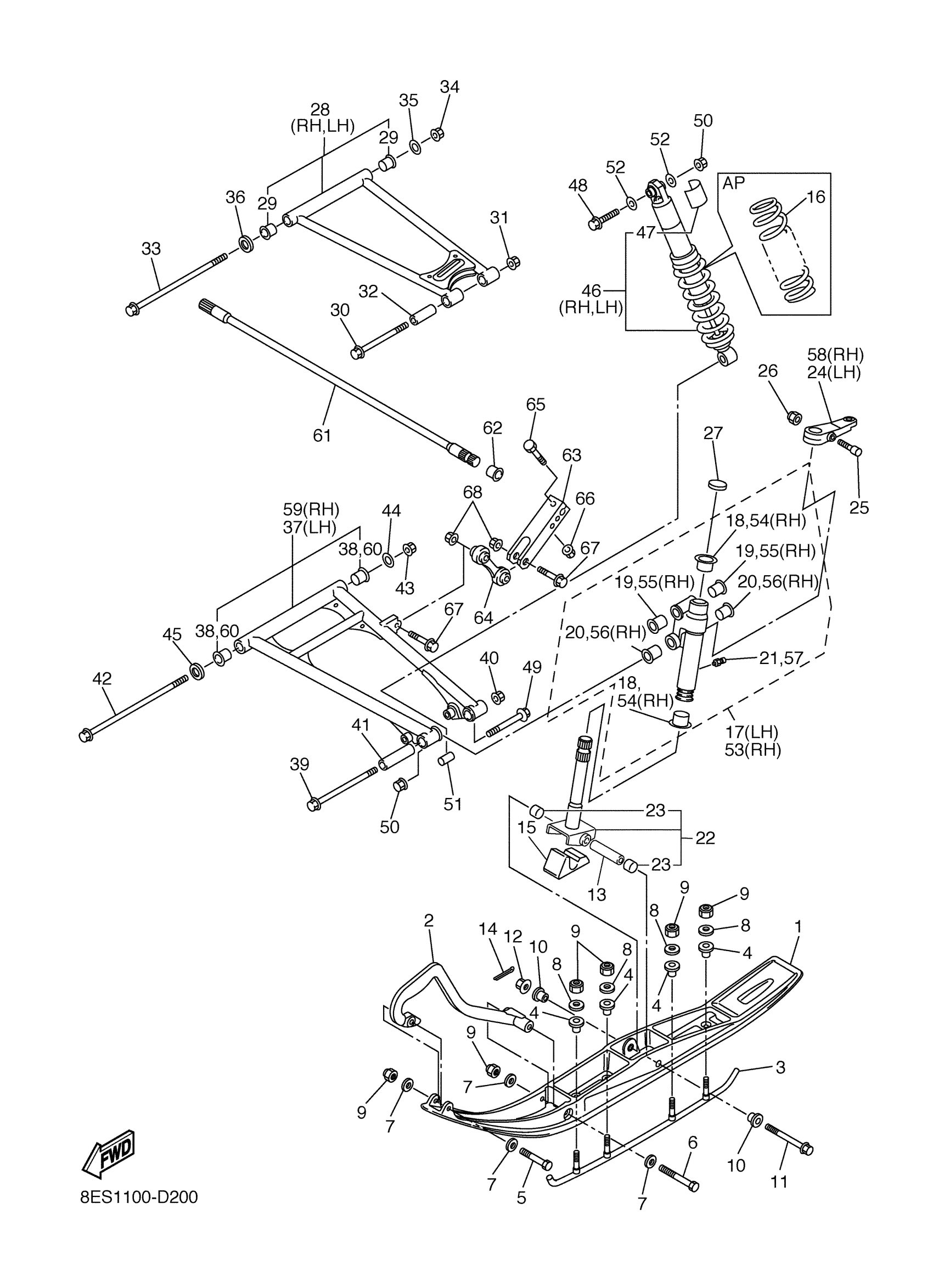

2005 Yamaha RS Vector (RS90K) SKI Diagram
Find the part on the SKI diagram for your 2005 Yamaha RS Vector (RS90K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
SKI 1
8ES-23711-00-BK
1
Out of stock
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
1
Out of stock
3
SKI RUNNER KIT
SMA-F3731-EK-00
1
Out of stock
10
. COLLAR 1
8EX-F3754-00-00
1
Out of stock
16
SPRING ASSY 1 (K=23N/MM)
8CX-23760-10-00
1
Out of stock
17
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-00-00
—
Out of stock
37
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-00-00
1
Out of stock
46
ABSORBER ASSY 1 (HEAT RED) (DEEP PURPLISH BLUE METALLIC C)
8ES-2376A-00-00
1
Out of stock
53
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-00-00
1
Out of stock
67
BOLT, FLANGE(4FM)
95814-08030-00
—
Out of stock
