2005 Yamaha RS Vector (RS90K) Shroud Diagram

← All diagrams

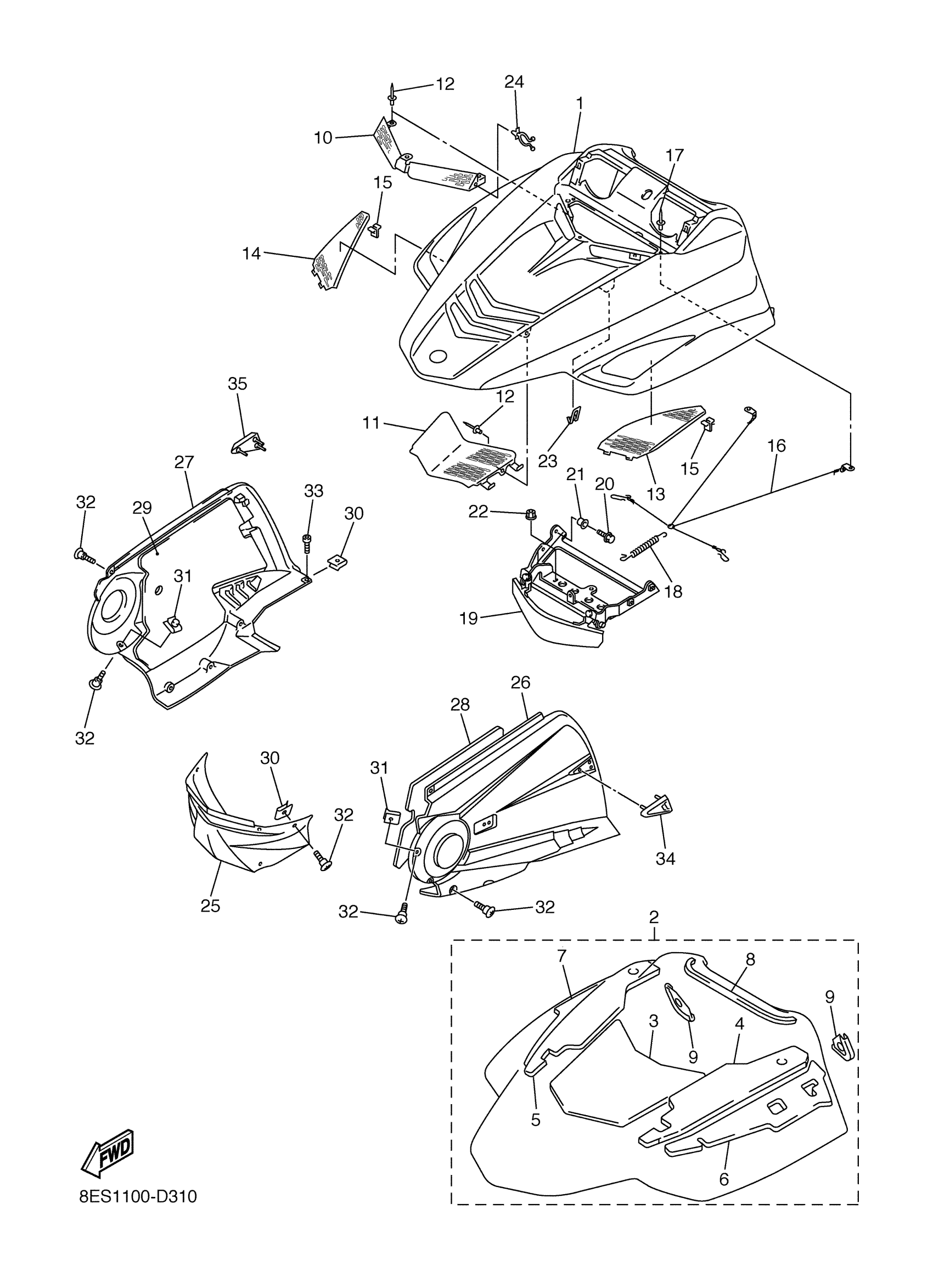

Find the part on the Shroud diagram for your 2005 Yamaha RS Vector (RS90K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector (RS90K) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8FA-77111-01-P1

1
Out of stock

2

LINING SET

8FA-W7726-11-00

—
Out of stock

3

DAMPER, NOISE 11

8FA-77271-01-00

1
Out of stock

4

DAMPER, NOISE 12

8FA-77272-01-00

—
Out of stock

5

DAMPER, NOISE 13

8FA-77273-01-00

1
Out of stock

6

DAMPER, NOISE 14

8FA-77274-01-00

—
Out of stock

7

DAMPER, NOISE 15

8FA-77275-01-00

—
Out of stock

8

TRIM 1

8FA-77165-00-00

1
Out of stock

9

TRIM 3

8FA-77167-10-00

—
Out of stock

10

LOUVER 3

8ES-77133-00-00

1
Out of stock

11

LOUVER 4

8ES-77134-00-00

1
Out of stock

12

RIVET

90269-06081-00

1
Out of stock

13

LOUVER 5

8ES-77109-00-00

—
Out of stock

14

LOUVER 6

8ES-77108-00-00

—
Out of stock

15

CLIP

90468-06001-00

1
Out of stock

16

STOPPER, SHROUD

8FA-77118-00-00

—
Out of stock

17

RIVET, BLIND

90267-48018-00

—
Out of stock

18

CLAMP, ROD

89A-77159-00-00

—
Out of stock

19

HINGE ASSY

8FA-77140-00-00

—
Out of stock

20

BOLT, FLANGE

95817-06016-00

—
Out of stock

21

COLLAR (8G8)

90387-06681-00

—
Out of stock

22

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

23

CLAMP 1

8FA-77135-00-00

—
Out of stock

24

CLAMP

90464-15M27-00

1
Out of stock

25

PANEL, SUB FRAME 1

8FA-21912-00-00

—
Out of stock

26

HOOD 3

8ES-2197H-01-00

—
Out of stock

27

HOOD 4

8FA-2198H-02-00

—
Out of stock

28

DAMPER, NOISE 16

8ES-77276-00-00

—
Out of stock

29

DAMPER, NOISE 17

8FA-77277-01-00

—
Out of stock

30

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

31

NUT, SPRING

90183-06100-00

—
Out of stock

32

SCREW, BINDING

90154-06009-00

—
Out of stock

33

SCREW, BINDING

98907-06014-00

—
Out of stock

34

PROTECTOR, SIDE 1

8FA-77561-00-00

—
Out of stock

35

PROTECTOR, SIDE 2

8FA-77562-00-00

—
Out of stock
