2005 Yamaha RS Vector (RS90K) Frame Diagram

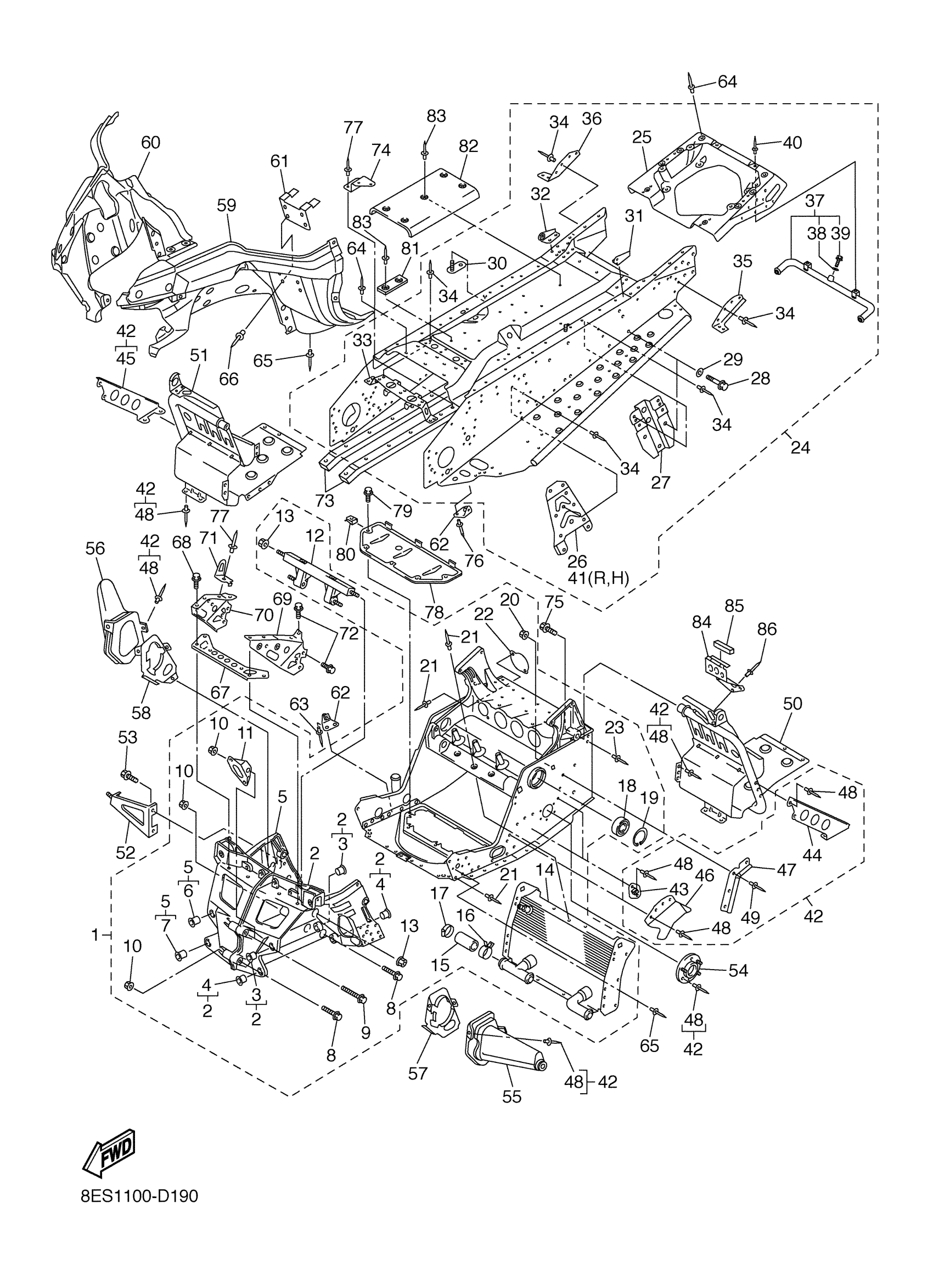

Find the part on the Frame diagram for your 2005 Yamaha RS Vector (RS90K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
FRONT FRAME COMP.
8ES-21940-01-00
1
Out of stock
5
BULKHEAD 2
8FA-W2198-20-00
—
Out of stock
14
HEAT EXCHANGER ASSY
8FA-12440-00-00
1
Out of stock
17
HOSE CLAMP ASSY
90450-35001-00
—
Out of stock
26
BRACKET, MAIN TRACK 1
8ES-21943-01-00
—
Out of stock
27
. BRACKET, RR TRACK SUSPENSION
8ES-21944-00-00
1
Out of stock
42
FRAME CONNECTION KIT
8ES-W2195-01-00
1
Out of stock
45
BRACKET, 6
8ES-2197M-01-00
—
Out of stock
46
COVER 2
8FU-2198G-00-00
—
Out of stock
66
RIVET, BLIND
90267-47200-00
—
Out of stock
78
PROTECTOR, FRAME
8FA-2197E-01-00
1
Out of stock
