2005 Yamaha RS Vector (RS90K) Electrical 3 Diagram

← All diagrams

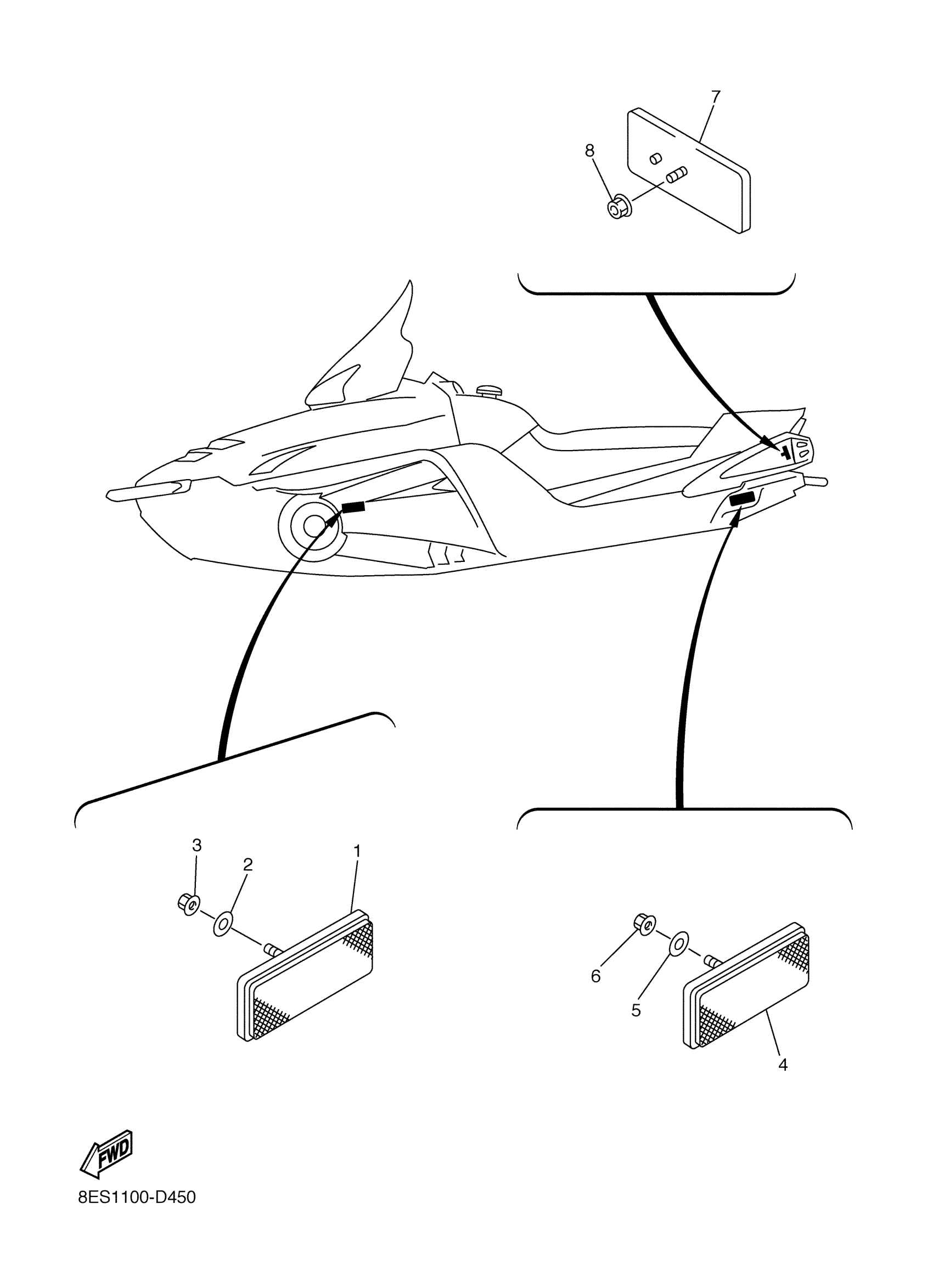

Find the part on the Electrical 3 diagram for your 2005 Yamaha RS Vector (RS90K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RS Vector (RS90K) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT REFLECTOR ASSY

11H-85110-01-00

1

$20.92

In stock

2

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

3

NUT, NYLON

95707-05300-00

1

$2.74

In stock

4

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

5

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

6

NUT, NYLON

95707-05300-00

1

$2.74

In stock

7

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

8

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
