2007 Yamaha Vector GT (RS90GTW) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 2007 Yamaha Vector GT (RS90GTW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

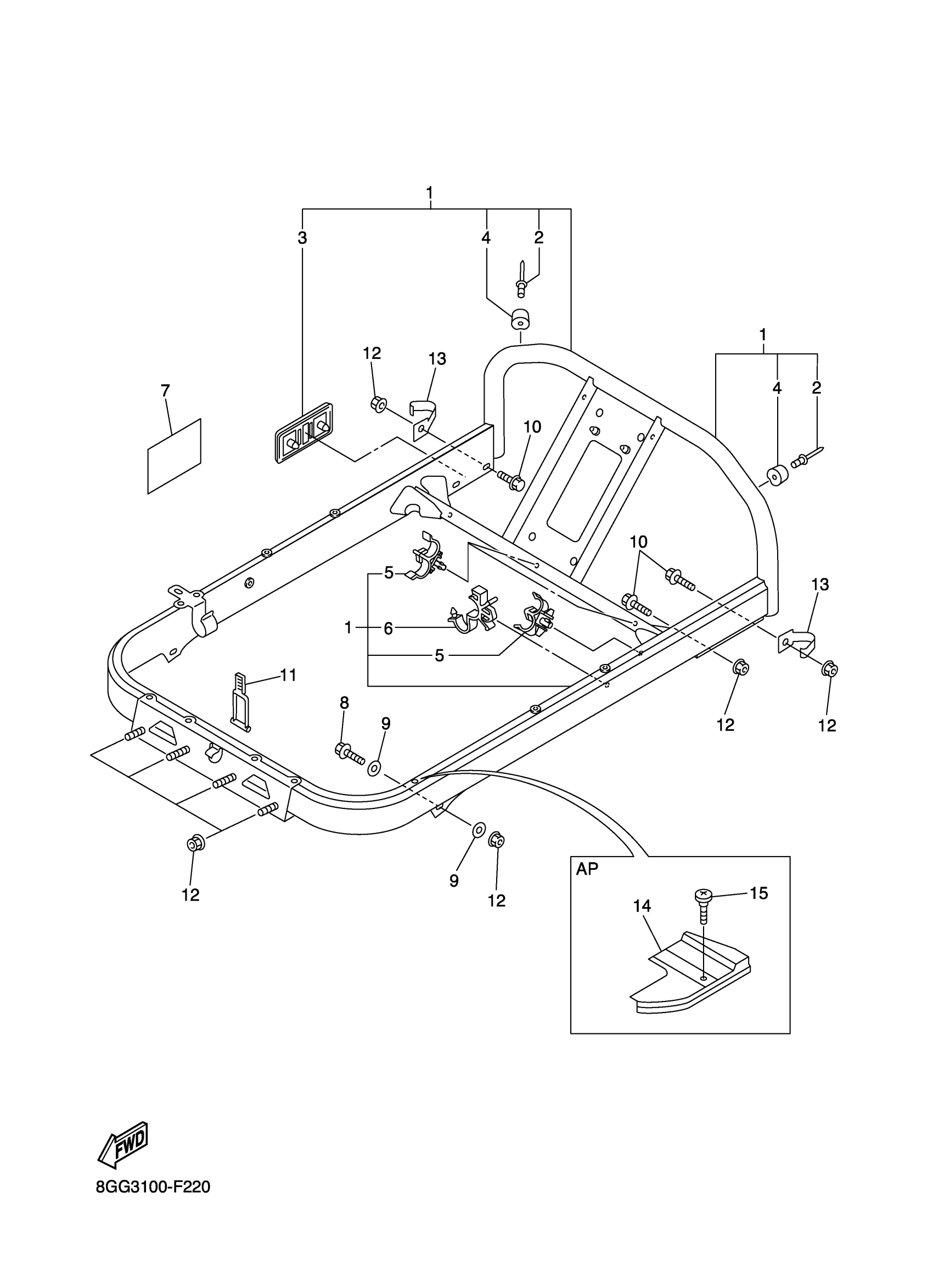

2007 Yamaha Vector GT (RS90GTW) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8ES-23870-02-00

1
Out of stock

2

RIVET, BLIND

90267-47195-00

1
Out of stock

3

BRACKET

8FA-83614-00-00

—
Out of stock

4

DAMPAR

8FA-23858-00-00

1
Out of stock

5

CLAMP

90464-11007-00

1
Out of stock

6

CLAMP

90464-16006-00

1
Out of stock

7

LABEL, CAUTION

8FA-2389C-E0-00

—
Out of stock

8

BOLT, WASHER BASED(JN9)

90105-081A7-00

1
Out of stock

9

WASHER (853)

90201-08326-00

1
Out of stock

10

BOLT, FLANGE(6TA)

95817-08030-00

1
Out of stock

11

LATCH

8FA-2389E-00-00

1
Out of stock

12

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

13

CLAMP

90462-10022-00

—
Out of stock

14

PLATE

8ES-14146-00-00

—
Out of stock

15

SCREW, ROUND HEAD (24R)

90150-06015-00

1
Out of stock
