2011 Yamaha RS Vector GT (RS90GTAS) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2011 Yamaha RS Vector GT (RS90GTAS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

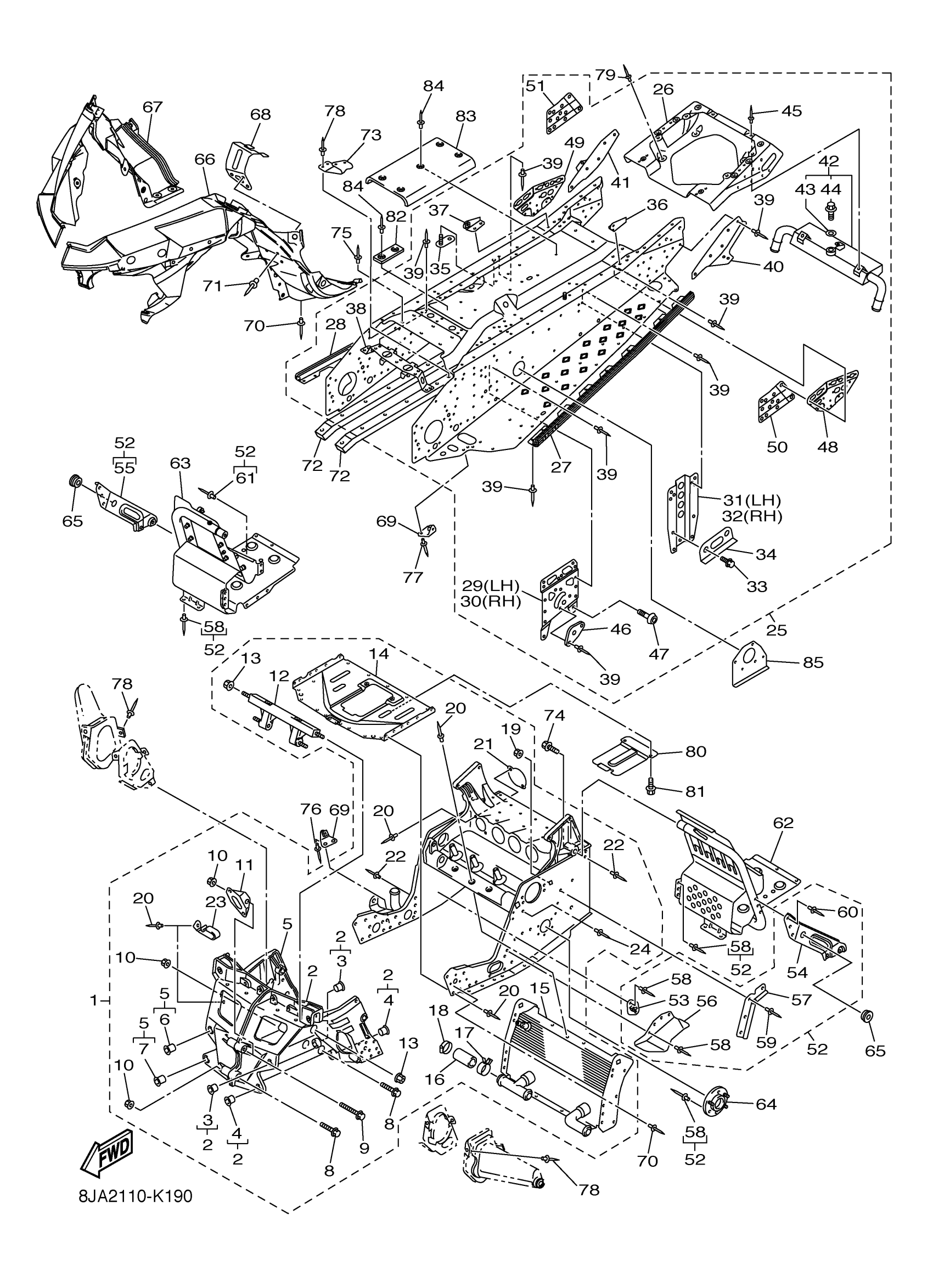

2011 Yamaha RS Vector GT (RS90GTAS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

8JA-21940-00-00

1
Out of stock

2

BULKHEAD

8FA-W2197-13-00

1
Out of stock

3

BUSH, SOLID

90381-15001-00

1
Out of stock

4

BUSH, SOLID

90381-16004-00

1
Out of stock

5

BULKHEAD 2

8FA-W2198-20-00

—
Out of stock

6

BUSH, SOLID

90381-15001-00

1
Out of stock

7

BUSH, SOLID

90381-16004-00

1
Out of stock

8

BOLT, FLANGE

95817-08060-00

1
Out of stock

9

BOLT, WASHER BASED

90105-084A1-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

11

BRACKET, REGULATOR

8FA-2128A-01-00

—
Out of stock

12

BRACKET, STEERING 1

8FG-21947-00-00

1
Out of stock

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

14

PROTECTOR

8FR-2193A-01-00

—
Out of stock

15

HEAT EXCHANGER ASSY

8JA-12440-00-00

—
Out of stock

16

HOSE 7

8FA-12551-00-00

—
Out of stock

17

CLIP (8M6)

90467-28046-00

—
Out of stock

18

HOSE CLAMP ASSY

90450-35001-00

—
Out of stock

19

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

20

RIVET, BLIND

90267-47195-00

—
Out of stock

21

PLATE, COVER

8ES-2131D-00-00

—
Out of stock

22

RIVET, BLIND

90267-48016-00

—
Out of stock

23

CLAMP(51Y)

90465-08277-00

—
Out of stock

24

RIVET, BLIND

90267-48177-00

—
Out of stock

25

REAR FRAME COMP.

8GM-21950-00-00

1
Out of stock

26

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

—
Out of stock

27

REINFORCEMENT, FOOTREST 1

8FG-21926-00-00

—
Out of stock

28

REINFORCEMENT, FOOTREST 2

8FG-21936-00-00

—
Out of stock

29

. BRACKET, MAIN TRACK 1

8FU-21943-00-00

1
Out of stock

30

BRACKET, MAIN TRACK 2

8FU-21953-00-00

—
Out of stock

31

BRACKET, RR.TRACK SUSPENTION 1

8FP-21944-00-00

—
Out of stock

32

BRACKET, RR.TRACK SUSPENTION 2

8FP-21954-00-00

—
Out of stock

33

BOLT, FLANGE

95814-10020-00

—
Out of stock

34

PATCH 8

8FU-21988-01-00

—
Out of stock

35

BRACKET, FUEL TANK 1

8CR-2194N-00-00

—
Out of stock

36

BRACKET 1

8FA-2194X-00-00

—
Out of stock

37

BRACKET 2

8FA-2195X-00-00

—
Out of stock

38

PROTECTOR, MUFFLER

8ES-2194H-00-00

—
Out of stock

39

RIVET, BLIND

90267-47195-00

—
Out of stock

40

PATCH 3

8FU-21963-00-00

—
Out of stock

41

PATCH 4

8FU-21964-00-00

—
Out of stock

42

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

—
Out of stock

43

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

44

BOLT, FLANGE

95817-06016-00

—
Out of stock

45

RIVET, BLIND(3JB)

90267-48095-00

—
Out of stock

46

BRACKET, MAIN TRACK 3

8FU-21919-00-00

—
Out of stock

47

BOLT, BUTTON

92014-10020-00

—
Out of stock

48

REINF., SUB FRAME 1

8FP-21928-00-00

—
Out of stock

49

REINFORCEMENT, SUB FRAME 2

8FP-21938-00-00

—
Out of stock

50

REINFORCEMENT, FRAME REAR 3

8FJ-21924-00-00

—
Out of stock

51

REINFORCEMENT, FRAME REAR 4

8FJ-21934-00-00

—
Out of stock

52

FRAME CONNECTION KIT

8JA-W2195-00-00

—
Out of stock

53

BRACKET, CHAIN HOUSING

8CR-21939-01-00

—
Out of stock

54

BRACKET, 5

8JA-2196M-00-00

—
Out of stock

55

BRACKET, 6

8JA-2197M-00-00

—
Out of stock

56

COVER 2

8FP-2198G-01-00

—
Out of stock

57

CLAMP, WIREHARNESS

8FA-21999-00-00

—
Out of stock

58

RIVET, BLIND

90267-47195-00

—
Out of stock

59

RIVET, BLIND

90267-48018-00

—
Out of stock

60

RIVET, BLIND

90267-48177-00

—
Out of stock

61

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

62

FOOTREST COMP. 1

8JA-21960-00-00

1
Out of stock

63

FOOTREST COMP. 2

8HG-21970-00-00

—
Out of stock

64

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

—
Out of stock

65

GROMMET(4FU)

90480-13567-00

—
Out of stock

66

FRAME UNDER 1

8GM-2196A-01-00

—
Out of stock

67

FRAME, UNDER 2

8FP-2196E-02-00

—
Out of stock

68

BRACKET, GUARD FITTING

8FP-21972-00-00

—
Out of stock

69

BRACKET 3

8FA-2196F-00-00

—
Out of stock

70

RIVET, BLIND

90267-48018-00

—
Out of stock

71

RIVET, BLIND

90267-47200-00

—
Out of stock

72

PROTECTOR, FRAME

8FA-21978-01-00

—
Out of stock

73

BRACKET 7

8FU-2197N-00-00

—
Out of stock

74

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

75

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

76

RIVET, BLIND (22W)

90267-48083-00

—
Out of stock

77

RIVET, BLIND(3JB)

90267-48095-00

—
Out of stock

78

RIVET, BLIND

90267-47195-00

—
Out of stock

79

RIVET, BLIND

90267-48177-00

—
Out of stock

80

PROTECTOR, FRAME FR

8FR-2197E-00-00

—
Out of stock

81

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

82

SPACER

8FA-21998-00-00

—
Out of stock

83

SHIELD, HEAT

8FG-23892-00-00

—
Out of stock

84

RIVET, BLIND (8L0)

90267-48059-00

—
Out of stock

85

PATCH 2

8FR-21962-00-00

—
Out of stock
