2018 Yamaha RS Vector (RS1NJL) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2018 Yamaha RS Vector (RS1NJL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

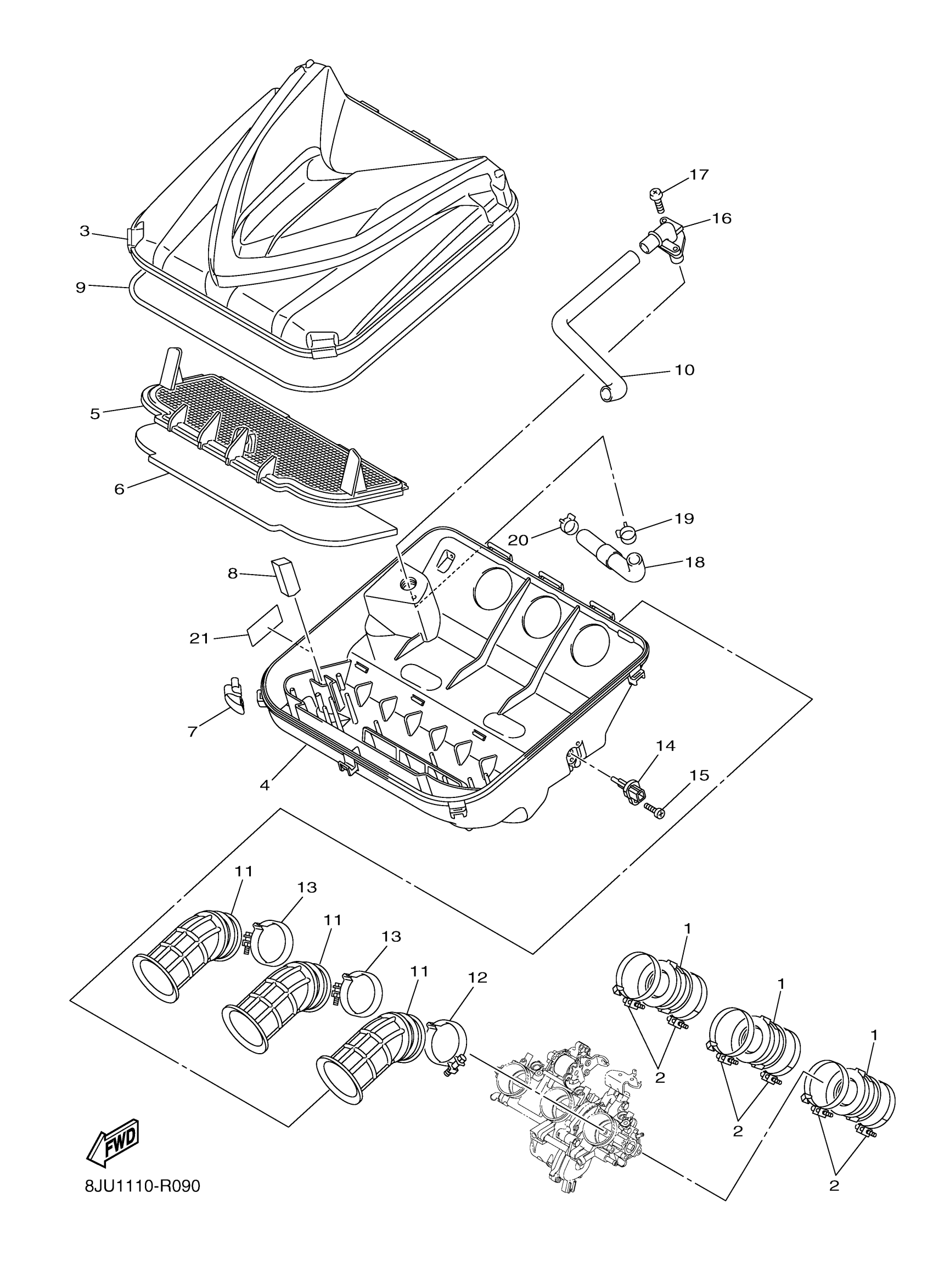

2018 Yamaha RS Vector (RS1NJL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT

8HF-13595-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-60004-00

1
Out of stock

3

SILENCER, INTAKE 1

8HF-14431-00-00

—
Out of stock

4

SILENCER, INTAKE 2

8JU-14441-00-00

—
Out of stock

5

PLATE, ELEMENT

8HF-14472-00-00

—
Out of stock

6

ELEMENT, AIR CLEANER

8HF-14451-00-00

1
Out of stock

7

HOOK

8FA-14436-00-00

1
Out of stock

8

DAMPER 1

8HF-14425-00-00

1
Out of stock

9

SEAL

8HF-14452-00-00

1
Out of stock

10

PIPE

8GM-14419-00-00

—
Out of stock

11

JOINT, AIR CLEANER 1

8HF-14453-00-00

1
Out of stock

12

HOSE CLAMP ASSY

90450-56010-00

—
Out of stock

13

HOSE CLAMP ASSY

90450-56007-00

1
Out of stock

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1
Out of stock

15

SCREW, PANHEAD TAPPING

97702-50520-00

1
Out of stock

16

PIPE, JOINT

8GC-14485-00-00

—
Out of stock

17

SCREW, TRUSS TAP.

97707-50025-00

—
Out of stock

18

PIPE, OIL TANK BREATHER

8GM-21745-00-00

—
Out of stock

19

CLIP

90467-22002-00

1
Out of stock

20

CLIP(34X)

90467-22097-00

—
Out of stock

21

LABEL, CAUTION

8FA-2389C-E0-00

—
Out of stock
