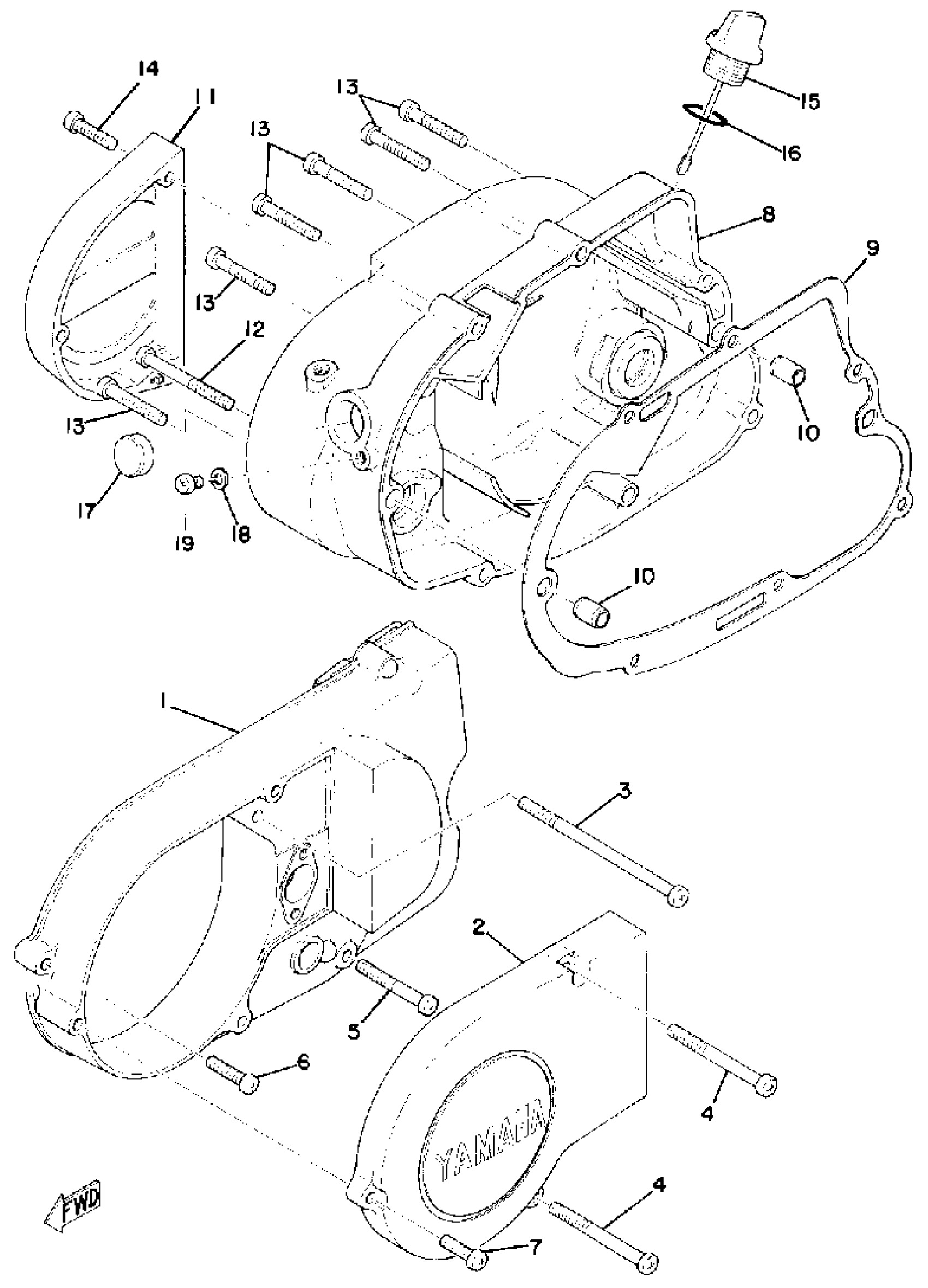

Yamaha RS100C (RS100) 1976 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY L

(463-15410-90-00)

Unavailable

2

COVER, GENERATOR

(463-15415-00-00)

Unavailable

3

SCREW, PAN HEAD(3VM)

98507-06110-00

Unavailable

4

SCREW PAN HEAD

98580-06565-00

Unavailable

5

SCREW PAN HEAD

98580-06545-00

$5.55

6

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

7

SCREW PAN HEAD

98580-06020-00

$4.89

8

COVER, CRANKCASE R

(463-15421-00-00)

Unavailable

9

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

$25.18

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

COVER, OIL PUMP

(463-15416-00-00)

Unavailable

12

SCREW, PANHED (GC2)

98580-06555-00

$4.75

13

SCREW, PAN HEAD(6H4)

97885-06035-00

$5.40

14

SCREW PAN HEAD

98580-06020-00

$4.89

15

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

16

O-RING (646)

93210-19123-00

Unavailable

17

PLUG 363174810000

90338-20023-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

SCREW PAN HEAD

98580-06010-00

Unavailable
