1975 Yamaha RS100 (RS100B) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

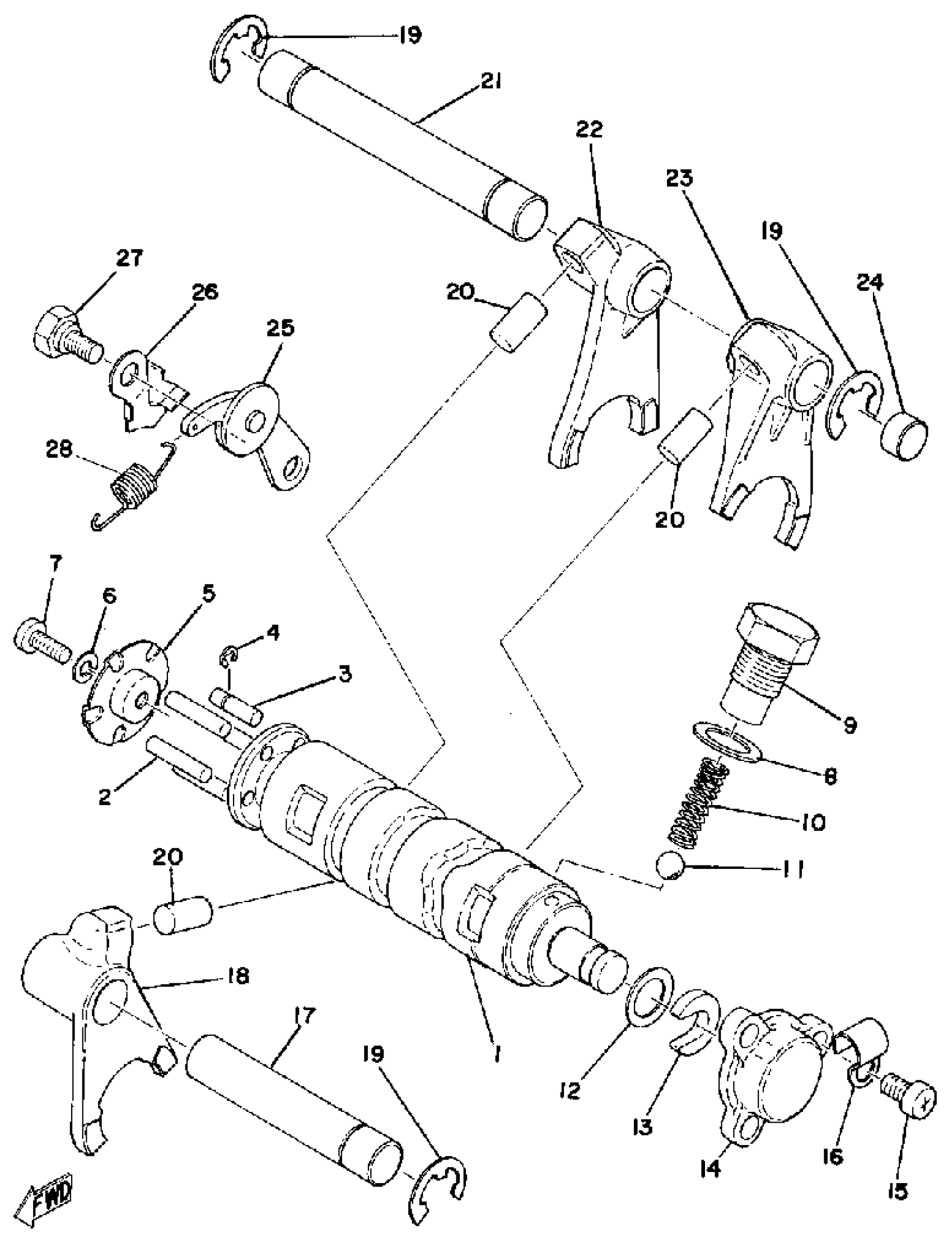

1975 Yamaha RS100 (RS100B) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

315-18540-00-00

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

4

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

5

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

8

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

9

BOLT

90109-14385-00

1

$13.66

In stock

10

SPRING, COMPRESSION (465)

90501-10353-00

1

$6.86

In stock

11

BALL

93505-16006-00

1

$2.22

In stock

12

WASHER PLATE 164185720000

90201-12166-00

1

$6.29

In stock

13

HOLDER, SHIFT CAM

164-18571-01-00

1

$8.28

In stock

14

PLUG, BLIND SHIFT CAM

164-18589-00-00

—

$7.83

In stock

15

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

16

CLAMP

(90462-05012-00)

1
Out of stock

17

BAR, SHIF FRK GDE 1

(248-18531-00-00)

1
Out of stock

18

FORK, SHIFT 2

463-18512-00-00

—
Out of stock

19

CIRCLIP

99006-10600-00

—

$6.91

In stock

20

PIN, STRAIGHT

90250-08017-00

1
Out of stock

21

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

22

FORK, SHIFT 3

463-18513-00-00

—

$34.14

In stock

23

FORK, SHIFT 1

463-18511-00-00

—

$34.26

In stock

24

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

25

STOPPER LEVER ASSY

132-18140-01-00

—

$14.20

In stock

26

COVER

(463-15492-00-00)

1
Out of stock

27

BOLT

90109-06239-00

—

$5.77

In stock

28

SPRING, TENSION

(90506-09013-00)

1
Out of stock
