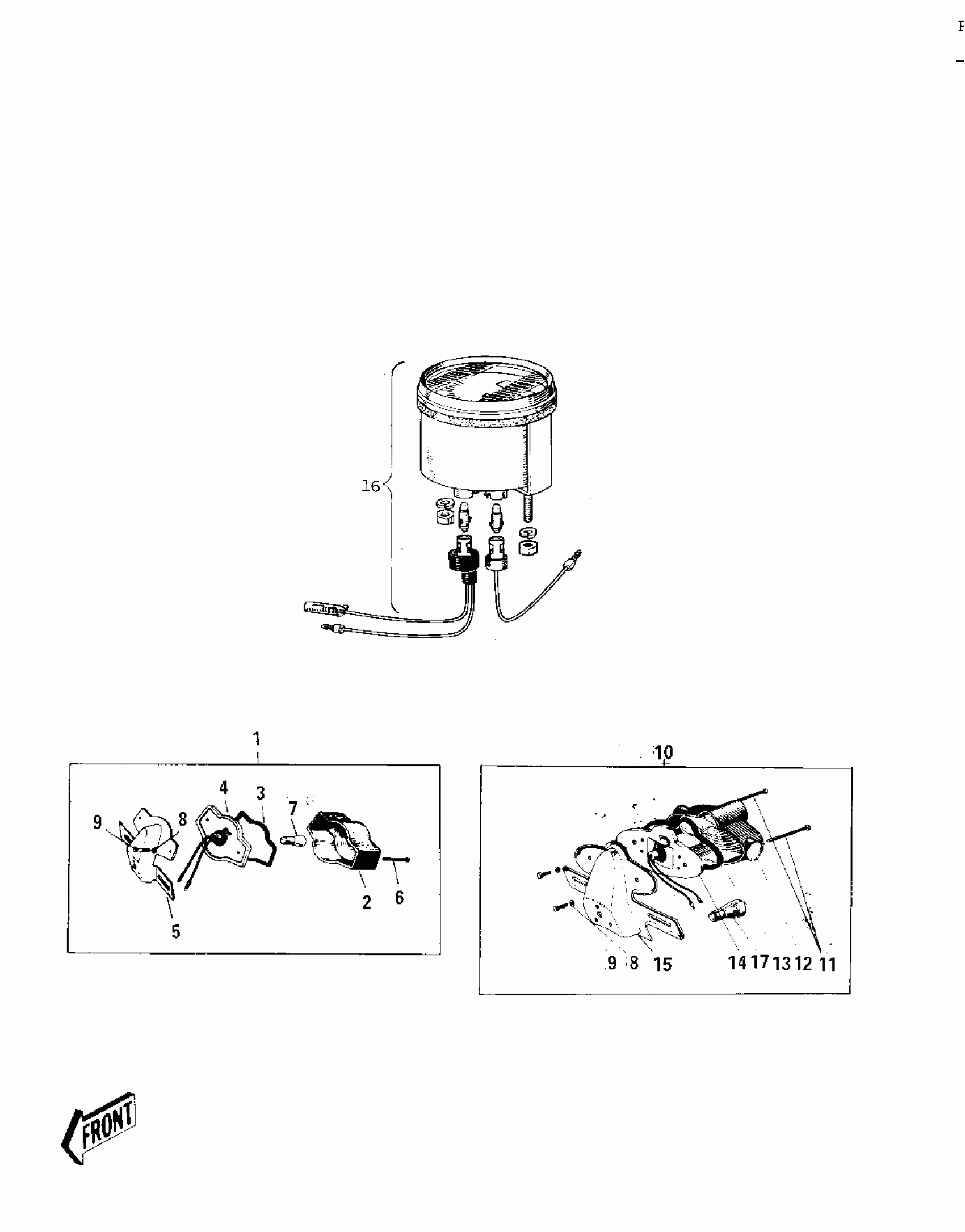

Kawasaki Roadrunner METER/TAILLIGHT Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

23025-026

Unavailable

2

LENS TAIL LAMP

23026-017

Unavailable

3

GASKET TAIL LAMP LENS

23028-007

$4.76

4

SOCKET TAIL LAMP

23027-012

Unavailable

5

BKT LICENSE PLT

23036-003

Unavailable

6

SCREW OVL CNTSNK 3X60

222E0360

$3.12

6

SCREW OVL CNTSNK 3X60

222E0360A

$2.49

7

BULB 6V 3/21CP

92069-023

Unavailable

8

WASHER SPRING 5MM

461F0500

Unavailable

9

BOLT HEX HEAD 5X10

110N0510

Unavailable

10

LAMP ASSY-TAIL,BLACK

23024-019-21

Unavailable

11

SCREW PAN HEAD 4X50

220E0450

$5.37

11

SCREW PAN HEAD 4X50

220E0450

$5.37

12

LENS TAIL LAMP

23026-010

Unavailable

13

GASKET TAIL LAMP

23028-008

Unavailable

14

SOCKET TAIL LAMP

23027-009

Unavailable

15

BKT LICENSE PLT

23036-002

Unavailable

16

SPEEDOMETER ASSY MPH

25005-019

Unavailable

16

UNAVAILABLE IN PRICE BOOK

25005-018

Unavailable

17

BULB 6V 1.5W

92069-022

$3.14
