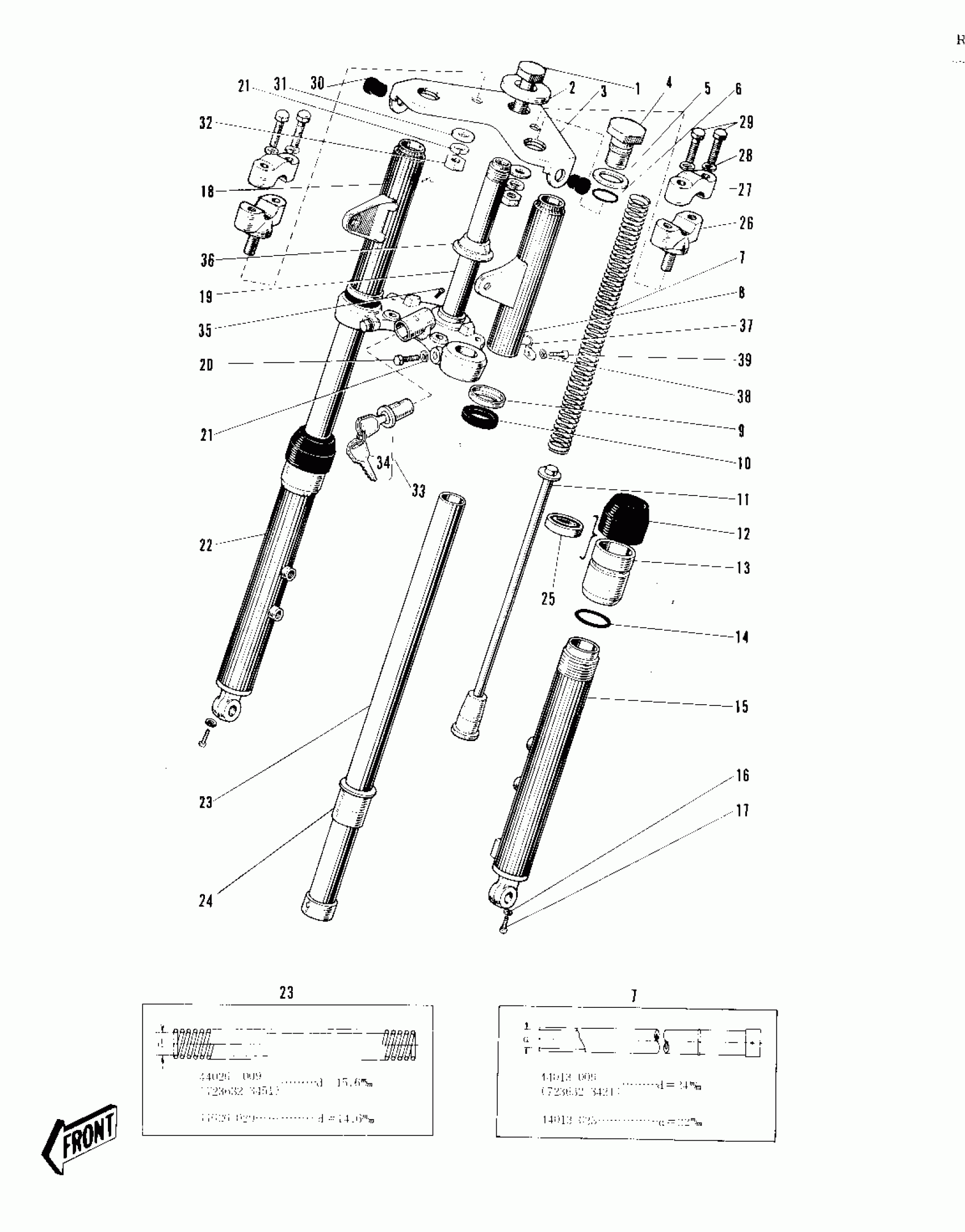

Kawasaki Roadrunner FRONT FORK ('69 MODEL) Diagram

#

Description
Price

1~25

FRONT FORK ASSY

44001-026

Unavailable

1~25

FORK-FRONT,BLACK

44001-071-21

$492.14

1

BOLT STRNG STEM HEAD

44041-007

Unavailable

2

WASHER STRNG STEM HD

44043-016

$10.56

3

HEAD STEERING STEM

44039-012

$56.46

4

BOLT FORK TOP

44041-016

$19.41

4

BOLT FORK TOP

44041-022

$20.44

5

WASHER FORK TOP

44043-014

$2.19

6

'O' RING INNER TUBE

44046-014

Unavailable

7

SPRING-FORK

44026-029

Unavailable

7

SPRING-FORK

44026-029

Unavailable

8

COVER L.H FORK

44033-012

$29.39

9

WASHER FORK COVER

44043-015

$4.29

10

GASKET FORK COVER

44045-012

Unavailable

11

HOLDER FORK SPRING

44028-008

$22.85

12

DUST SHIELD FORK

44010-006

Unavailable

13

NUT FORK OUTER TUBE

44007-007

$59.80

14

'O' RING OUTER TUBE

44046-012

Unavailable

15

TUBE,LH,FORK OUTER

44005-009

$66.92

16

GASKET,FORK DRAIN PLUG

44045-002

$3.95

17

SCREW PAN HEAD 4X8

220B0408

Unavailable

17

SCREW PAN HEAD 4X8

220B0408

Unavailable

18

COVER R.H FORK

44034-011

$31.71

19

STEM STEERING

44037-019

$104.41

20

BOLT HEX HEAD 10X32

113B1032

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

22

TUBE,RH,FORK OUTER

44006-007

$74.41

23

TUBE FORK INNER

44013-009

$74.41

23

TUBE-INNER

44013-029

$114.64

23

TUBE-INNER

44013-029

$114.64

24

GUIDE FORK INNER TUBE

44015-009

$5.56

25

OIL SEAL

92049-1049

$17.15

26

HOLDER LOWER HANDLBAR

46010-002

$6.36

27

HOLDER-HANDLE,UPP

46012-004

Unavailable

28

WASHER SPRING 8MM

461F0800

Unavailable

29

BOLT 8X38

92001-1405

$12.52

30

PLUG RUBBER

92074-005

Unavailable

31

WASHER HANDLE HOLDER

92022-038

$0.59

32

NUT-HEX-FINE,10MM

314B1000

Unavailable

33

LOCK ASSY STEERING

27016-009

Unavailable

34

KEY SET STRNG NO.281

27018-004-81

$7.17

34

KEY SET STRNG NO.282

27018-004-82

$7.10

34

KEY SET STRNG NO.283

27018-004-83

$7.10

34

KEY SET STRNG NO.284

27018-004-84

$7.17

34

KEY SET STRNG NO.285

27018-004-85

$7.10

35

RIVET

92099-001

$3.51

36

RACE,LOWER BEARING

92047-004

Unavailable

37

CLAMP CABLE

92037-016

Unavailable

38

WASHER SPRING 6MM

461F0600

Unavailable

39

SCREW PAN HEAD 6X12

220B0612

Unavailable
